150W LED Beam Wash Fresnel Moving Head

Model

AL150CZ

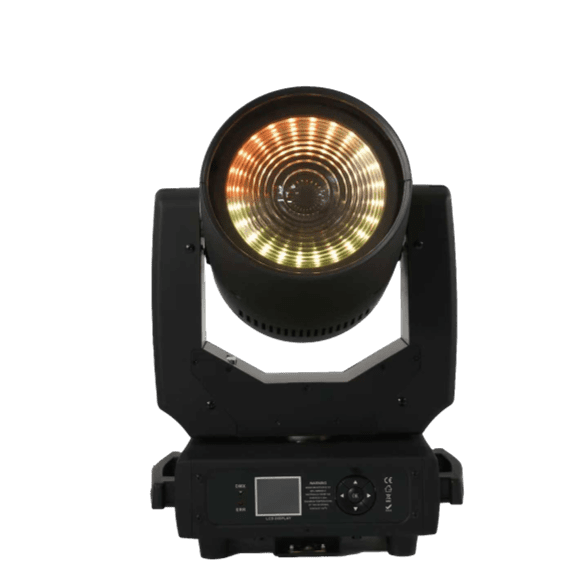

AL150CZ is a high-performance 150W LED Beam Wash Fresnel moving head with RGBL LED source and 24 RGB ring LEDs. Designed for powerful washes and precise beam shaping, perfect for stage, concert, and studio.

Technical Specifications

Function Highlights

Application Scenarios

Packaging Options

Product Details:

🛠️ Technical Specifications

Specification	Value
Model	AL150CZ
Input Voltage	AC100–240V, 50/60Hz
Power Consumption	150W
Light Source	1x 120W RGBL LED + 24x 0.1W RGB ring LEDs
Beam Angle (Zoom Range)	4° – 48°
Pan/Tilt Range	540° / 220° (16-bit electric correction)
Dimming	0–100% Electronic Dimmer
Shutter/Strobe	0–20Hz Electronic Shutter
Channel Modes	20CH / 36CH / 108CH
Display	LCD Display
Control Protocol	DMX512 (5-pin In/Out)
Power Connector	Power Twist In/Out
Protection Rating	IP20 (Indoor Use)
Net Weight	8 kg
Gross Weight	9 kg

💡 Function Highlights

RGBL LED Core: Rich, saturated colors with Lime for high CRI and natural tones
Ring Frost Effect: 24x RGB LEDs surrounding the core for ambient color effects
Wide Zoom Range: Smooth 4° narrow beam to 48° wide wash for versatile coverage
Multi-Channel Control: Supports 20/36/108 channel modes for precise programming
Ultra-Fast Pan/Tilt: Ideal for live scenes requiring quick repositioning

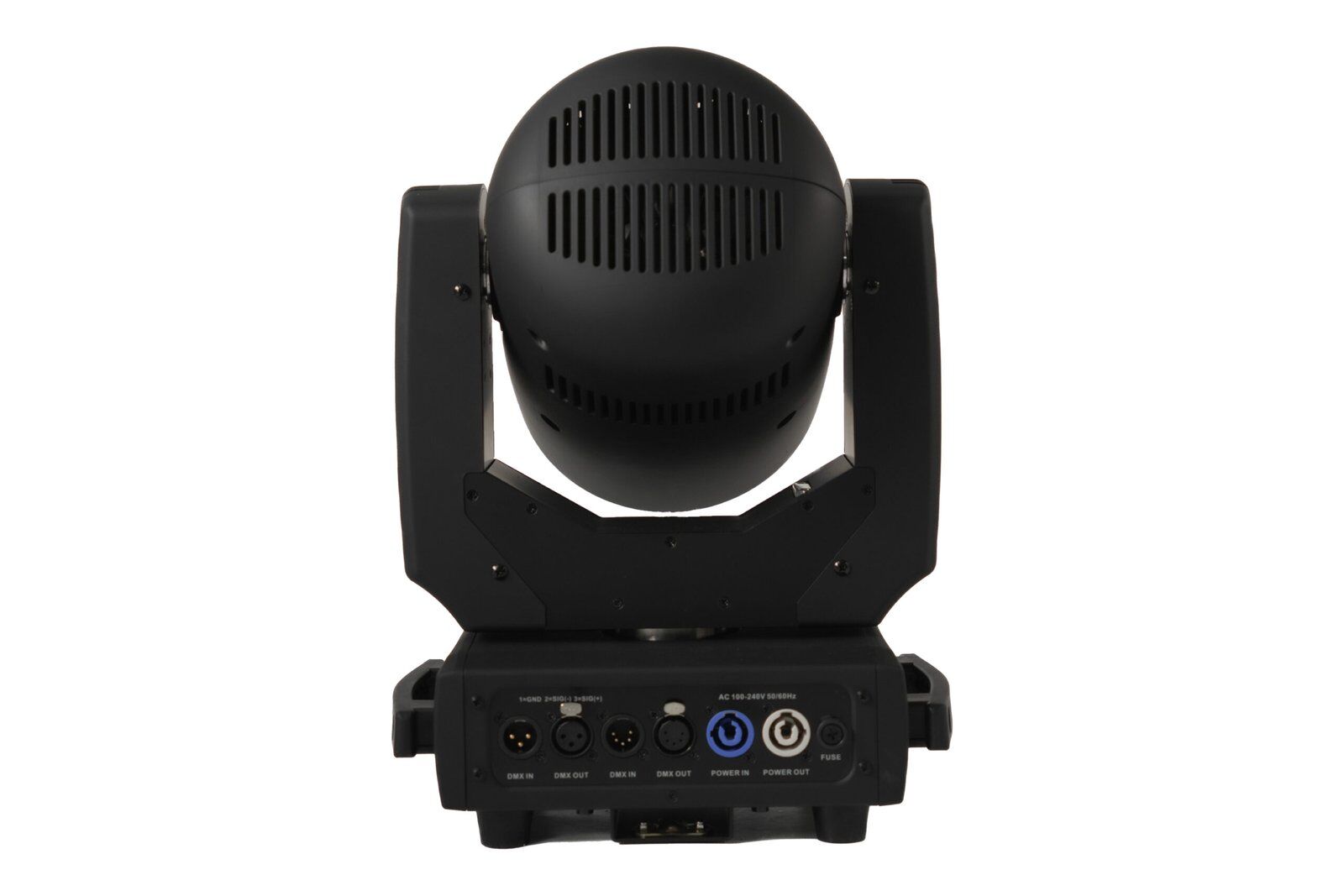

PowerCon & 5-pin DMX: Professional-grade connections for stable, tour-ready use
LCD User Interface: Simple menu navigation with backlit display
High-Quality Dimming: Flicker-free and linear control for film/stage compatibility

🎯 Application Scenarios

The Aolait AL150CZ is a compact and versatile 150W LED Beam Wash Fresnel Moving Head featuring a powerful 120W RGBL LED core and 24x 5050 RGB LEDs for captivating ring frost effects. With 4°–48° motorized zoom, fast pan/tilt, and multi-channel DMX control, it delivers precision and creativity in live productions, theater, and professional event lighting.

Concert & Touring:
Narrow beam for punchy effects or wide wash for vibrant color coverage across the stage.

Theater & Performance Halls:
Smooth Fresnel wash and RGB frost effects enhance drama and ambiance.

TV & Broadcast Studios:
High CRI from RGBL source ensures natural skin tones and excellent camera rendering.

Churches & Worship Spaces:
Quiet operation and rich color enhance worship settings and seasonal events.

Event Production & Rentals:
Lightweight, versatile fixture perfect for multi-purpose event lighting setups.

📦 Packaging Options

Carton 1 in 1: 52x36x29 GW: 11KG

Flight case 4 in1: 76x45x65 GW:65kgs
