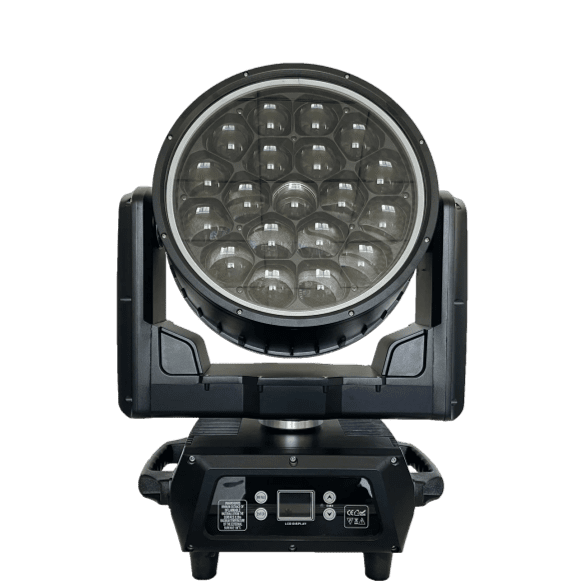

19x40W LED Moving Head Wash IP65 Waterproof – Outdoor Pixel Wash Light

Model

AL1940WP

19X40W Led wash moving head IP65 is a brand-new wash moving head light waterproof. With the outstanding sealing and ventilation system, it performs with excellence for outdoor wash, like the park and cutural tourism spots and any outdoor events.

Technical Specifications

Function Highlights

Application Scenarios

Packaging Options

Product Details:

🛠️ Technical Specifications

Specification	Details
Model	AL4019WP
Input Voltage	AC100V~240V, 50/60Hz
Rated Power	760W
LED Source	19×40W RGBW 4-in-1 High Power LEDs
Zoom Range	7° – 50° Motorized Zoom
Strobe	0–25Hz Electronic Strobe
Control Modes	DMX512, Sound-activated, Master/Slave
DMX Channels	22/26/36/43/78/119 Channel Modes
Dimmer	0–100% Linear (4 dimmer curves)
Pan/Tilt	540° / 250° + 16-bit fine adjustment
Display	LCD Touch Screen
Protection Rating	IP65 (Waterproof for Outdoor Use)
Fixture Dimensions	434×260×577 mm
Net Weight	22 kg

💡 Function Highlights

- Individual LED Pixel Control
  Full pixel mapping with 19 independently controlled LEDs for advanced visual programming.

- Rotating Front Lens (Infinite Rotation)
  Unique bidirectional rotating lens delivers dynamic kaleido and vortex effects.

- Beam + Wash + Kaleido Effects
  Combines tight beam, wide wash, and artistic visual modes into one fixture.

- Halo Ring Effects
  Built-in halo rings create eye-catching candy effects with macro control options.

- Weatherproof Design (IP65)
  Engineered with die-cast aluminum housing to withstand rain, dust, and harsh outdoor environments.

- Wide Zoom (7°–50°)
  From narrow beam to wide wash, covers small to large areas with even color wash.

🎯 Application Scenarios

Aolait AL4019WP is a professional-grade 19x40W LED moving head wash light designed for outdoor use with full IP65 waterproof protection. Featuring individually controllable pixels, infinite rotating lens, and powerful zoom from 7° to 50°, it delivers stunning beam, wash, and kaleido effects — perfect for concerts, festivals, architectural lighting, and permanent installations.

- Outdoor Music Festivals
  Powerful beam and effect lighting for dynamic stage impact in open-air environments.

- Architectural Lighting
  Illuminate buildings, monuments, and structures with color washes and movement.

- Theme Parks & Public Spaces
  Add animated lighting elements that withstand rain and environmental challenges.

- Touring & Rental Events
  A flexible wash/beam hybrid for lighting designers needing durability and high performance.

- Churches & Worship Events (Outdoor)
  Wash large outdoor stages or create immersive atmospheres for spiritual gatherings.

📦 Packaging Options

Carton 1 in 1: 61x53x54cm 26kgs
