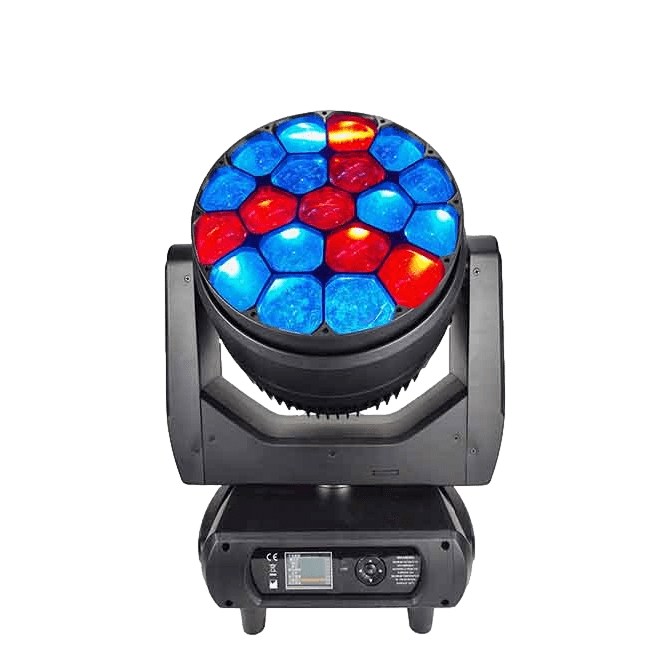

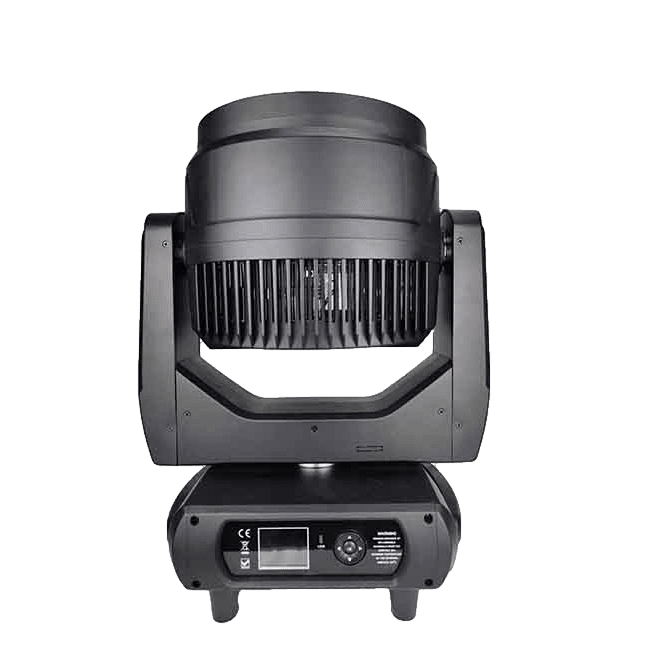

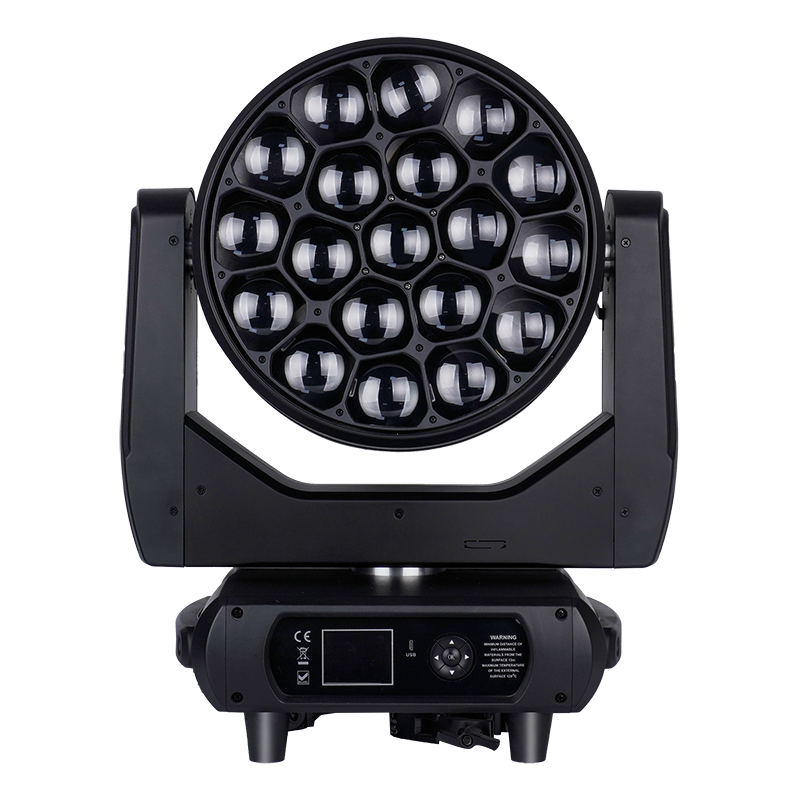

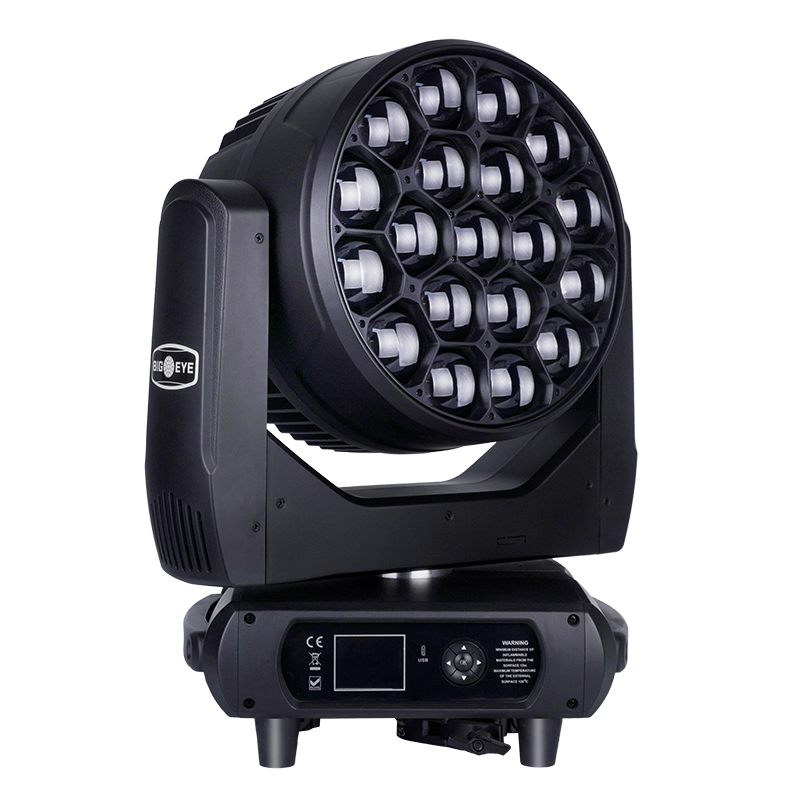

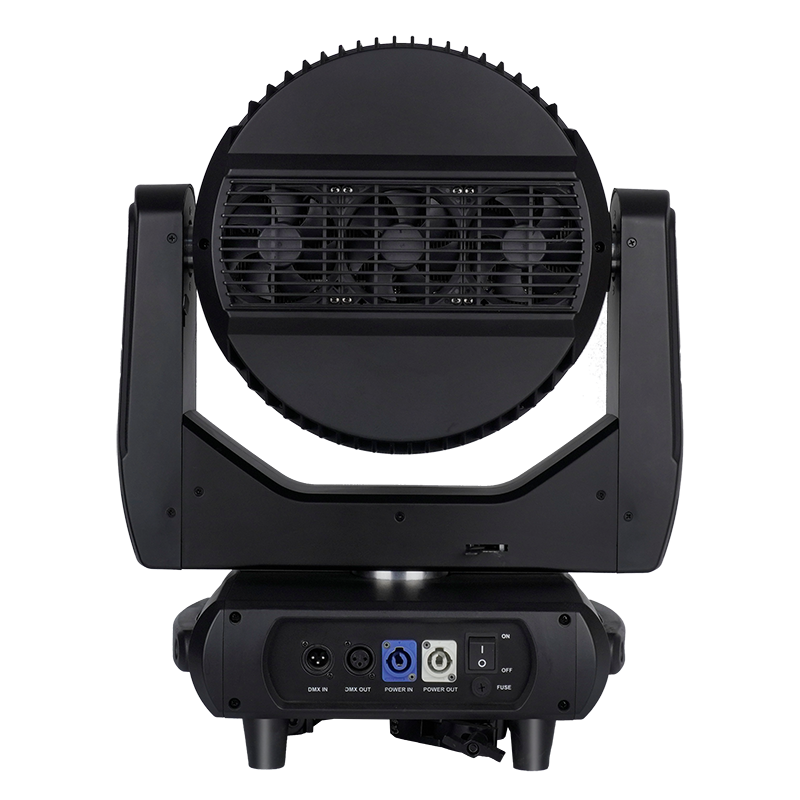

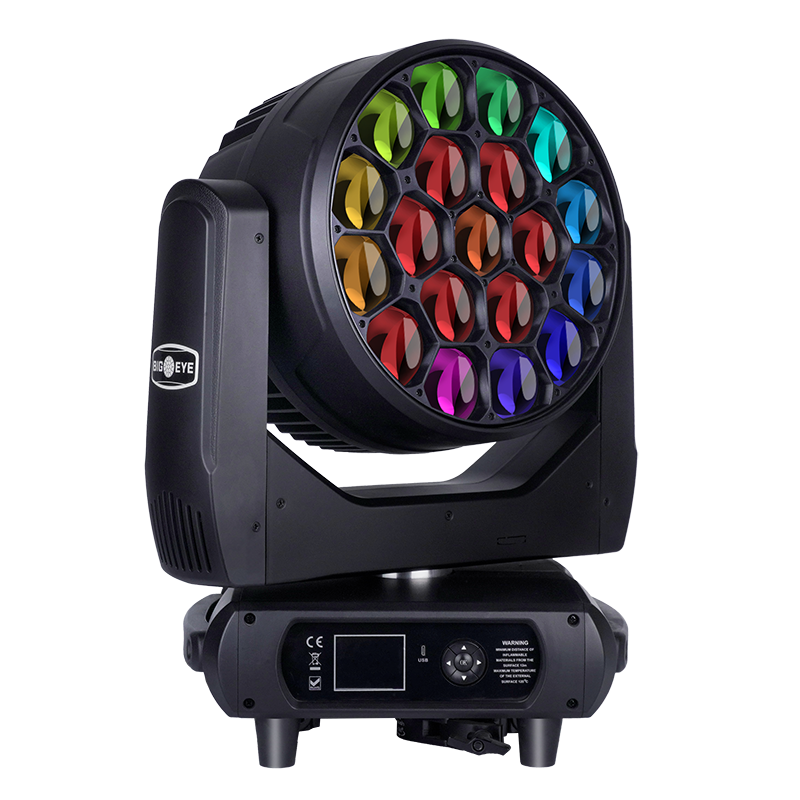

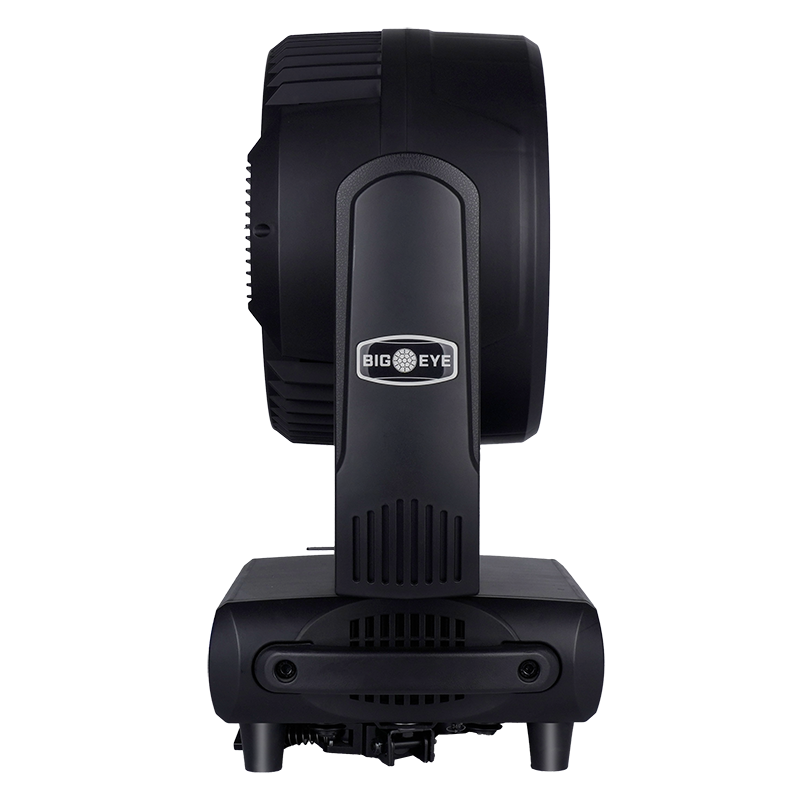

19x60W LED Bee Eye Moving Head Wash Zoom

19x60w led bee eye moving head wash zoom
19x60w led bee eye moving head wash zoom
Category Tags , , , , , ,
Model
AL1960WR

Experience advanced lighting with Aolait’s 19x60W LED Bee Eye Moving Head Wash Zoom with pixel control and infinite rotating lens for dynamic lighting effects.

GET A QUOTE
USER MANUAL

Technical Specifications

Function Highlights

Application Scenarios

Packaging Options

Product Details:

🛠️ Technical Specifications

Specification Value
Model AL1960WR
Voltage AC100V–240V, 50–60Hz
Rated Power 1350W
LED Source 19 × 60W high-power RGBW 4-in-1 LEDs
Beam Angle (Zoom) 11°–55° motorized zoom
Strobe 0–25Hz
Control Modes DMX512 / Sound Active / Master-Slave
DMX Channels 21 / 35 / 78 / 92 / 97 channels
Dimmer 0–100% linear with 4 dimmer curves
Pan / Tilt 540° / 220° + 16-bit fine control
Display LCD display with touch buttons
IP Rating IP20 (Indoor use)
Fixture Size 465 × 300 × 510 mm
Net Weight 21.4 kg

💡 Function Highlights

    • Pixel Control: Each of the 19 LEDs can be controlled individually for custom effects.

    • Infinite Lens Rotation: The front honeycomb lens can rotate endlessly in both directions for stunning visual effects.

    • Multifunctional Use: Supports beam, wash, and dynamic flower effects.

    • Advanced Dimming: Four dimming curves (linear, square, inverse square, S-curve) for smooth fades.

    • Smart Display: LCD with auto-rotating function for inverted installations.

    • Overheat Protection: Integrated fan with thermal auto-shutdown safeguards the fixture from overheating.

    • Auto Position Memory: Automatically repositions pan/tilt to correct if manually disturbed.

🎯 Application Scenarios

Aolait’s AL1960WR is a powerful 19x60W RGBW 4-in-1 LED Bee Eye Moving Head Wash Zoom Light. Engineered for dynamic beam, wash, and mesmerizing pixel effects, it offers full LED pixel control, infinite lens rotation, and a wide zoom range (11°–55°). Perfect for professional stage lighting, clubs, concerts, and TV productions.

    • Concert & Tour Stages: Eye-catching beams and pixel FX synced with music.

    • DJ & Club Lighting: Adds movement, rhythm-reactive wash, and color chasing effects.

    • TV Studios & Theatre: Pixel mapping, wide-angle wash, and silent operation in controlled environments.

    • Event & Wedding Venues: Elegant color wash or dramatic rotating lens visuals.

    • Houses of Worship: Quiet, artistic wash lighting with custom pattern control.

📦 Packaging Options

Carton 1 in ：62x57x49 ㎝ GW 25.5kgs

Flight case 2 in 1: 78x52x79 ㎝ GW: 75kgs
