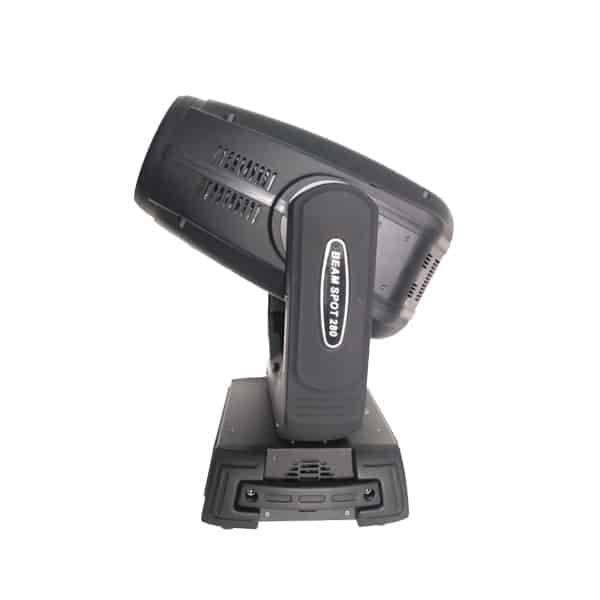

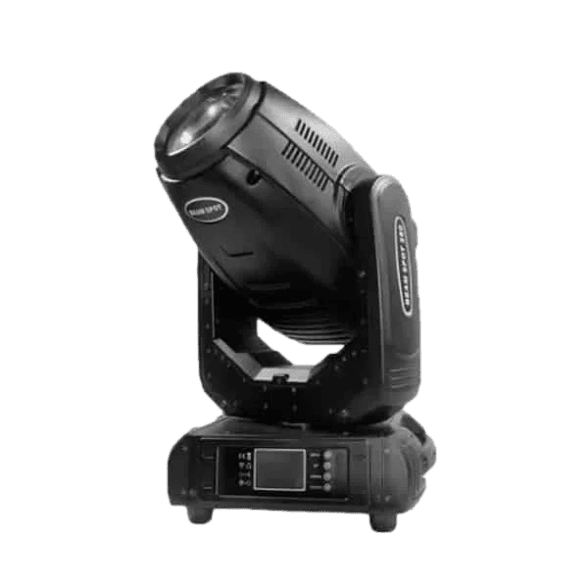

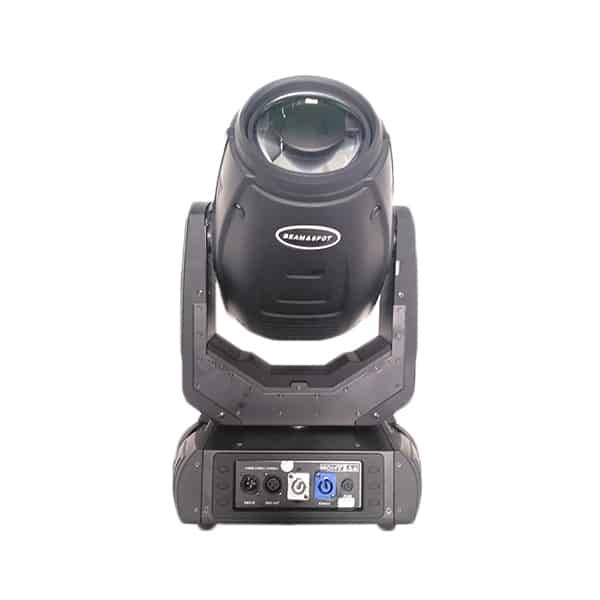

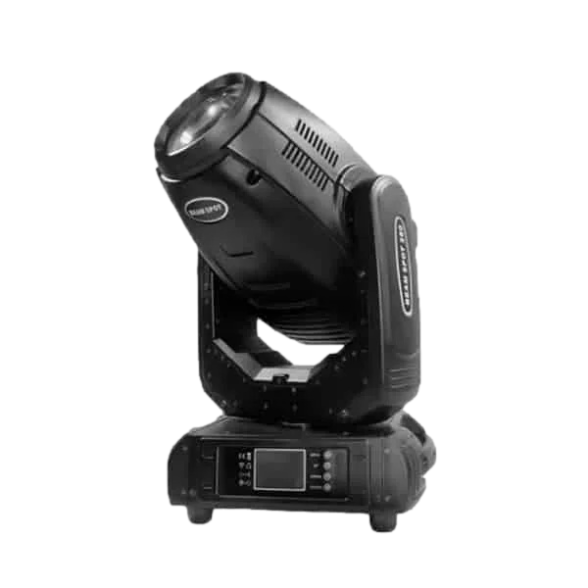

The AL280RX is a professional 280W hybrid moving head that delivers beam, spot, and wash effects in one unit. Powered by Osram, built for performance.
| Specification | Value |
|---|---|
| Voltage | AC100–240V, 50/60Hz |
| Power Consumption | 420W |
| Light Source | Philips 280W Lamp |
| Lifespan | 50,000 Hours |
| Color Temperature | 8000K |
| Color Wheel | 1 Wheel with 13 Color Chips |
| Fixed Gobo Wheel | 14 Gobos + Open |
| Rotating Gobo Wheel | 9 Gobos + Open |
| Prisms | 8-Facet & 6-Facet, Bi-directional Rotation |
| Beam Angle | 3.8° to 25° |
| Dimmer | 0–100% Mechanical + Free Dimming |
| Pan/Tilt | Pan 540°, Tilt 270° (Speed Adjustable) |
| Control Protocol | DMX512 |
| DMX Channel Modes | 16CH / 24CH |
| Effects | Strobe Macro, Overheat Protection |
| IP Rating | IP20 (Indoor Use) |
| Dimensions | 523 × 337 × 570 mm |
| Net Weight | 20 kg |
3-in-1 Versatility: Combines Beam (tight 3.8°), Spot (crisp projection), and Wash (soft edge) in one fixture.
High-Performance Light Engine: Equipped with a powerful Philips 280W lamp and 8000K output for vivid beams and gobos.
Dual Gobo Wheels: Includes fixed and rotating gobos for endless morphing patterns and logo projection.
Dual Rotating Prisms: 8-facet and 6-facet prisms create rich aerial effects with forward and reverse rotation.
Advanced Dimming & Strobe: Supports both mechanical and free dimming, plus macro strobe functions.
Flexible Movement: High-speed and smooth pan (540°) and tilt (270°) with adjustable speed for precise positioning.
Reliable & Durable: Overheat protection and optimized airflow system for long-term reliability.
Aolait AL280RX is a professional 3-in-1 hybrid moving head light that combines beam, spot, and wash functions in one compact fixture. Featuring an Philips 280W lamp, dual gobo wheels, dual rotating prisms, and DMX512 control, it delivers stunning effects for concerts, churches, clubs, and stage productions.
Concerts & Touring Events: Sharp beams and aerial effects enhance stage dynamics.
Worship Spaces: Versatile color and gobo projection for immersive church lighting.
Nightclubs & DJs: Prism rotation and macro strobe elevate dancefloor experiences.
Theater Productions: Dual gobo wheels for textured projection and spotlighting.
Corporate Events & Weddings: Elegant beam and wash effects for large venues and celebrations.
