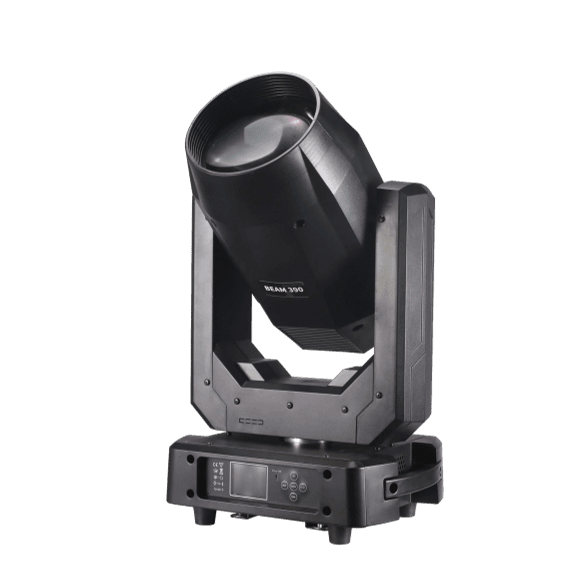

Aolait AL390B is a 390W beam moving head light designed for stage professionals. Featuring an Ushio 390W lamp, ultra-narrow 0–1.8° beam, glass optics, and dual prism wheels, it’s built for stunning aerial effects and touring reliability.
| Specification | Details |
|---|---|
| Voltage | AC100–240V, 50/60Hz |
| Power Consumption | 600W |
| Light Source | Ushio 390W Lamp |
| Color Temperature | 7500K |
| Ballast | Electronic |
| Control Protocols | DMX512 / RDM / Master-Slave |
| DMX Channels | 16CH / 18CH |
| Color Wheel | 14 Colors + Open, Semi-Color |
| Rainbow Wheel | 7 Colors, Rainbow Effect |
| Gobo Wheel | 17 Gobos + Open |
| Prism Wheel | 2 Rotating Prisms (can overlap) |
| Beam Angle | 0–1.8° Ultra-Narrow |
| Optics | Glass Optics, 160mm Front Lens |
| Focus | Motorized Electronic Focus |
| Frost Filter | Yes |
| Strobe | 0.5–12/sec, Variable Effects |
| Pan / Tilt | Pan: 540°, Tilt: 252°, 8/16-bit Precision |
| Display | LCD – Bilingual (Chinese / English) |
| IP Rating | IP20 (Indoor Use) |
| Dimensions (LxWxH) | 341 × 260 × 581 mm |
| Net Weight | 16.5 kg |
Ultra-Narrow 0–1.8° Beam: Cuts through haze for powerful aerial effects.
Double Prism Wheel System: Overlapping prisms deliver intense mid-air multi-beam effects.
High-Efficiency Ushio Lamp: Bright 390W source with crisp 7500K color temperature.
14-Color + Rainbow FX: Create fast, vivid transitions and sweeping motion.
17 Fixed Gobos: Project sharp patterns with rich texture and contrast.
DMX & RDM Control: Compatible with professional control systems for easy integration.
Precision Pan/Tilt: Fast movement with 8/16-bit fine adjustment and auto-position correction.
Overheat Protection: Ensures longevity and reliable operation even under demanding show environments.
The Aolait AL390B is a high-performance 390W Beam Moving Head Light equipped with a Ushio 390W lamp, dual rotating prism wheels, and an ultra-narrow 0–1.8° beam angle. Engineered for high-energy concerts, clubs, and touring productions, it delivers extreme beam sharpness and advanced DMX control in a compact, rugged build.
Concert Stages & Festivals
Deliver cutting, tight beams with dynamic motion and layered effects in large venues.
Nightclubs & Live Events
Create stunning mid-air prism and gobo effects synced to music for high-energy environments.
Worship & Church Events
Support immersive worship lighting designs with fast focus and accurate beam shaping.
Theater & Touring Productions
Compact body and strong light make it ideal for rentals, live shows, and touring rigs.
DJ Booths & Mobile Productions
Perfect for professionals who need a compact yet impactful beam solution.
