480W Led Beam Spot Wash Moving Head CMY

Category Led Spot Moving Head Tags Beam Spot Wash, Church Lighting, CMY Color Mixing, Concert Lighting, DMX moving head, LED Moving Head, RDM Lighting, Stage Light

Model

AL480LS

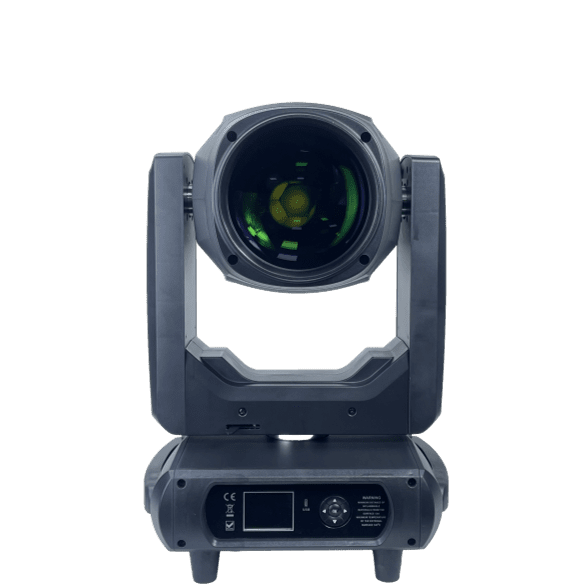

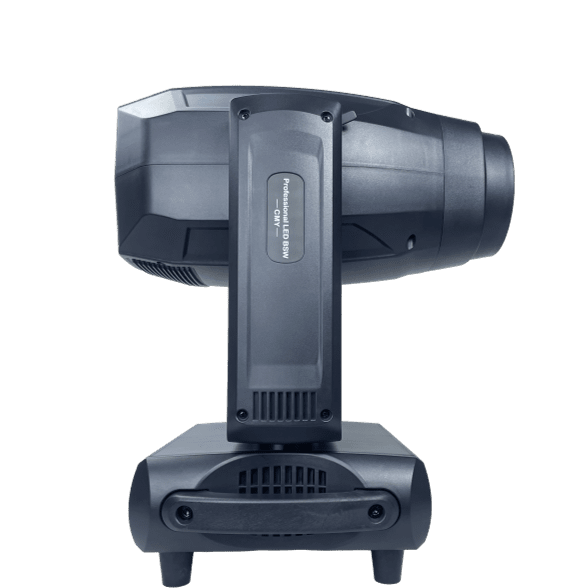

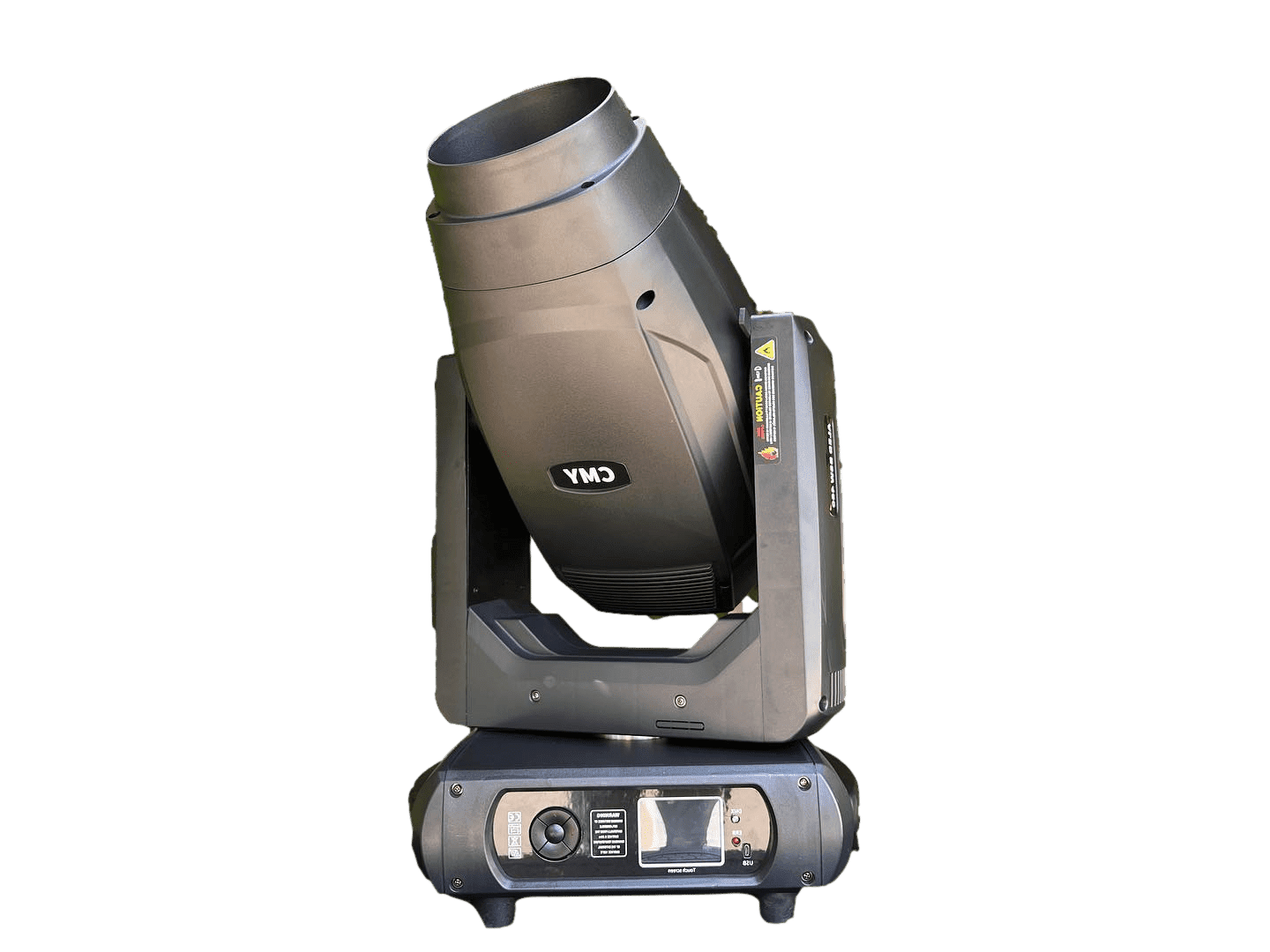

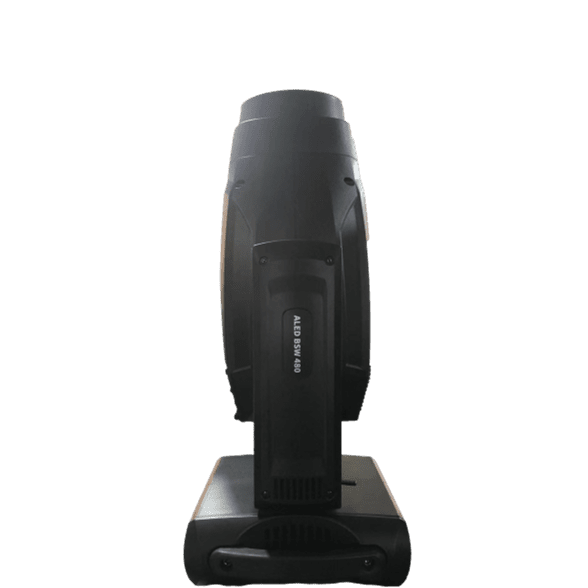

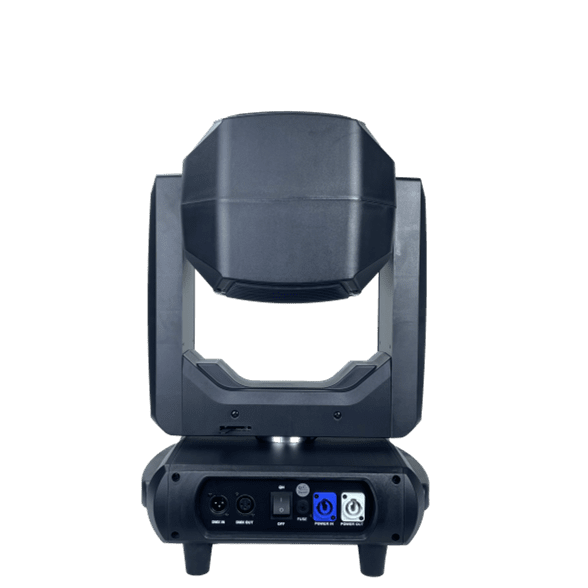

AL480LS is a 480W LED Beam Spot Wash Moving Head ,High-intensity hybrid illumination for stadiums, festivals, and immersive productions. Enhanced CMY mixing, 16-bit movement accuracy, and IP-rated protection. Built for extreme brightness demands in touring rigs and outdoor events.

Technical Specifications

Function Highlights

Application Scenarios

Packaging Options

Product Details:

🛠️ Technical Specifications

Specification	Value
Input Voltage	AC110–240V, 50/60Hz
Power Consumption	500W
Light Source	400W Imported LED Module Engine
Light Source Life	50,000 hours
Luminous Output	100,000 lm @ 5m
Color Temperature	8000K
CRI	>85
Dimming	0–100% Linear
Zoom Range (Spot)	4°–35°
Zoom Range (Wash)	10°–50°
Focus	Motorized linear (4m–50m)
Frost	1 Independent Frost Filter
Strobe	0–30Hz with adjustable macros
Channel Modes	22 / 26 channels
Display	LCD with Touch + Keypad
Control Protocols	DMX512, RDM, Address Code Dialing
Color System	8 colors + open, Half-color function
CMY+CTO Mixing	Yes, full linear
Fixed Gobos	11 + open
Rotating Gobos	8 rotatable glass patterns, bidirectional
Prisms	3-Facet + 8-Facet, Independently Rotating
Pan	540° (16-bit)
Tilt	270° (16-bit)
Cooling	Axial fan + electronic thermal control
Protection	Overheat & power-off safety system
Housing	Heat-resistant engineering plastic
IP Rating	IP20 (Indoor Use)
Operating Temp	-20°C to 40°C
Fixture Size	36×29×66 cm (L×W×H)
Net Weight	22.5 kg
Special Functions	USB-powered address & parameter config

💡 Function Highlights

CMY + CTO Linear Color Mixing: Smooth color fades and vibrant dynamic color transitions.

Dual Zoom Ranges: Adjustable beam and wash modes from tight 4° to wide 50° coverage.

Rotating & Static Gobos: Includes 8 rotating glass gobos and 11 static gobos for versatile projection effects.

Dual Prism System: Two individually rotatable prisms (3-facet & 8-facet) for immersive multi-beam effects.

Precise 16-bit Movement: Quiet and accurate pan/tilt for refined stage cues.

Strobe Macro Effects: High-speed adjustable strobe effects with built-in macros.

Advanced Cooling & Protection: Intelligent temperature monitoring and auto shut-off safety.

RDM Remote Control: Supports fixture address and status management via RDM.

Mobile USB Configuration: Easily modify fixture parameters even without DMX controller.

🎯 Application Scenarios

Aolait’s 480W LED Beam Spot Wash Moving Head delivers professional-grade performance with advanced CMY+CTO color mixing, dual prisms, sharp optics, and precision DMX/RDM control. Ideal for concerts, theaters, churches, and live events.

Concert & Touring Events:
Deliver high-impact aerial effects, crisp gobos, and multi-beam visuals on big stages.

Theater & Studio Lighting:
Soft edge wash, quiet motor, and color mixing make it ideal for theatrical performance and studio sets.

Nightclubs & DJs:
Add dynamic movement, rotating gobos, and prism bursts to energize dance floors.

Church Productions:
Soft frost wash and high CRI lighting are perfect for sermons, drama, and worship stage lighting.

Corporate & Rental Events:
Easy control, reliable cooling, and multi-function versatility make it a rental favorite.

📦 Packaging Options

Weight (with packaging): Approx. 26.5 kg

Standard Carton Dimensions: 45×43×75 cm
