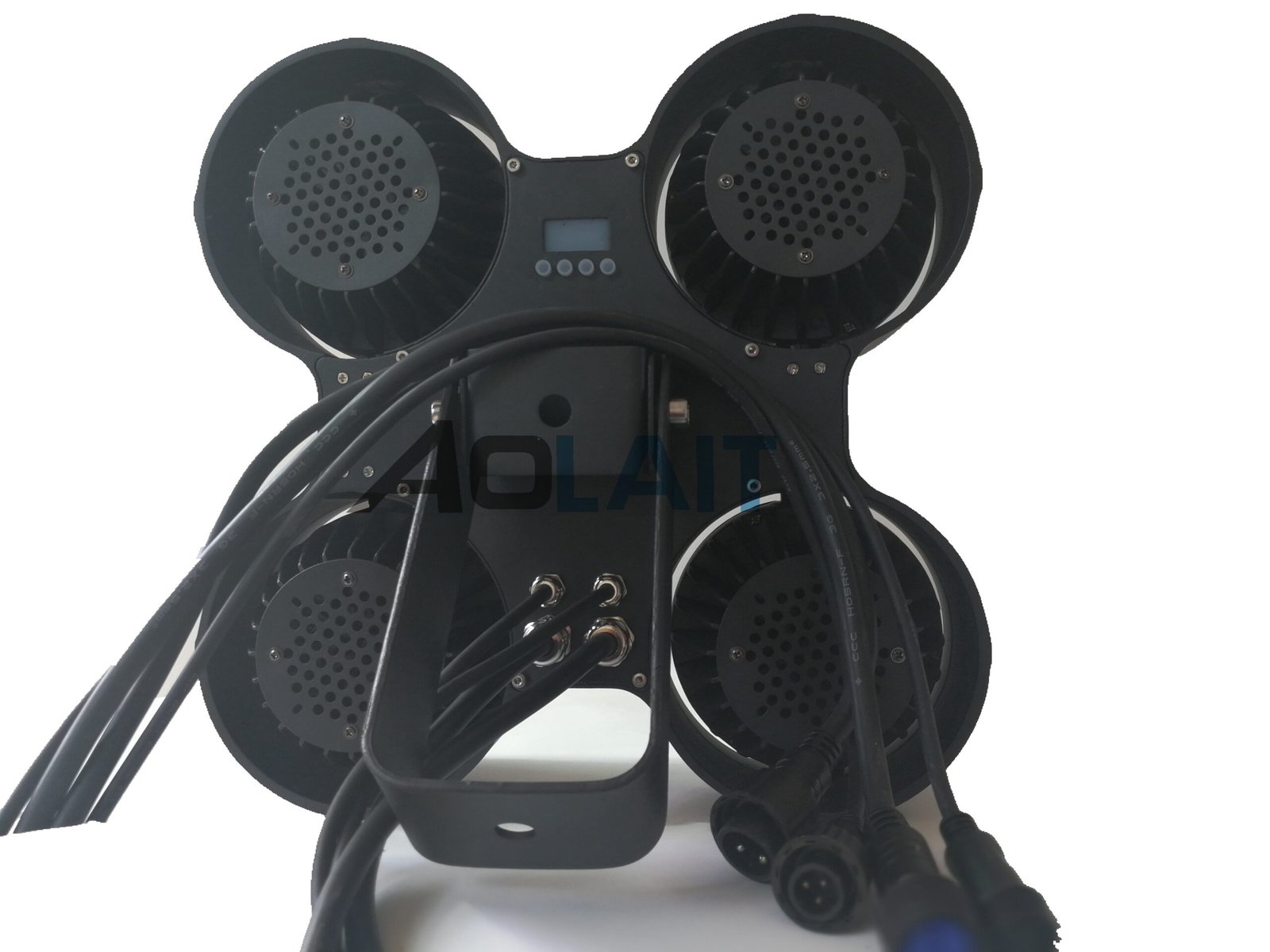

4x100W LED Blinder Light IP55 Waterproof

Model
AL1004LB

The AL1004LB is a high-power 4x100W COB LED blinder light with IP65 waterproof protection, selectable color temperatures, DMX512 control, and single-point LED control for precise and dynamic lighting.

Product Details:

🛠️ Technical Specifications

Specification Value
Model AL1004LB
Voltage AC100–240V, 50/60Hz
Power Consumption 450W
Light Source 4 × 100W COB LEDs (2800K / 3200K / 6500K / dual options)
Color Temperature 2800K default (others optional)
Beam Angle 45°
LED Lifespan 50,000 hours
Dimming 0–100% linear dimmer
Strobe 0–20Hz
Control Modes DMX512, Master/Slave, Auto
DMX Channel Modes 2 / 6 / 12 channels
LED Control Single point single control
Housing Material Cast aluminum body
Display LED digital display
IP Rating IP65 (water-resistant and dust-protected)
Product Size 370 × 370 × 270 mm
Net Weight 11 kg

💡 Function Highlights

  • 4x High-Power COB Modules: Four 100W LED units with stackable configurations and selectable color temps (2800K, 3200K, 6500K, dual).

  • IP65-Rated for Outdoor Use: Dust-proof and water-resistant for flexible outdoor deployment.

  • Precise Control: Supports DMX512 (2/6/12ch), master/slave, and auto modes for integration into any lighting setup.

  • Smooth Dimming & Strobe: Linear 0–100% dimming and fast 0–20Hz strobe for energetic or subtle effects.

  • Independent LED Control: Each COB module is individually controllable, offering maximum creativity.

  • Durable Build: Cast aluminum housing provides excellent heat dissipation and roadworthy reliability.

🎯 Application Scenarios

The AL1004LB is a professional-grade 4x100W COB LED blinder light designed for both indoor and outdoor stage applications. With high-intensity output, customizable color temperatures, and IP65 protection, it delivers brilliant warm washes, audience blinding effects, and precise strobe control for concerts, events, and architectural lighting.

  • Live Music Stages & Festivals: Delivers eye-catching blinder hits and warm ambiance under any conditions.

  • Outdoor Events & Installations: Water-resistant housing makes it ideal for permanent or temporary outdoor setups.

  • Theater & Film: Offers consistent, flicker-free warm or neutral white for filming or stage drama lighting.

  • DJ & Nightclub Effects: Powerful output and strobe features energize dance floors.

  • Weddings & Ceremonies: Adds professional-grade warmth and color ambiance to large venues.

  • Churches & Houses of Worship: Reliable and silent, suitable for quiet indoor worship environments.
