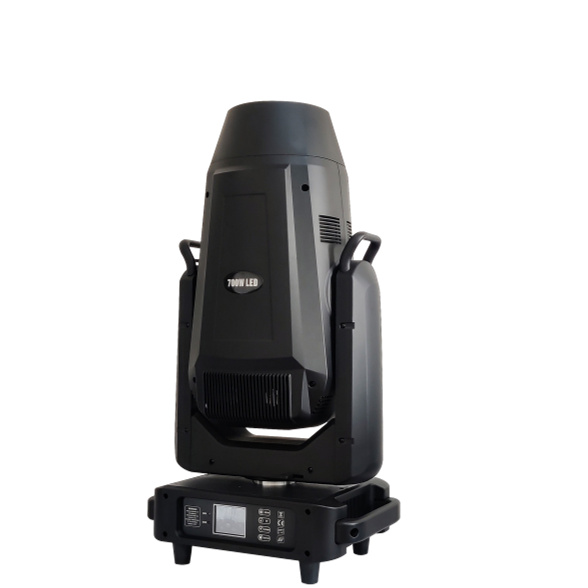

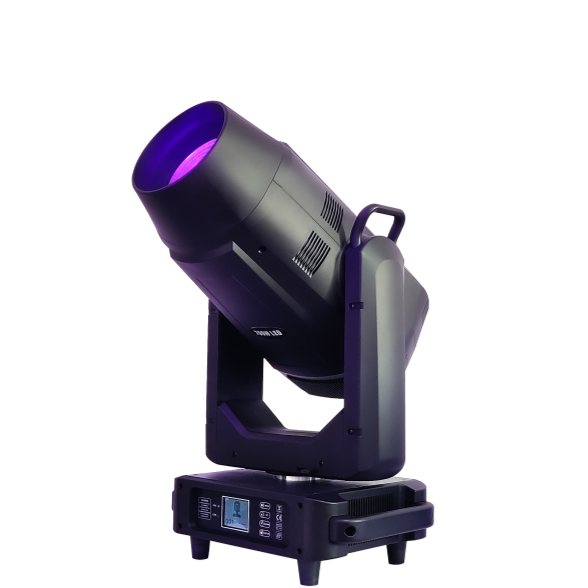

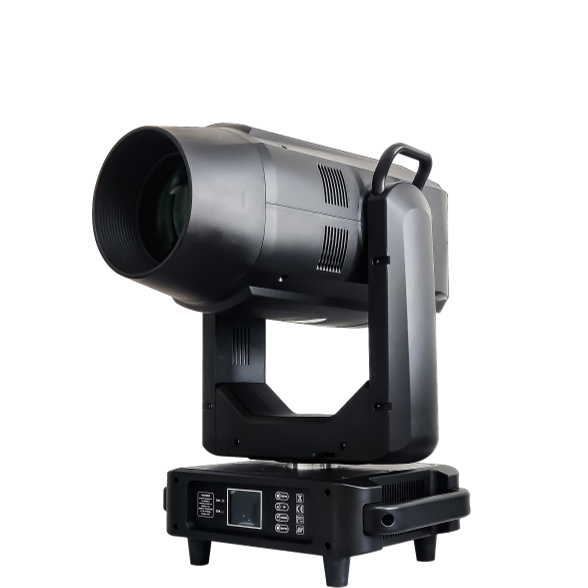

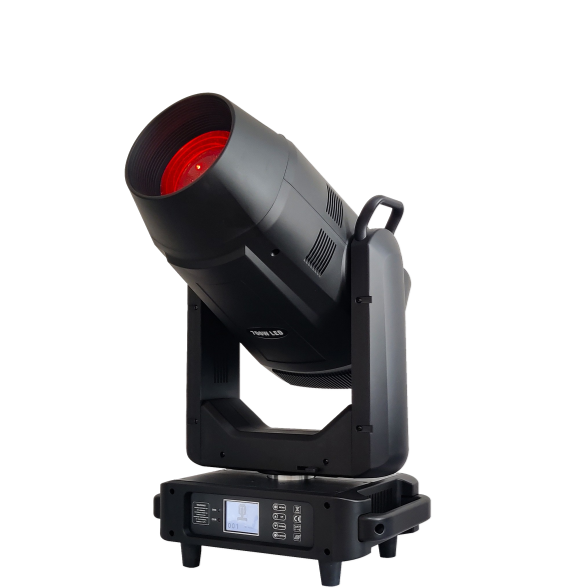

700W Led Profile Moving Head Light

Model
AL700LS

The AL700LS delivers professional-grade 700W LED profile lighting with CMY, dual gobos, framing system, and wide zoom – designed for stage, theater, and studio use.

Product Details:

🛠️ Technical Specifications

Specification Value
Model AL700LS
Light Source 600W White LED
Color Temperature 7,000K (CTO adjustable: 2700K–7000K)
Beam Angle 5°–55° Motorized Zoom
Color Mixing CMY Linear + CTO + 1 Color Wheel (6 colors)
Rotating Gobo Wheel 1 Wheel with 7 Replaceable Gobos
Static Gobo Wheel 1 Wheel with 8 Fixed Gobos
Animation Effects 1 Animation Wheel (Water & Flame FX)
Prism 1x 3-Facet Rotating Prism
Iris Motorized Linear Iris
Framing System 4 Framing Blades, ±60° Rotating Module
Frost Independent Dual Frost Filters
Channel Modes 36 / 41 Channels
Pan / Tilt 540° / 270° (16-bit Precision)
Control Protocols DMX512, RDM
Flicker Management Flicker-Free for Studio/TV Use
Display Multi-language LCD Display
Protection Dust-proof & Oil-proof
Power Input AC100–240V, 50/60Hz
Dimensions (Packed) 93 × 57 × 47 cm
Net Weight 35.7 kg

💡 Function Highlights

  • Powerful 600W LED Engine with long lifespan and high lumen output.

  • Precision Framing Module with 8 shutters, individually controllable, ±60° rotation.

  • Dual Gobo System: One static wheel and one rotating for ultimate flexibility.

  • Beautiful Animation Effects with realistic water and flame simulation.

  • Wide Zoom Range from tight beam to soft wash (5°–55°).

  • Full Color Control with CMY mixing, CTO correction, and dedicated color wheel.

  • Dual Frosts & Iris for advanced texture and wash control.

  • Silent, Flicker-Free Operation for studios and live streaming environments.

🎯 Application Scenarios

The AL700LS 700W LED Profile Moving Head is a high-performance fixture built for the most demanding stage and studio applications. Featuring a powerful 600W white LED engine, full CMY color mixing, animation wheel, framing system, and flexible zoom from 5° to 55°, it offers unmatched versatility for professional lighting designers.

  • Concert Halls & Touring Productions
    Versatile effects and high-output beam for immersive lighting.

  • Theater & Drama Staging
    Shape and frame the light to match any narrative or mood.

  • Houses of Worship
    Quiet operation and powerful visuals suitable for sermons and broadcasts.

  • TV Studios & Film Locations
    Flicker-free, color-accurate output for perfect camera results.

  • Exhibition & Product Launch Events
    Highlight branding and focal points with gobos and sharp projection.

📦 Packaging Options

Carton : 93x57x47cm ,42kg
