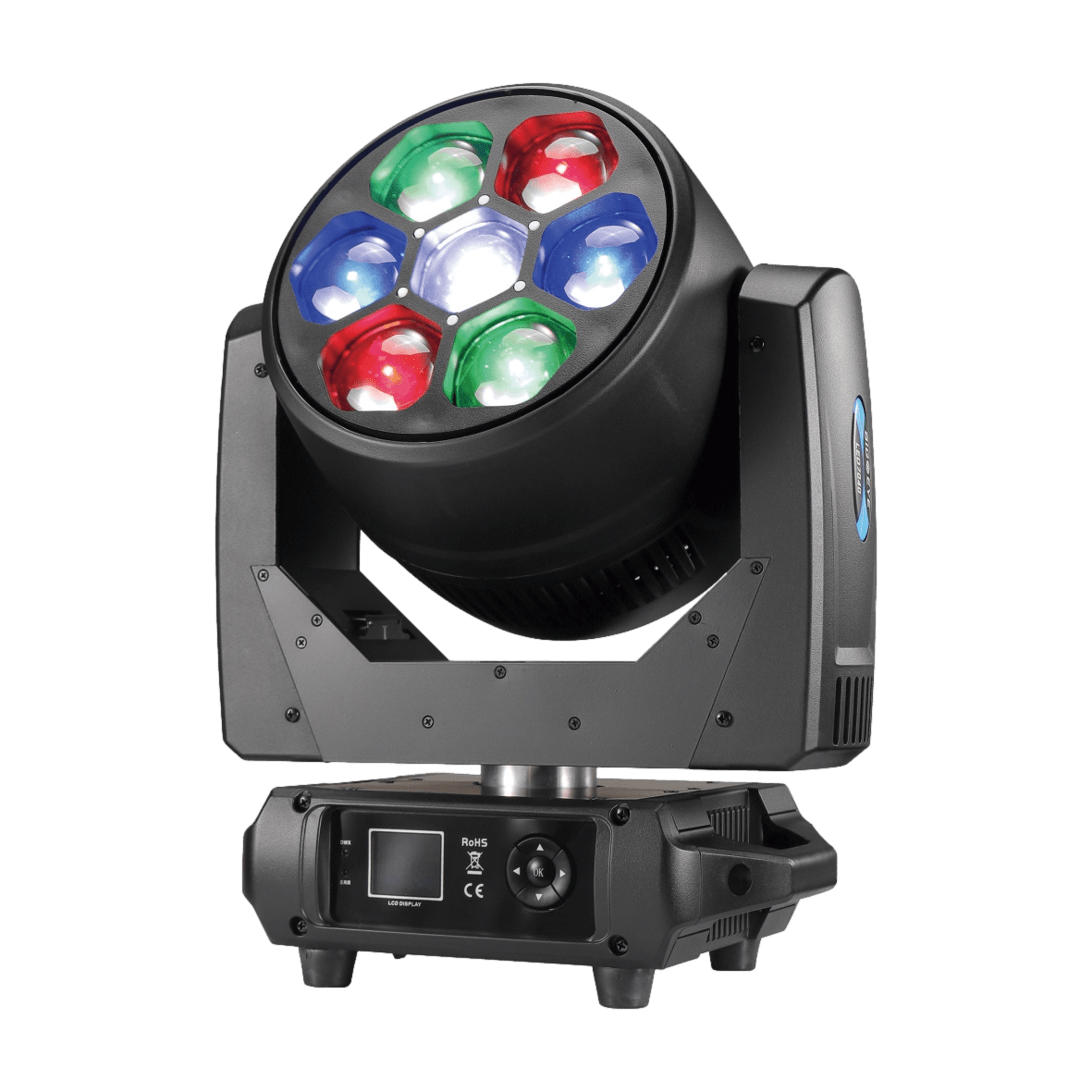

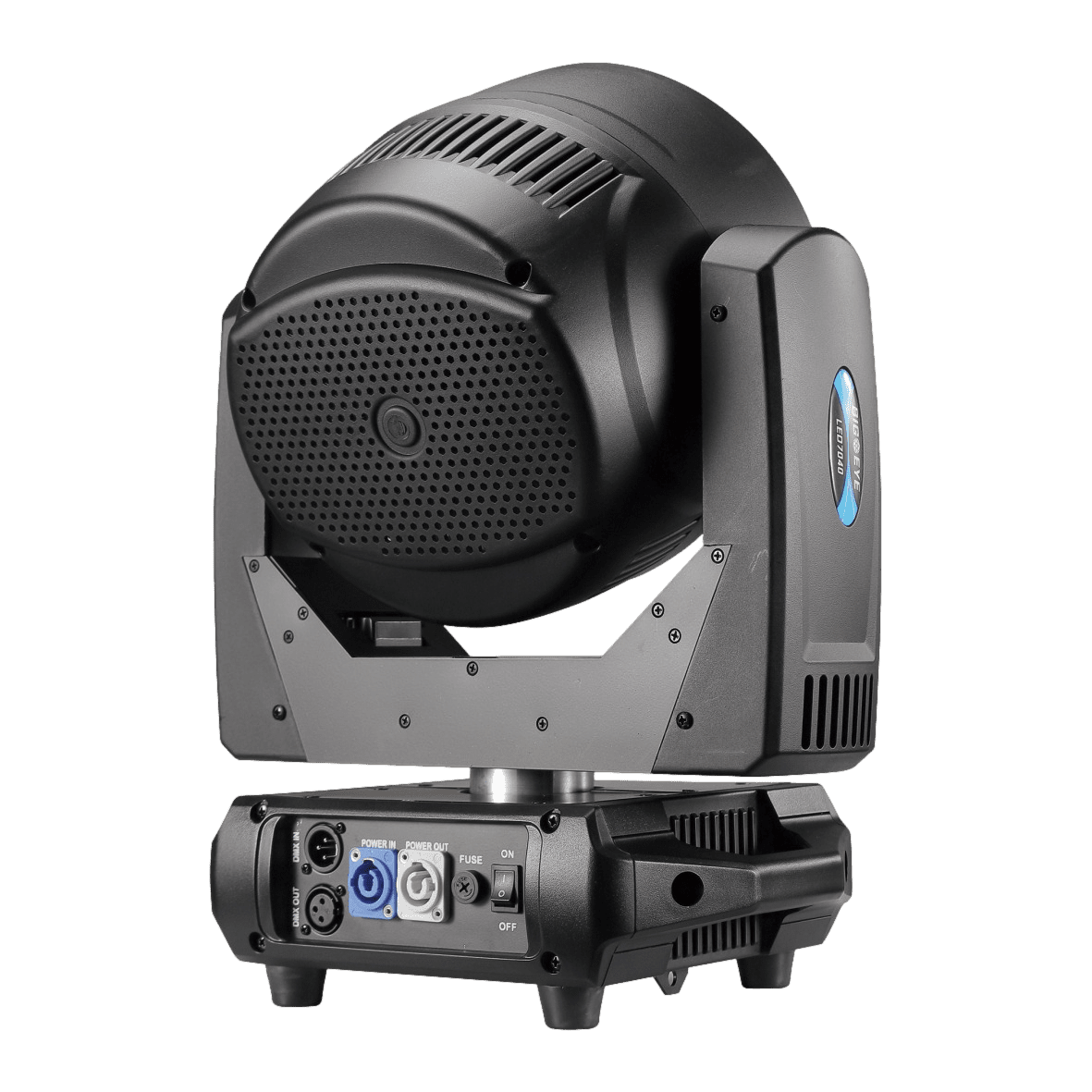

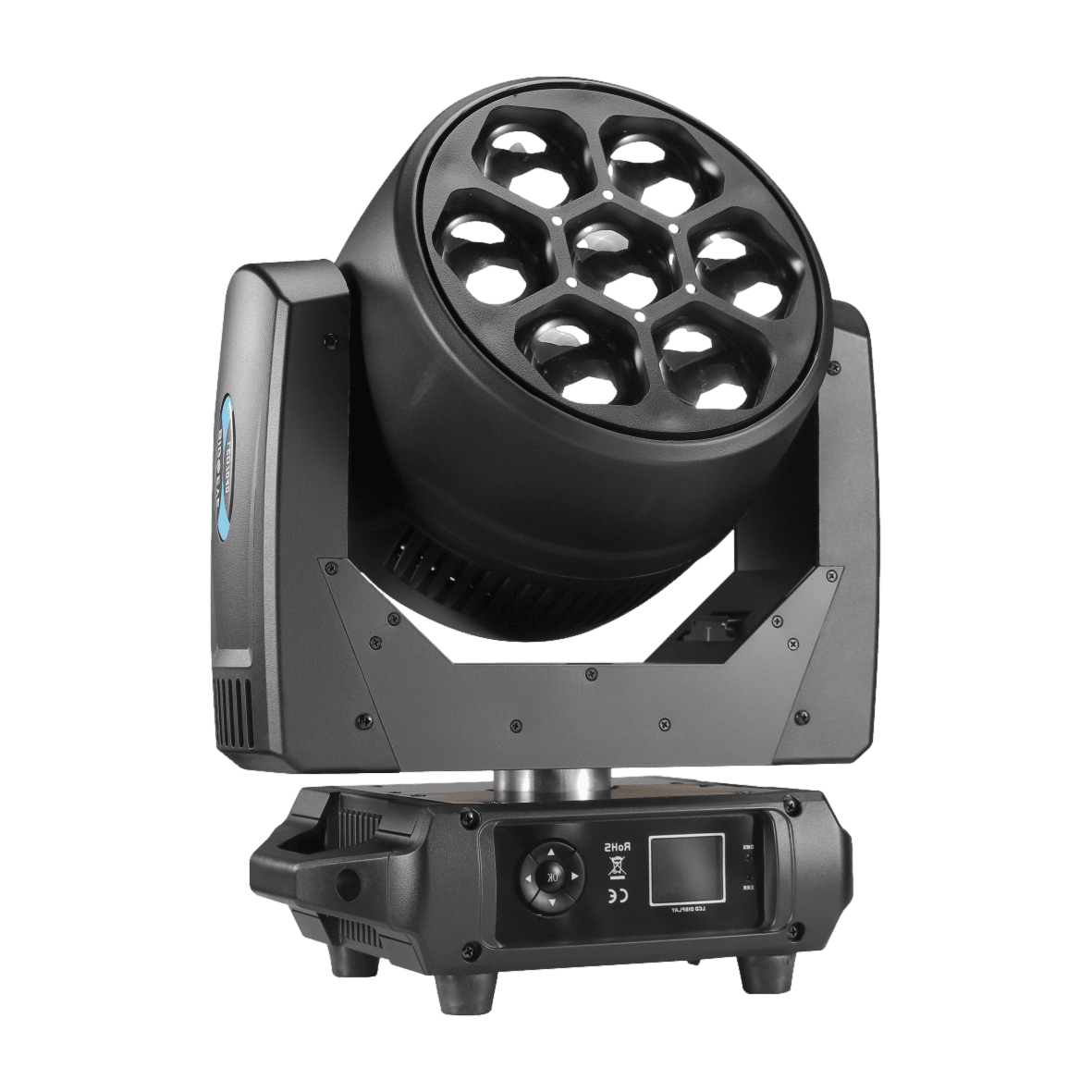

AL0740WR is a powerful 7x40W RGBW LED moving head wash with 4–60° zoom, smooth dimming, and multiple control modes. Designed for stage, event, and house of worship lighting.
| Specification | Value |
|---|---|
| Model | AL0740WR |
| Voltage | AC100V–240V, 50/60Hz |
| Power Consumption | 320W |
| LED Source | 7 × 40W 4-in-1 RGBW High Power LEDs |
| Beam Angle (Zoom) | 4°–60° Motorized Zoom |
| Strobe | 0–20Hz Electronic Strobe |
| Dimmer | 0–100% Linear Dimming |
| Control Mode | DMX512, Sound-activated, Master/Slave |
| DMX Channels | 23 / 35 / 51 CH Modes |
| Pan/Tilt Movement | Pan 540° + 16-bit |
| Display | LCD Color Screen |
| Protection Rating | IP20 (Indoor Use Only) |
| Fixture Dimensions | 347 × 246 × 438 mm |
| Net Weight | 11.2 kg |
| Carton Size | 53 × 42 × 51 cm (1 pc/ctn) |
4°–60° Wide Zoom Range: Perfect for both tight beams and large-area washes.
Vibrant RGBW Color Mixing: Excellent color consistency with high-powered 4-in-1 LEDs.
Multi-Mode Control: Supports DMX512, sound-activation, and master/slave for full flexibility.
Smooth Movement: 16-bit pan and tilt for precision positioning and effects.
Strobe & Dimming: Fast 0–20Hz strobe and flicker-free dimming for professional video use.
User-Friendly Interface: Intuitive LCD color display for easy operation.
The Aolait AL0740WR is a high-performance 7x40W RGBW LED moving head wash light with a wide 4°–60° motorized zoom, rich color mixing, linear dimming, and multiple DMX control modes. Ideal for stages, concerts, churches, and events needing vibrant, wide-angle wash effects.
Concert Stages: Wash performers and stage sets with powerful, color-rich output.
Theaters & Studios: Provide quiet, smooth washes with high-quality dimming.
Weddings & Events: Add ambient color to walls, drapes, and ceilings with wide zoom.
Churches & Houses of Worship: Enhance spiritual environments with dynamic, yet gentle color lighting.
Nightclubs & Bars: Sync to music and wash dance floors or architectural details.
Carton 1 in ：53x42x51CM GW:13kgs
