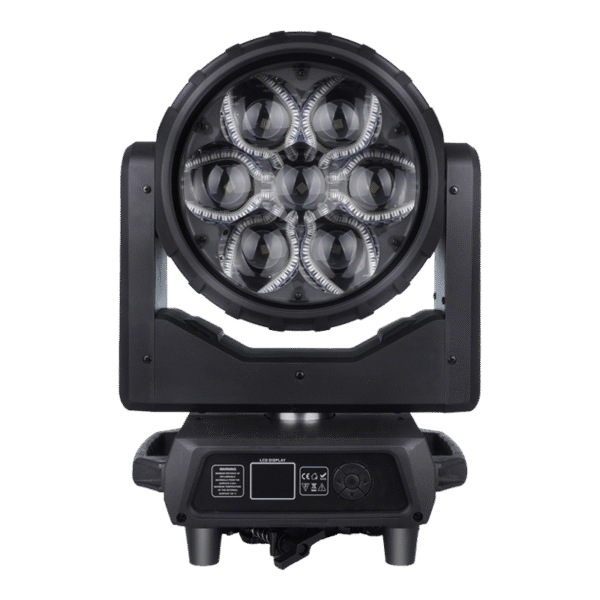

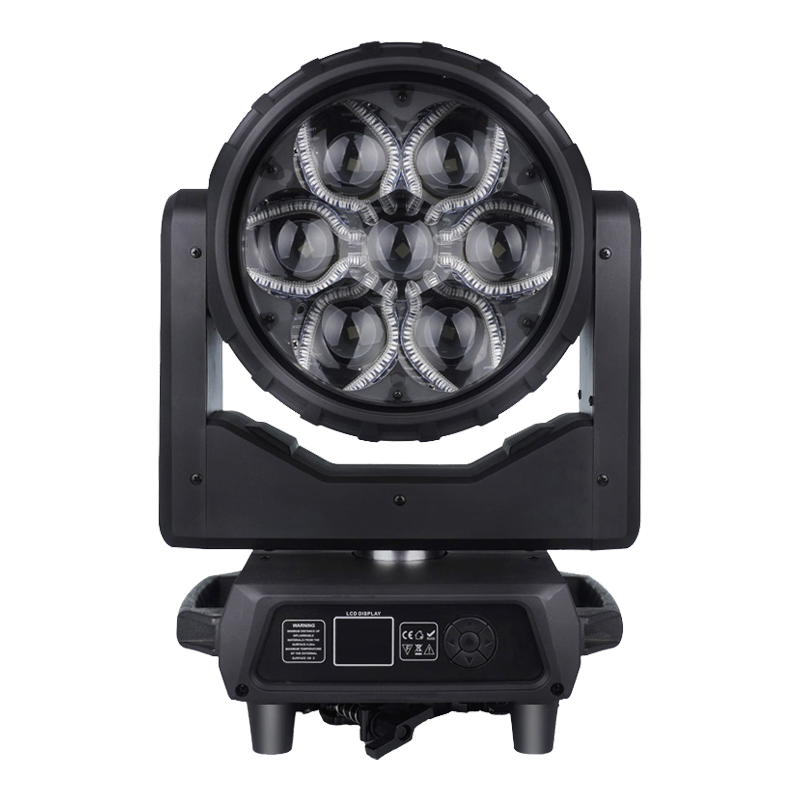

Model |
AL0760WR |
Voltage |
AC 90–240V, 50/60Hz |
Rated Power |
550W |
LED Source |
7 × 60W RGBW 4-in-1 LEDs + 12 × 3W RGB Aura Filaments |
Beam Angle |
7°–45° Motorized Zoom |
Strobe Rate |
1–25Hz with Multiple Effects |
Dimming |
0–100% Linear (Linear, Square, I-Square, S-Curve) |
Channel Modes |
21 / 30 / 36 / 57 / 78 / 93 CH |
Control Protocols |
DMX512, RDM, Auto, Art-Net (Optional Installation) |
Pan / Tilt |
Pan: 540° / Tilt: 270°, with 16-bit Fine Positioning |
Optics |
PMMA Lens, Quartz Glass Light Pipe |
Color Mixing |
RGBW with Virtual Color Wheel & Tungsten Emulation |
Macro Effects |
Built-in Macros, 3D Pixel Video Mapping |
Display |
1.77″ OLED, CN/EN Menu, Waterproof Touch Keys |
Cooling System |
Intelligent Fan with Overheat Protection |
Body Material |
Die-Cast Aluminum + UV-Resistant Polycarbonate (IP20 Rated) |
Fixture Size |
35.6 × 28 × 45 cm |
Net Weight |
14.6 kg |
