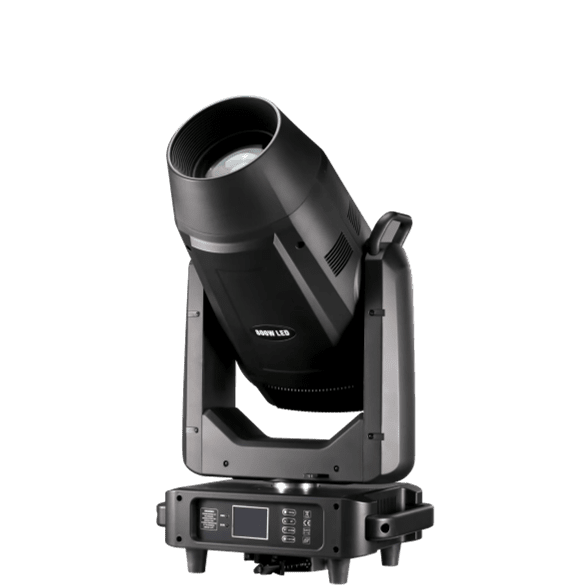

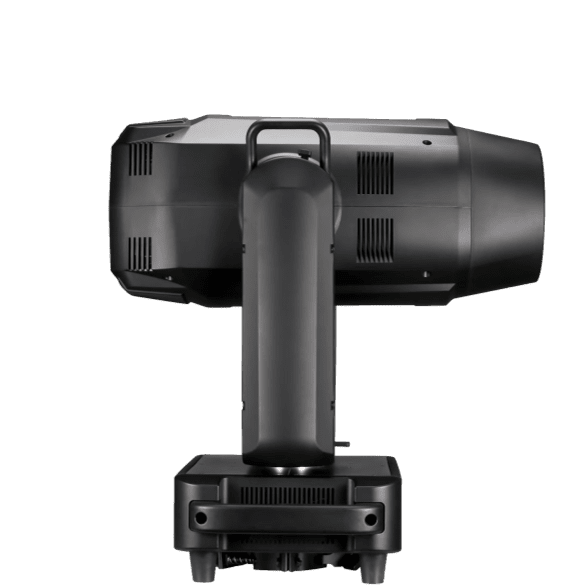

The AL800LS is a high-power 800W LED profile moving head light with CMY mixing, precise framing shutters, zoom from 5° to 55°, and advanced animation effects—perfect for top-tier stage and broadcast use.
| Specification | Details |
|---|---|
| Model | AL800LS |
| Power Consumption | 800W |
| Input Voltage | AC100–240V, 50/60Hz |
| Light Source | 700W LED Engine |
| Color Temperature | 7000K (with CTO adjustable 2700K–7000K) |
| Beam Angle | 5°–55° Motorized Zoom |
| Color Mixing | CMY Linear Color Mixing |
| Color Wheel | 1 Wheel with 6 Colors |
| Static Gobos | 1 Wheel with 8 Static Gobos |
| Rotating Gobos | 1 Wheel with 7 Replaceable Gobos |
| Animation Wheel | 1 Wheel for Flame/Water Effects |
| Prism | 3-Facet Rotatable Prism |
| Framing Shutters | 8 Blade, ±60° Rotation |
| Iris | Motorized Linear Iris |
| Frost | Dual Frost Filters, Layerable |
| DMX Channel Modes | 36 / 41 Channels |
| Flicker Management | Flicker-Free for Broadcast Use |
| Protection Design | Dust-proof & Oil-proof |
| Net Weight | 35.7 kg |
| Gross Weight | 41.7 kg |
| Packing Dimensions | 93 × 57 × 47 cm |
700W LED Engine with 180mm Lens: Ensures intense output and sharp imaging.
Advanced Framing System: Fully controllable 8-blade shutter module with ±60° rotation, ideal for precise beam shaping.
CMY + CTO Color Control: Offers endless color blending possibilities and smooth temperature transitions from 2700K to 7000K.
Water & Flame Effects: Built-in animation wheel creates realistic motion effects for immersive scenes.
Dual Gobo Wheels: Includes both static and rotating gobos for layered pattern effects.
5°–55° Linear Zoom: Covers both tight beam and wide wash applications.
Dual Frost Filters: Create soft edge or heavy wash for mood lighting and scenic effects.
Robust Construction: Sealed for dust and oil resistance to withstand tough tour conditions.
Aolait AL800LS is a professional-grade 800W LED Profile Moving Head Light engineered for top-tier stage productions, theaters, and events. Equipped with a 700W LED engine, CMY color mixing, animation effects, and precise framing shutters, this fixture delivers exceptional performance for designers demanding power, precision, and flexibility.
Professional Theater & Opera: Silent operation, precise framing, and dynamic effects for performance lighting.
Concert Stages & Touring: High output, wide zoom, and CMY color effects make it perfect for arena-scale rigs.
TV Studios & Film Sets: Flicker-free output and soft frost effects are ideal for on-camera use.
Churches & Worship Venues: Quiet motor and powerful visuals suit modern worship lighting needs.
Theme Parks & Live Shows: Animation wheel and color effects enhance immersive storytelling and themed environments.
Carton: 93x57x47cm, GW：41.7 KG
