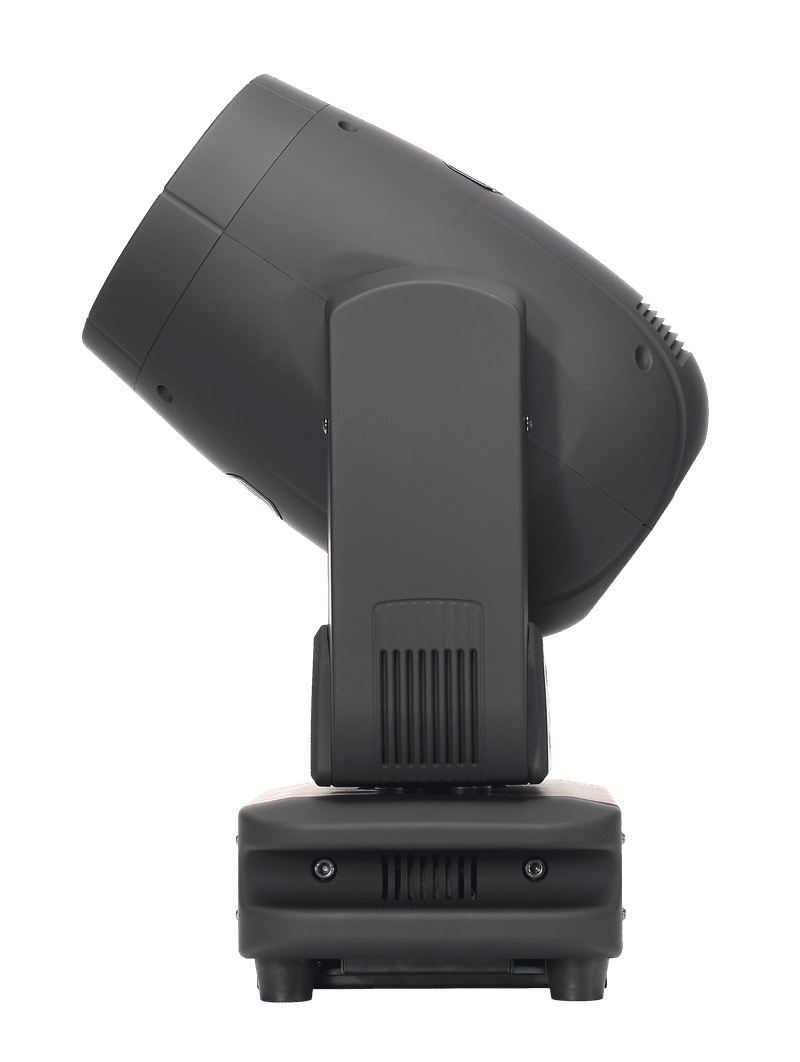

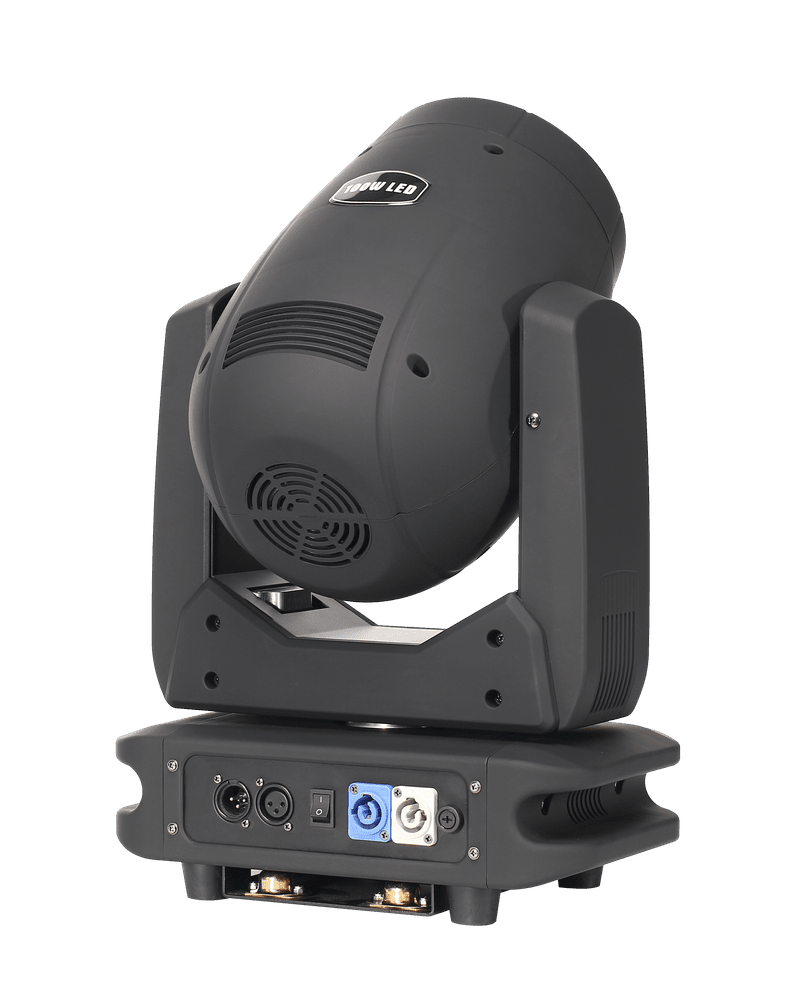

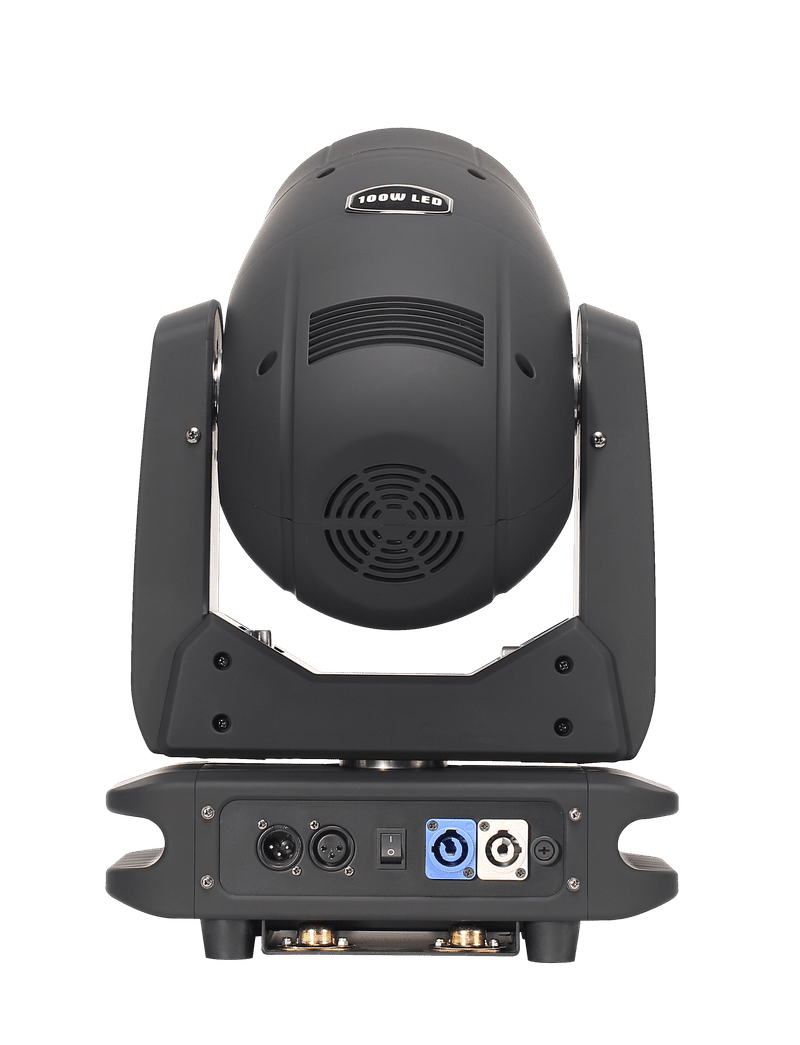

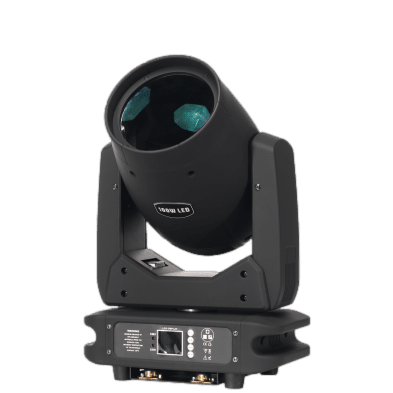

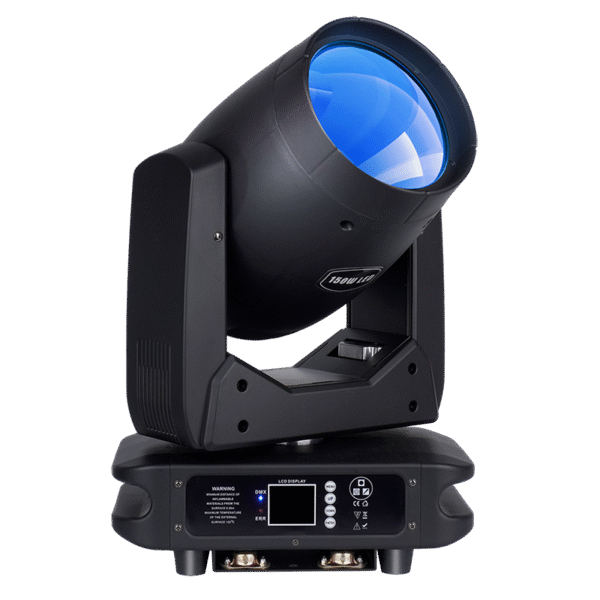

AL100LB is a compact and powerful 100W LED Beam Moving Head Light with sharp optics, dual rotating prisms, and colorful gobos. Perfect for DJs, stages, churches, and clubs.
| Specification | Value |
|---|---|
| Model | AL100LB |
| Input Power | AC100–240V, 50/60Hz |
| Power Consumption | 150W |
| Light Source | 1x 100W White LED |
| Beam Angle | 2.5° |
| DMX Channels | 16CH / 19CH |
| Pan Movement | 540° (16-bit with electric correction) |
| Tilt Movement | 270° (16-bit with electric correction) |
| Color Wheel | 13 colors + open |
| Gobo Wheel | 11 static gobos + open |
| Effect Wheel | 1x 16-facet prism (rotating) + 1x 8-facet prism (rotating, bi-directional) |
| Color Chip | 1 multicolor chip (6 colors) |
| Control Modes | DMX512 / Auto / Master-Slave |
| Dimming | 0–100% linear |
| Strobe | 0–20Hz electronic strobe |
| Display | LCD display |
| Net Weight | 11.5 kg |
Precision 2.5° Beam: Produces sharp, high-impact beam effects for mid-air visuals.
13-Color Wheel + Color Chip: Full color palette for immersive scene changes.
11 Gobos + Dual Prisms: Offers dynamic texturing and layering with rotating 8-facet and 16-facet prisms.
Multiple Control Modes: Supports DMX512 (16/19CH), Auto Run, and Master-Slave operation.
Compact, Lightweight Design: Easy to install and transport for mobile productions.
Electronic Strobe and Smooth Dimming: Professional-grade effects control for live performances.
The AL100LB 100W LED Beam Moving Head Light delivers high-intensity narrow beam effects with a powerful 100W LED engine, precision 2.5° optics, dual rotating prisms, and vibrant color and gobo wheels. Ideal for stage lighting, DJs, clubs, and event productions, it supports DMX, auto-run, and master-slave modes for flexible control.
Concert Stages & Touring
Create vivid aerial beam effects that pierce through smoke and haze.
Nightclubs & DJ Setups
Sync beam chases and prism rotations with audio beats for dramatic ambiance.
Worship Lighting (Churches)
Add visual focus and accent lighting during live worship events.
Event & Wedding Lighting
Use colored gobos and movement to elevate the atmosphere in large venues.
Theater and Drama Productions
Achieve precision highlighting with narrow beams and static patterns.
Carton 1 in 1: 450 x 350 x 450 mm GW.13kgs
