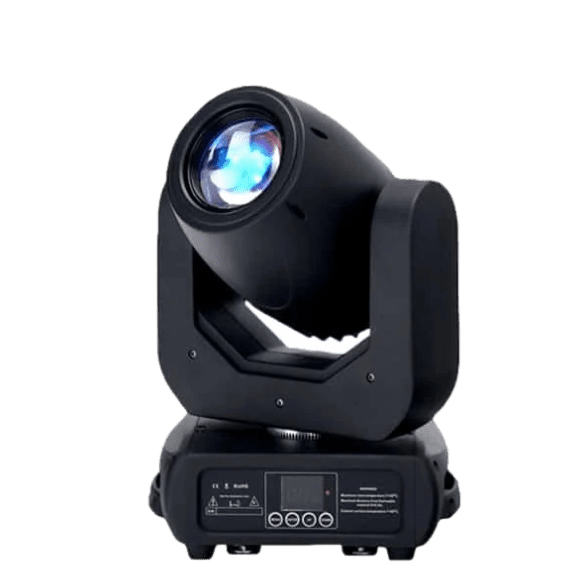

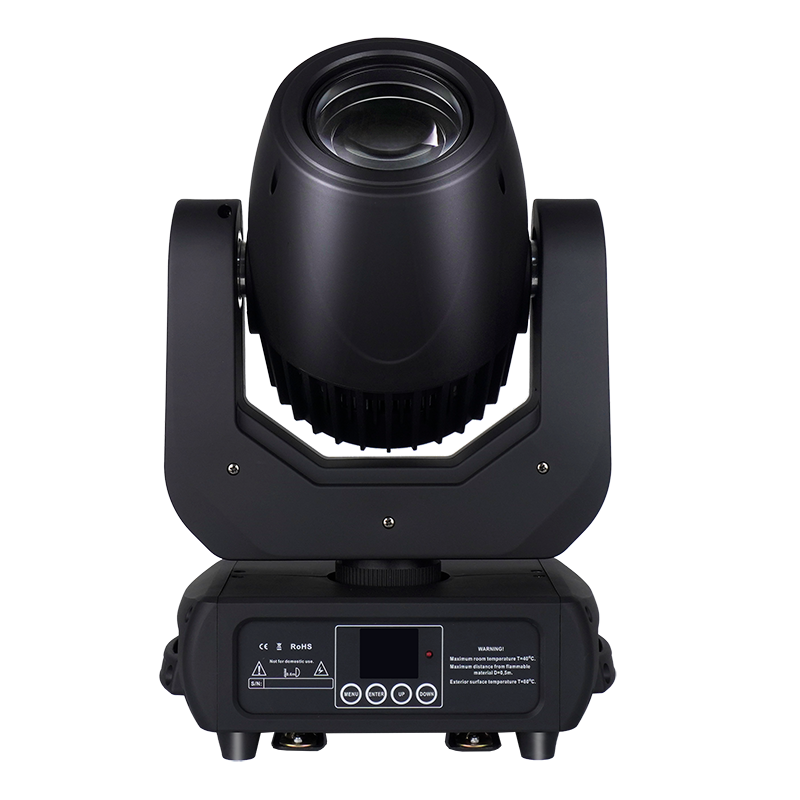

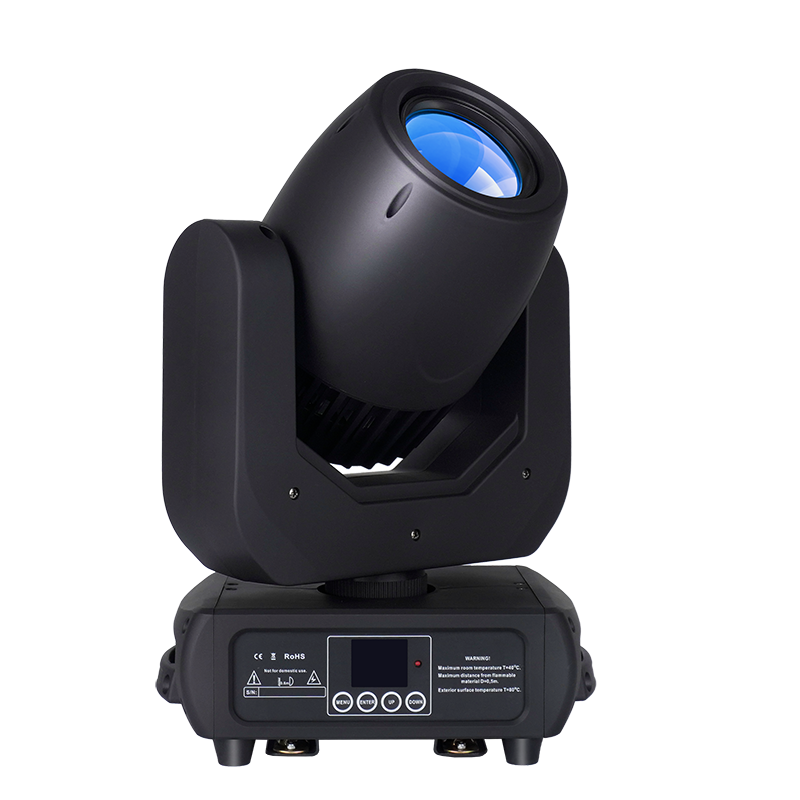

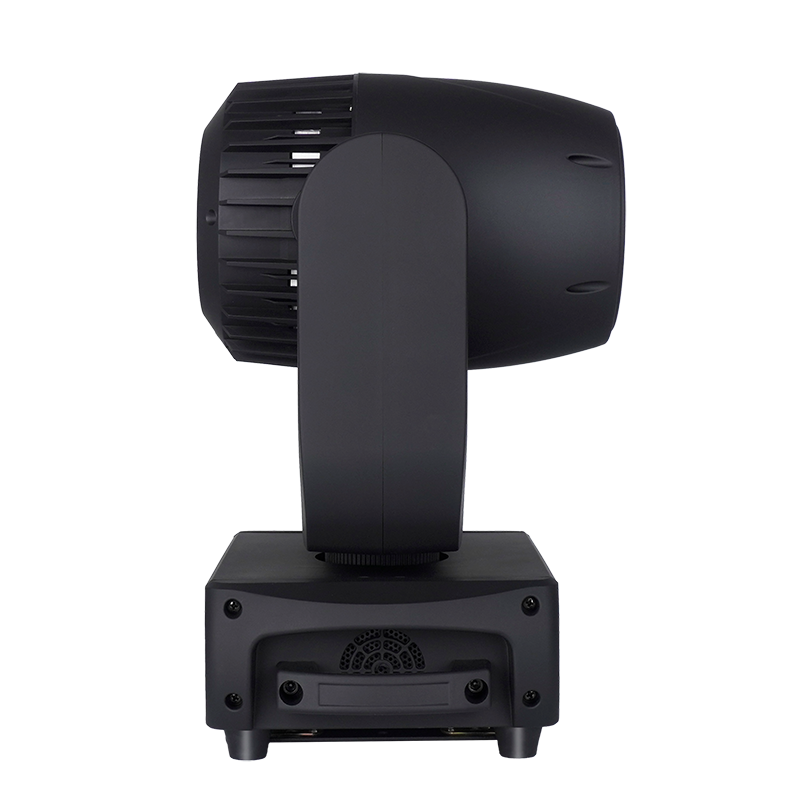

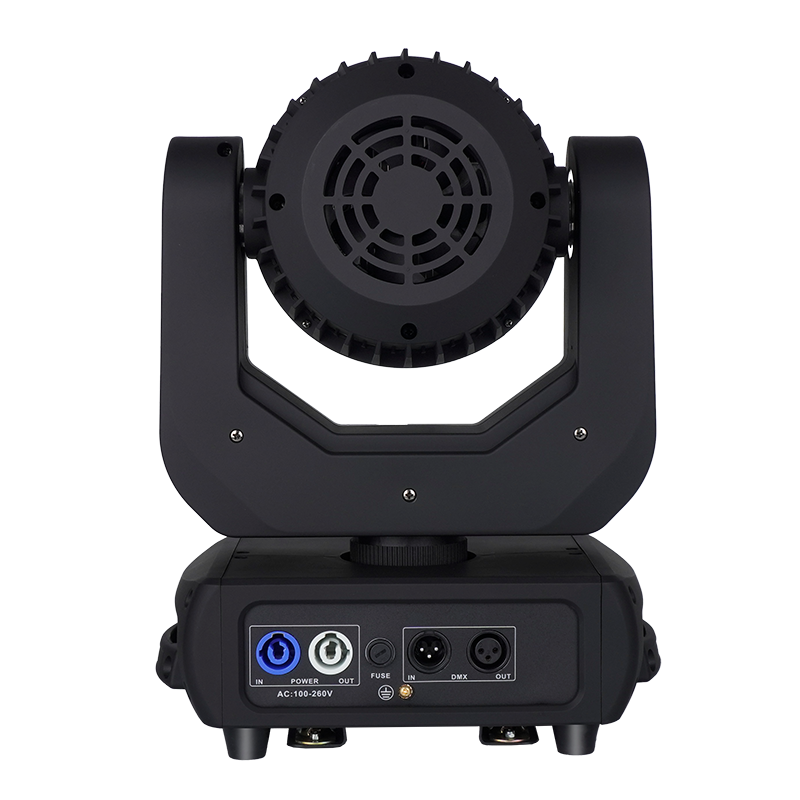

150W LED Spot Moving Head – AL150LS

150w led spot moving head
150w led spot moving head
150w led spot moving head
150w led spot moving head
Categories , Tags , , ,
Model
AL150LS

AL150LS is a dedicated 150W LED Spot moving head with a 15° beam angle, motorized focus, fixed and rotating gobo wheels, a rotatable 3-facet prism and four DMX channel modes for indoor stages and event rigs.

GET A QUOTE
USER MANUAL

Technical Specifications

Function Highlights

Application Scenarios

Packaging Options

Product Details:

The AL150LS is a dedicated LED Spot moving head for focused pattern projection and moving effects. It uses a 150W white LED, 15° optics and motorized focus rather than Beam Spot Wash optics.

Spot, gobo and control functions

  • Colour wheel: 7 colours plus open, with variable-direction wheel rotation.
  • Fixed gobos: 8 gobos plus open, with wheel rotation and shake functions.
  • Rotating gobos: 6 gobos plus open, with indexing and bidirectional rotation.
  • Prism: rotatable 3-facet prism.
  • Control: DMX512, master/slave, sound and auto operation; 10, 12, 14 or 16 DMX channels.

Choose this model when a compact indoor rig needs Spot-style gobo projection. It is not presented as a CMY, zoom, wash or framing fixture. Compare the wider LED Spot Moving Head range when the throw, pattern set or optical requirements differ.

Plan the application before ordering

Confirm the throw distance, target size, required gobos, control mode, available circuit and indoor mounting conditions. Download the AL150LS user manual for the channel table and installation requirements, then send the venue details and quantity for a model review.

🛠️ Technical Specifications

Specification Value
Model AL150LS
Input voltage AC90–260V, 50/60Hz
Power consumption 250W
Light source 150W white LED
Beam angle 15° with focus
Colour wheel 7 colours + open
Fixed gobos 8 gobos + open
Rotating gobos 6 gobos + open
Prism Rotatable 3-facet prism
Control DMX512, master/slave, sound and auto
DMX modes 10 / 12 / 14 / 16 channels
Dimensions 270 × 270 × 470 mm
Net weight 14 kg

💡 Function Highlights

  • Dedicated Spot optics with 15° beam angle and motorized focus
  • 7-colour wheel plus open
  • 8 fixed gobos plus open
  • 6 rotating gobos plus open
  • Rotatable 3-facet prism
  • 10, 12, 14 or 16-channel DMX modes

🎯 Application Scenarios

  • DJ and club rigs: focused gobo and prism effects for indoor dance floors.
  • Weddings and private events: moving pattern projection for stages and dance areas.
  • Small and mid-size stages: compact Spot coverage where a fixed 15° optic fits the throw.
  • Worship and event venues: confirm noise, mounting and control needs against the actual installation.

📦 Packaging Options
