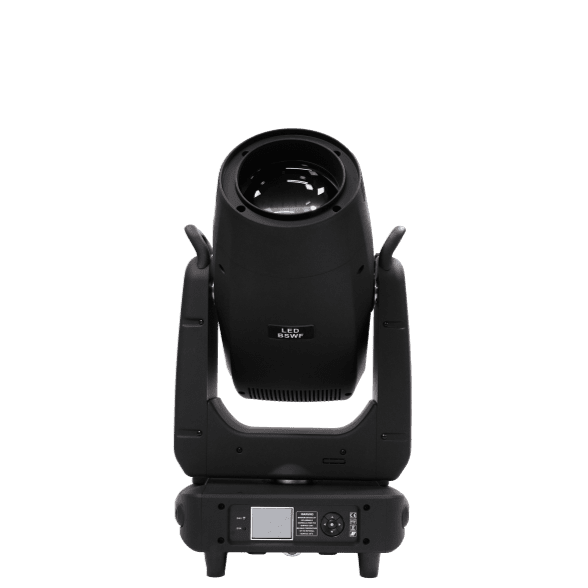

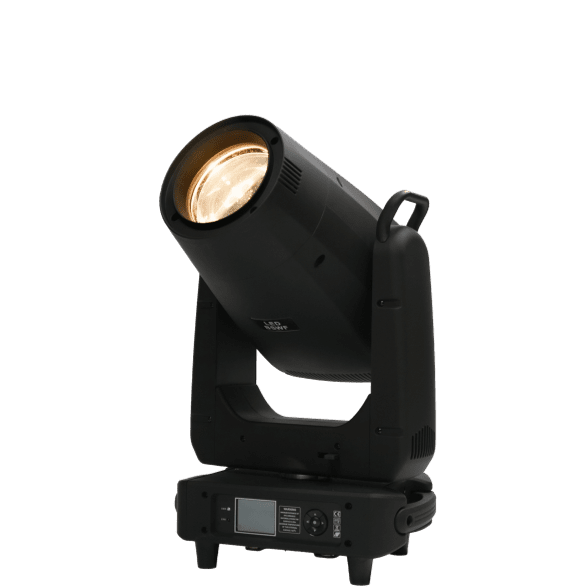

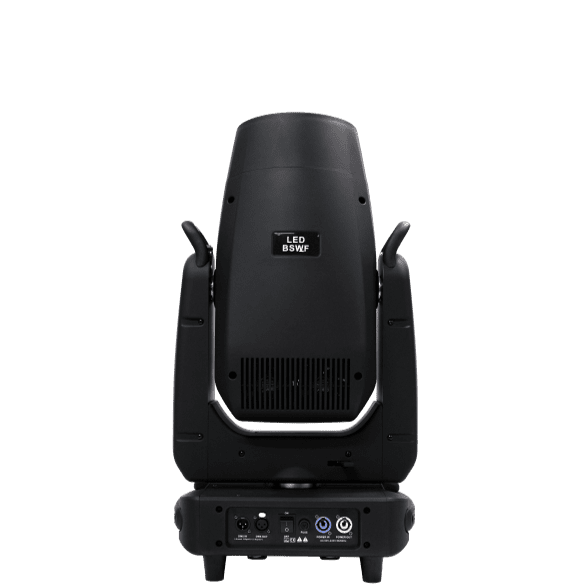

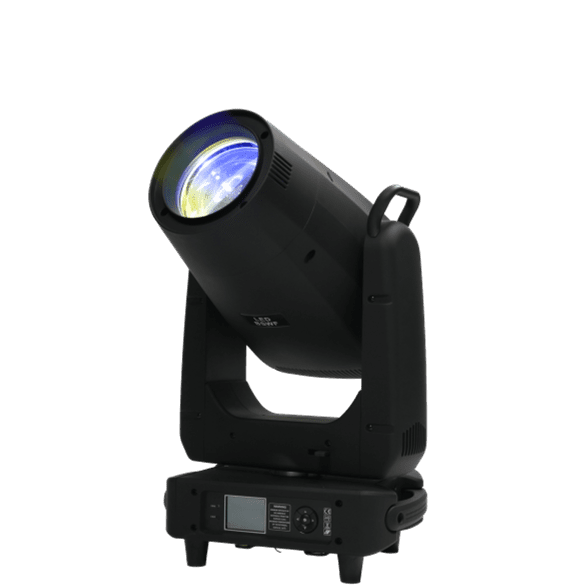

600W LED Profile Moving Head with CMY – AL600MLS

The AL600MLS is a 600W LED Profile moving head for productions that need remote positioning and controlled beam shaping. Four framing blades can be controlled individually, and the framing module rotates ±60° for masking scenery, screens and defined stage areas.

Framing, optics and effects

• Optics: 7°–42° motorized zoom with focus and motorized iris.
• Framing: four individually controlled blades with eight framing motors and ±60° module rotation.
• Colour: linear CMY mixing plus a 5-colour wheel.
• Projection: 6 static gobos, 7 replaceable rotating gobos and a bidirectional 4-facet prism.
• Beam treatment: motorized frost for softer fields and wash transitions.
• Control: the current model manual publishes a 34-channel DMX mode.

The manual lists flicker-free management, but camera results still depend on dimmer level, frame rate and shutter settings. Request a sample test for broadcast or recorded productions. Noise performance also depends on operating and thermal conditions, so include microphone positions and noise limits in the enquiry.

Use the framing system where it adds value

This model suits theatre cues, presentation stages, studios and event productions that need shaped fields as well as gobo and colour effects. For projects that do not need shutters, compare Beam Spot Wash or dedicated Spot models instead. See the Profile and Framing Moving Head range for an application-led comparison.

Download the AL600MLS user manual. For a quotation or sample review, send the throw distance, target field, framing cues, camera settings, control system, mounting conditions and quantity.
