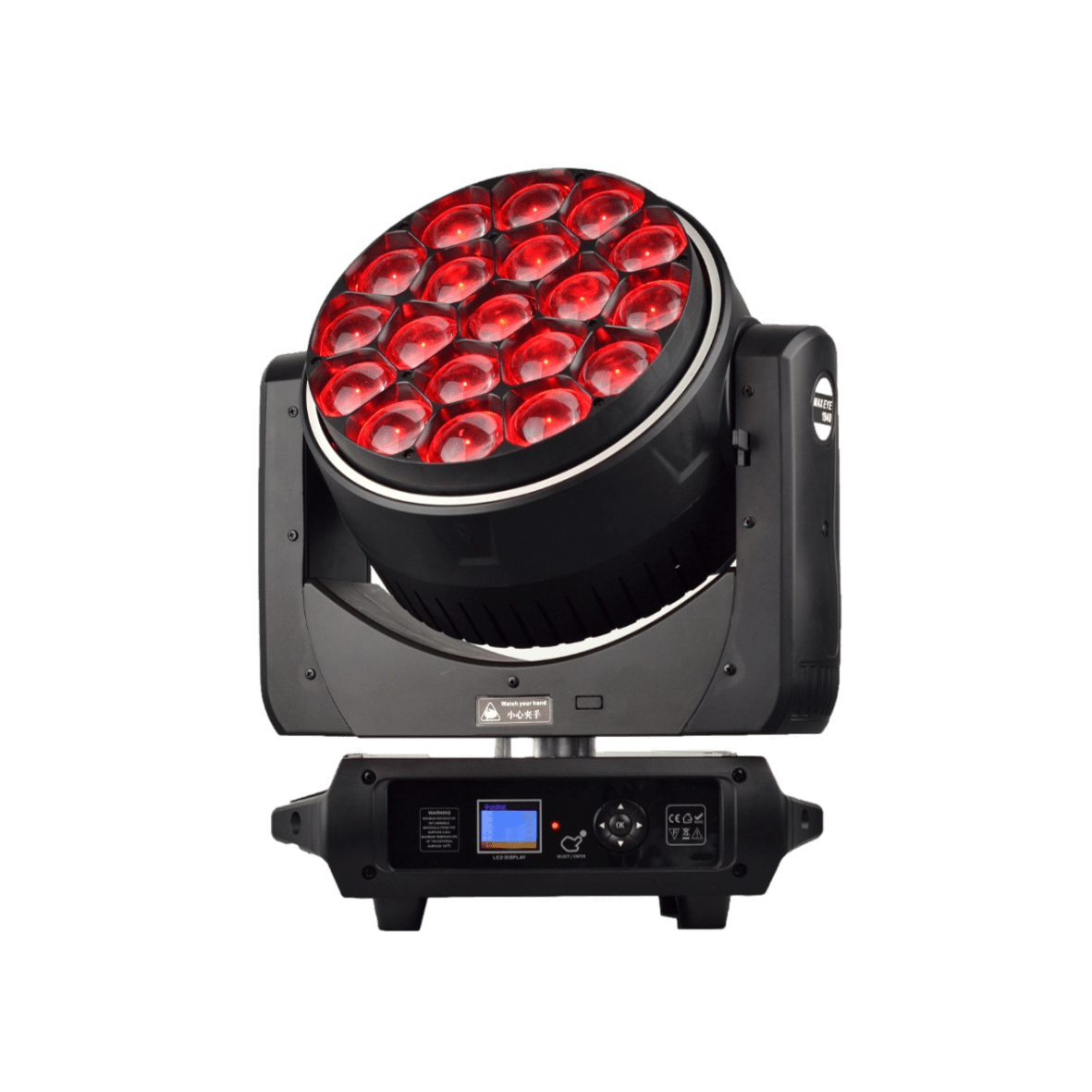

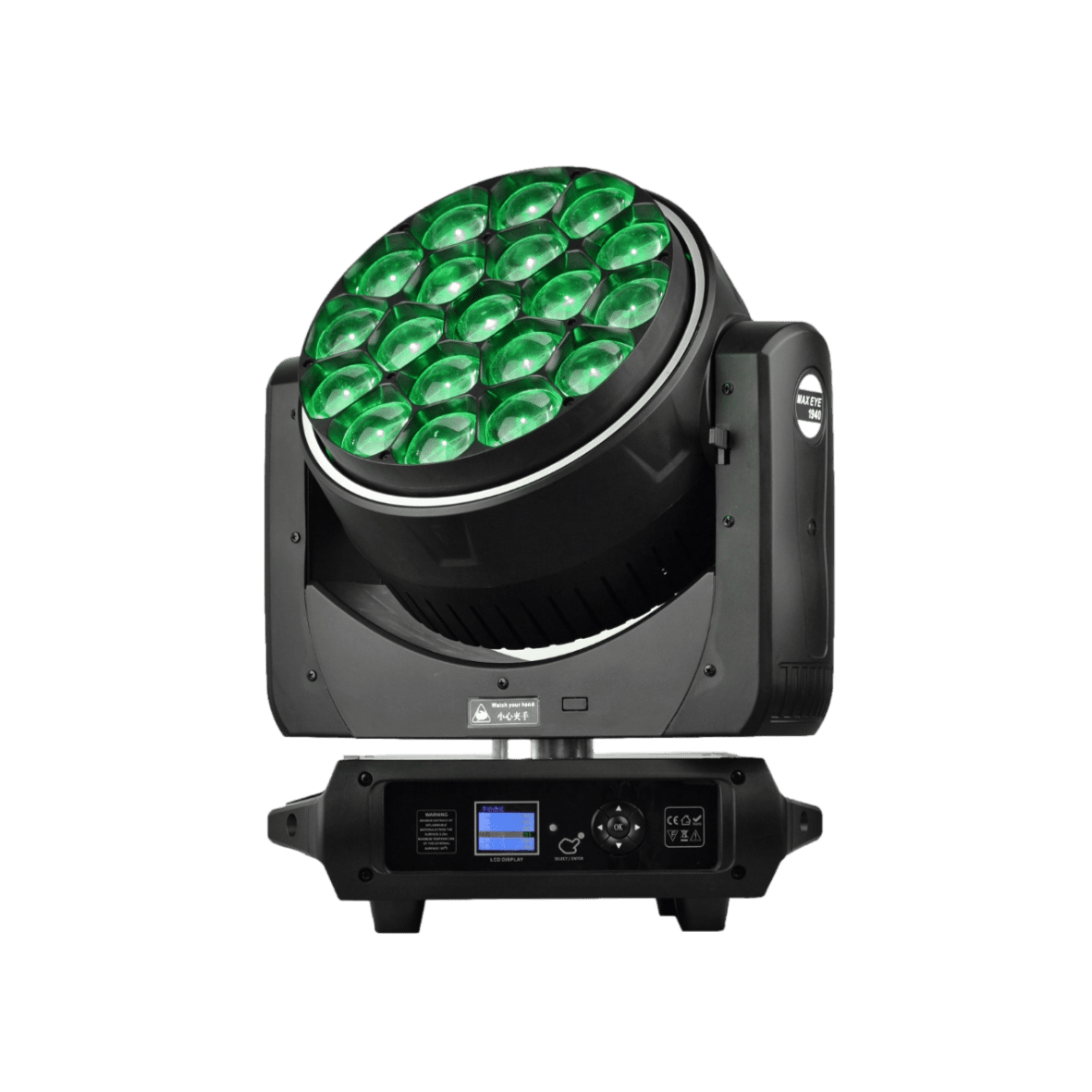

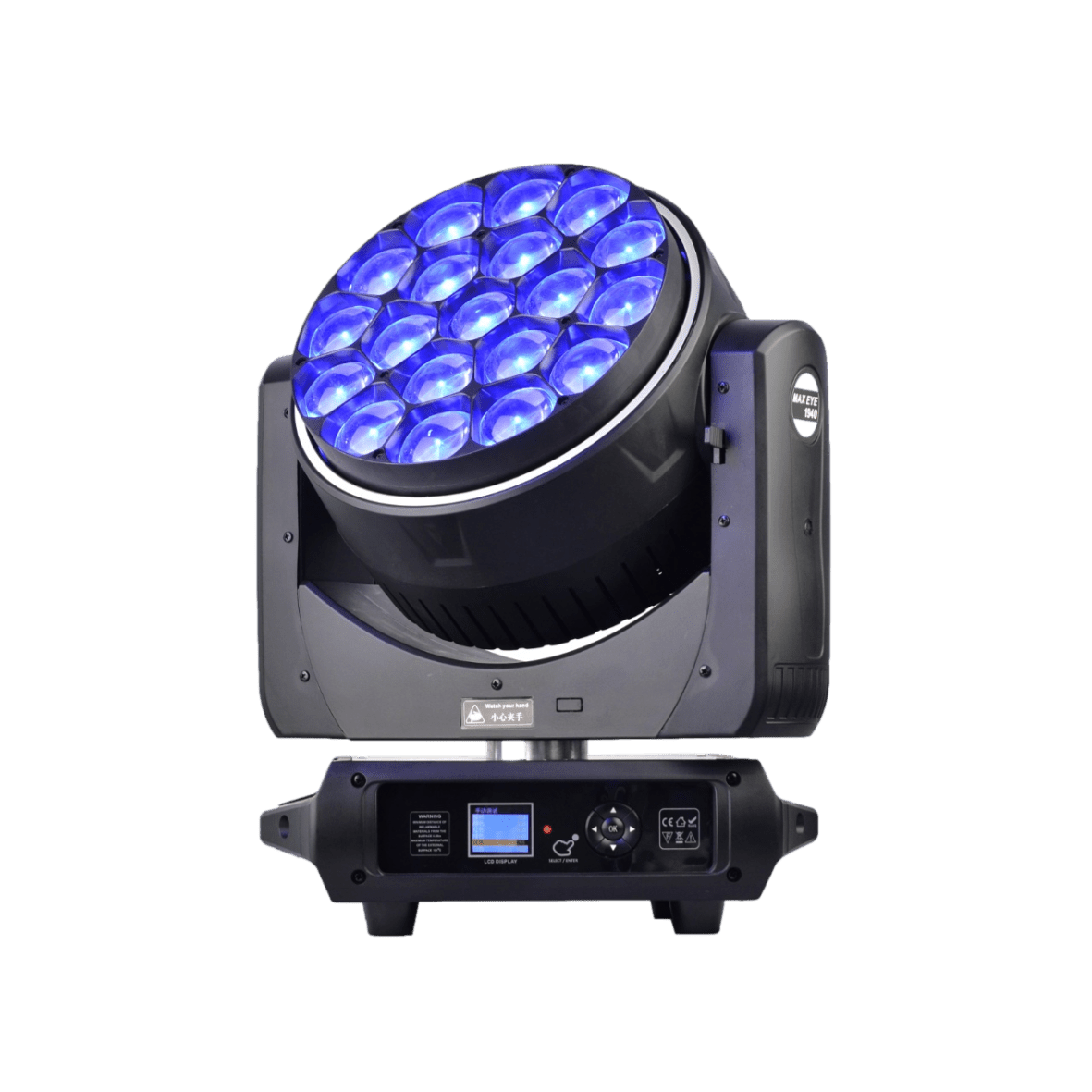

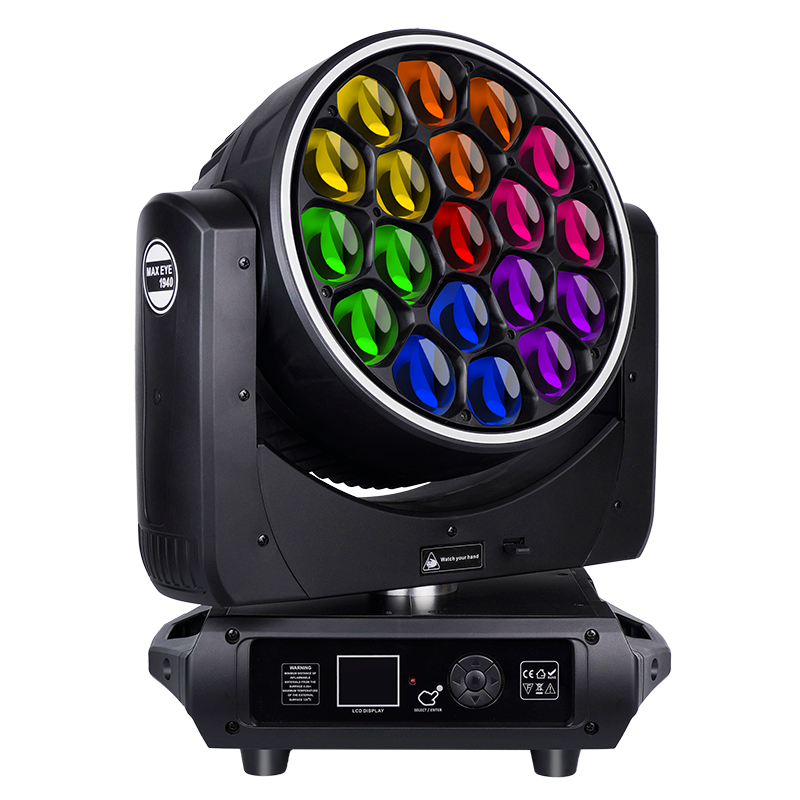

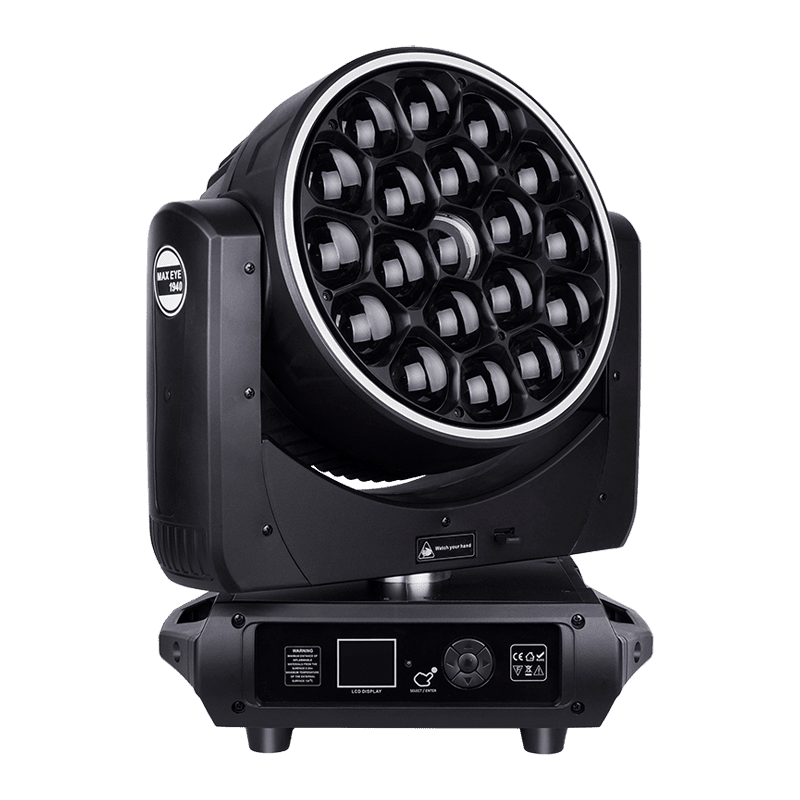

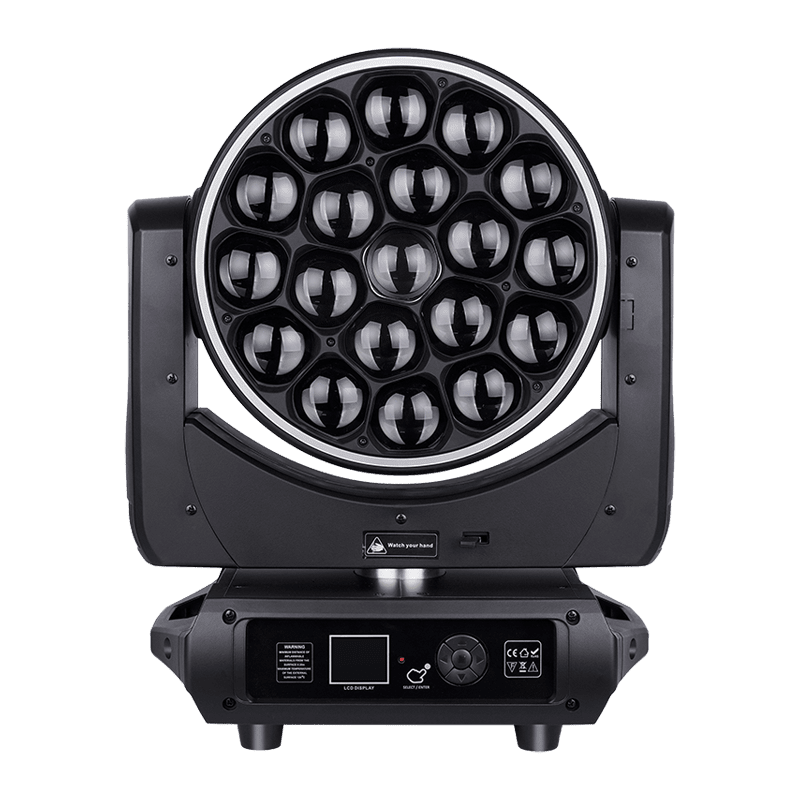

The AL1940WZ is a pixel-controlled 19x40W Bee Eye LED Moving Head Light with zoom, kaleidoscope effects, halo ring, and infinite lens rotation. Ideal for concerts, stages, and pro shows.
| Specification | Value |
|---|---|
| Model | AL1940WZ |
| Voltage | AC100–240V, 50/60Hz |
| Rated Power | 850W |
| LED Source | 19 × 40W RGBW 4-in-1 LEDs |
| Beam Angle | 7°–45° Motorized Zoom |
| Dimmer | 0–100% Linear (4 Dimmer Curve Modes) |
| Strobe | 0–25Hz |
| Pan / Tilt | 540° / 220° with 16-bit Precision |
| Control Modes | DMX512, Sound-active, Master/Slave |
| DMX Channel Modes | 21 / 26 / 36 / 43 / 78 / 119 Channels |
| Display | LCD Display with Touch Buttons |
| Protection Rating | IP20 (Indoor Use) |
| Fixture Dimensions | 434 × 260 × 577 mm |
| Net Weight | 15.2 kg |
| Gross Weight | 18.7 kg |
| Carton Size | 48 × 38 × 51 cm (1 pc/ctn) |
Pixel-by-Pixel Control: Each of the 19 LEDs can be individually controlled, unlocking endless creative designs.
Honeycomb Optical Lens: Unique lens structure enhances beam intensity and effect clarity.
Infinite Front Lens Rotation: The front lens rotates continuously in both directions, delivering mesmerizing kaleidoscope-style visuals.
Versatile Lighting Modes: Functions as a beam, wash, or eye-candy effect light for multi-scene use.

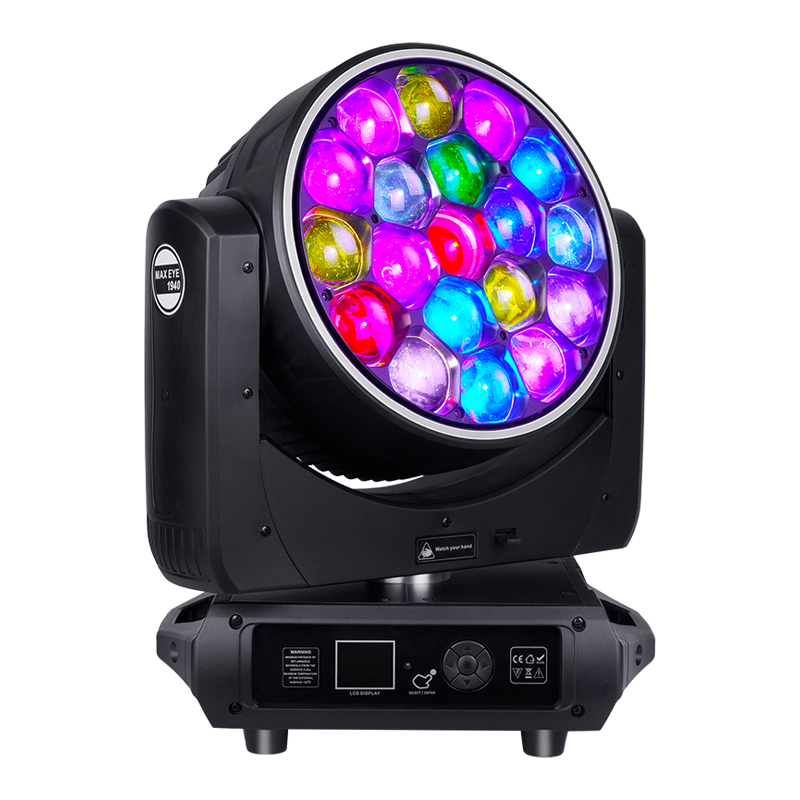

Halo LED Ring: Extra LED ring surrounds the center lens, with rich macro patterns for vibrant “eye candy” effects.
Stage-Ready Design: Ideal for professional lighting designers requiring high-performance, multi-effect versatility.
The AL1940WZ is a professional-grade 19x40W LED Bee Eye Moving Head Light featuring pixel-level control, infinite front lens rotation, wide zoom, and halo ring effects. Designed for versatile stage use — from narrow beams to soft washes and stunning kaleidoscopic visuals — it excels in concerts, events, clubs, and broadcast environments.
Concert Stages & Touring Productions: Breathtaking visual effects, beam movement, and vibrant color wash.
Nightclubs & Music Festivals: Eye-catching motion effects with rotating lens and halo ring.
Theaters & Performing Arts Centers: Quiet and responsive, ideal for mood lighting and dramatic scenes.
Churches & Worship Venues: Soft wash and effect modes for immersive, dynamic services.
Broadcast Studios & TV: Low flicker, silent operation, and rich effects for creative content production.
Carton 1 in ：48 x 38 x 51 cm GW:19kgs
