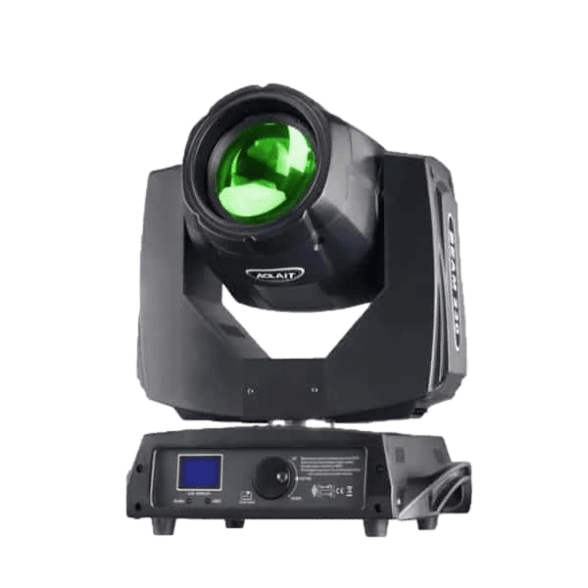

230W Beam Moving Head

AL230B equip Osram 230W(Optional Yodn 230w), it features: 14 color + open 17 gobos + open and 16-facet rotating prism

Product Details:

Voltage: AC100-240V 50/60HZ

Power: 400W

Light Source: Osram 230W(Optional Yodn 230w)

Color plate: 14 colors+ open

Gobo plate: 17 gobos+ open

Prism: 8-facet circular prism/ 16-facet circular prism/linear prism

Focus: Linear Focusing

Beam angle: 0-3.8°

Strobe: 1-13 times/second

Dimmer: 0-100% linear dimmer

Movement: Pan: 540°, Tilt: 270° speed adjustable

Control mode: Standard DMX 512

DMX Channels: 16 Channels

Lens: Six-layer coated high-precision optical lens

Other functions: Remote control of the light bulb switch function, display of lamps, lamp usage time, XY axis gobo color shifts the cut light function, automatically reduces the power of 30% when mechanically closed

IP Grade: IP20

Size: 340*400*480 mm

Net weight:17.5 KG
