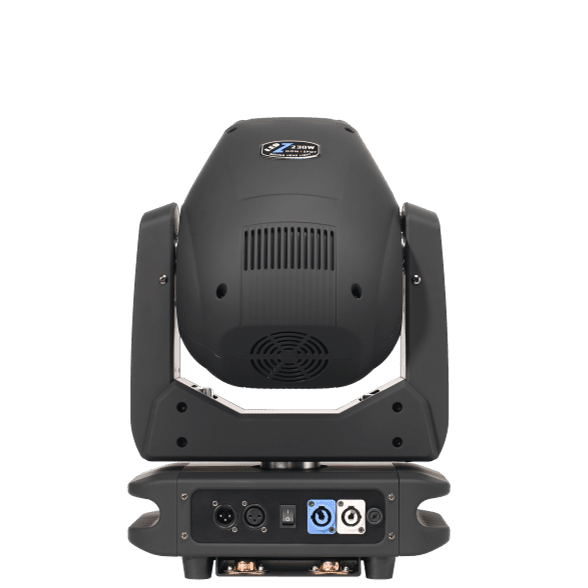

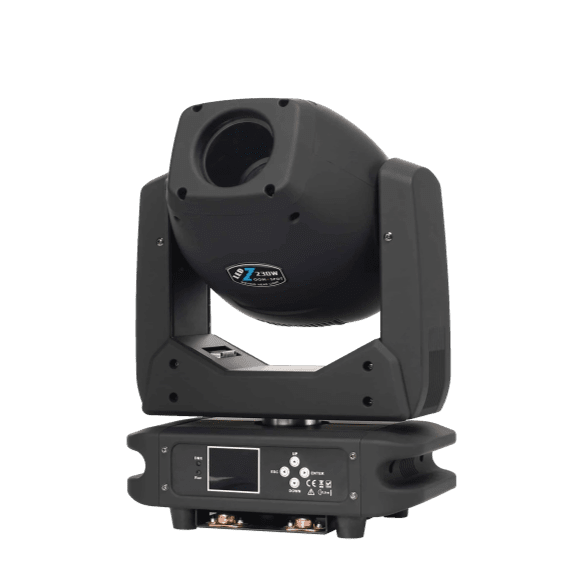

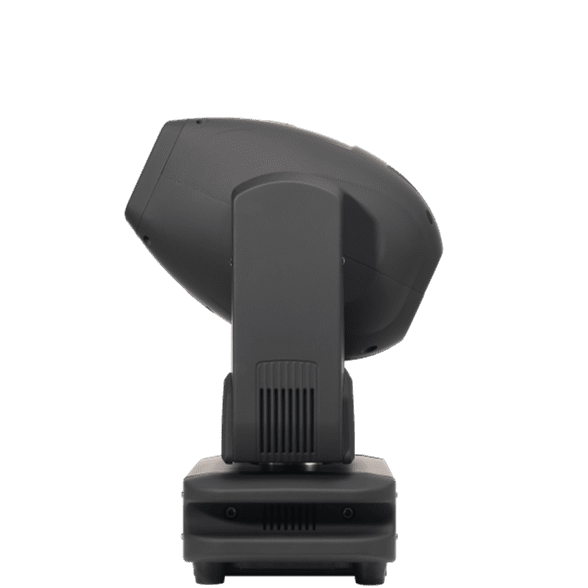

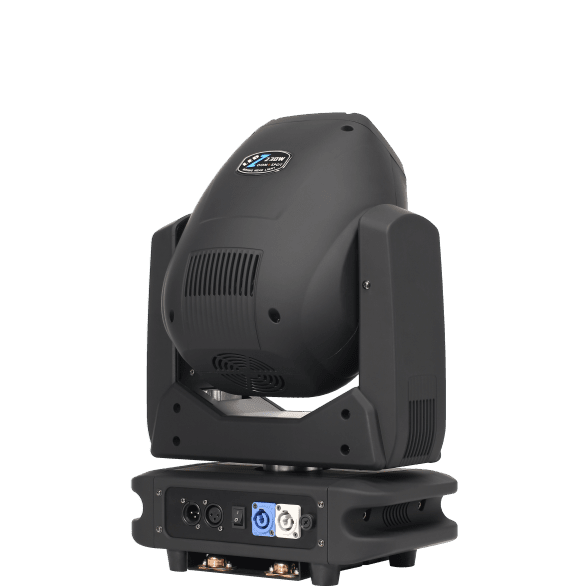

The AL230LS is a 230W LED Beam Spot Moving Head offering rotating gobos, dual prism effects, motorized zoom, and full DMX control—perfect for professional stage lighting setups.
| Specification | Value |
|---|---|
| Model | AL230LS |
| Input Voltage | AC100–240V, 50/60Hz |
| Power Consumption | 260W |
| Light Source | 230W LED |
| DMX Channels | 16 / 18 channels |
| Pan/Tilt | 540° / 270° (16-bit electric correction) |
| Color Wheel | 1 wheel with 7 colors + open |
| Static Gobos | 7 gobos + open |
| Rotating Gobos | 7 gobos + open |
| Effect Prisms | 1 rotating 6-facet, 1 rotating 5-facet |
| Prism Movement | Bi-directional rotation |
| Zoom Angle | 11°–25° mechanical zoom |
| Focus | Motorized focus |
| Dimmer | 0–100% linear dimming |
| Strobe | 0–20Hz electronic strobe |
| Control Mode | DMX512 / Auto-run / Master-Slave |
| Display | LCD display |
| Net Weight | 12.5 kg |
| Gross Weight | 14.7 kg |
| Packing Size | 50×40×40 cm |
Powerful 230W LED engine with high-efficiency beam optics
7 rotating gobos + 7 static gobos for layered projection creativity
Dual prism effects (6-facet & 5-facet) with bidirectional rotation
Smooth 11°–25° zoom range with motorized focus
Fast and precise 540° pan and 270° tilt movements
Supports multiple control modes: DMX512, Auto, Master/Slave
High-speed strobe and 0–100% dimming for dynamic transitions
The AL230LS 230W LED Beam Spot Moving Head combines precision optics, dynamic gobo and prism effects, and versatile control options into a compact, lightweight body. Engineered for professionals seeking punchy beam output with spot flexibility, it’s perfect for concerts, theaters, events, and house of worship lighting.
Concerts & Touring Events: Crisp beam effects and custom gobos for immersive stage visuals
Theater & Drama Lighting: Adaptable zoom and focus for character spotlighting and ambiance
Weddings & Event Production: Create romantic atmospheres or highlight key features
Church Lighting: Silent operation with rich color and gobo projection for sermons and services
Club & DJ Booths: Energy-packed beams and rotating prisms add depth to live shows
Carton 1 in 1:50×40×40 cm 14.7kgs
