Model
AL250LB

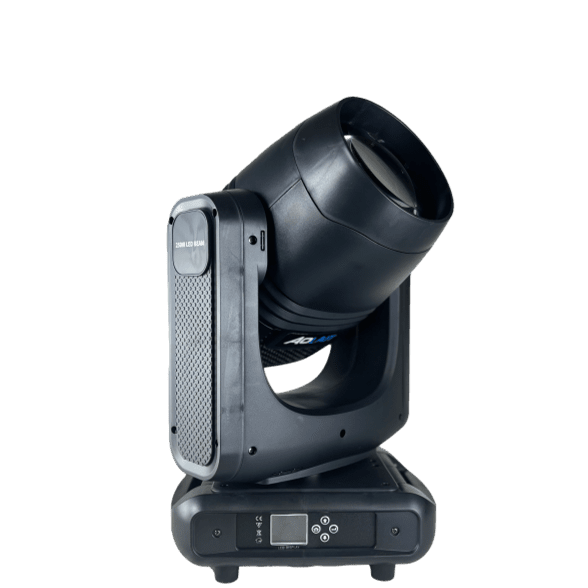

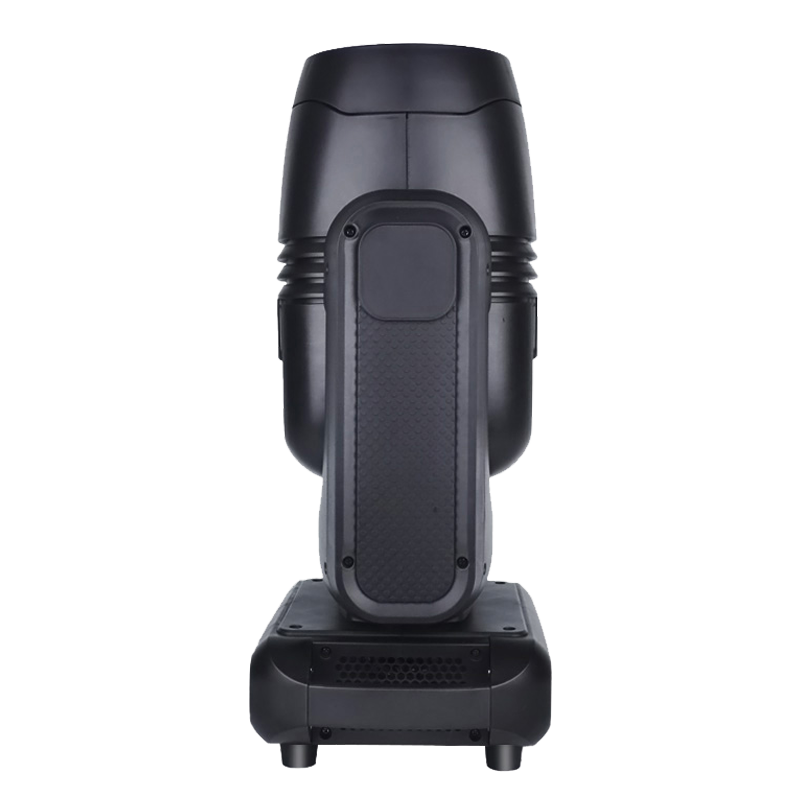

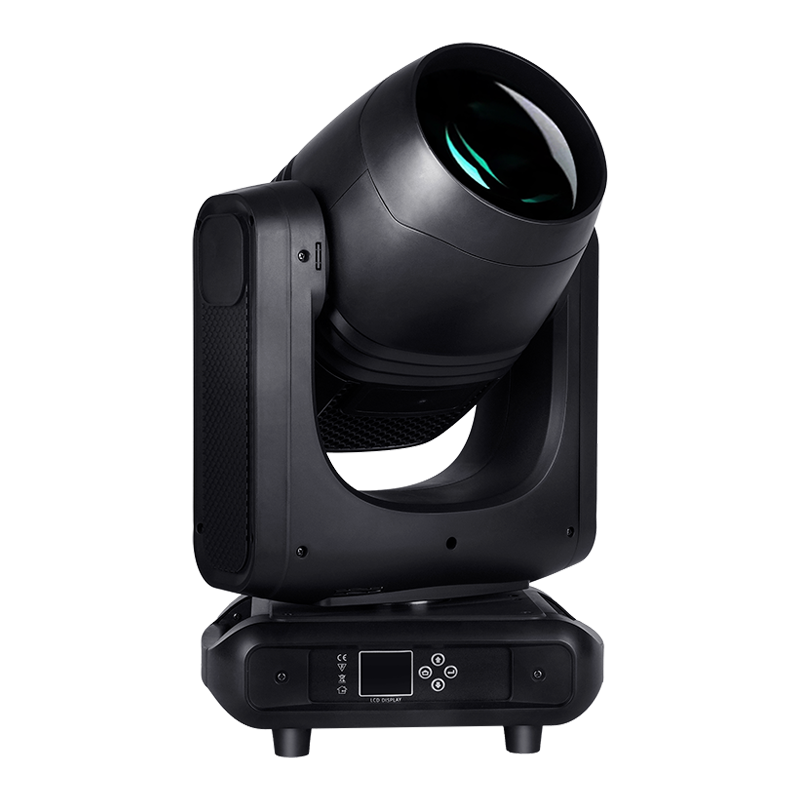

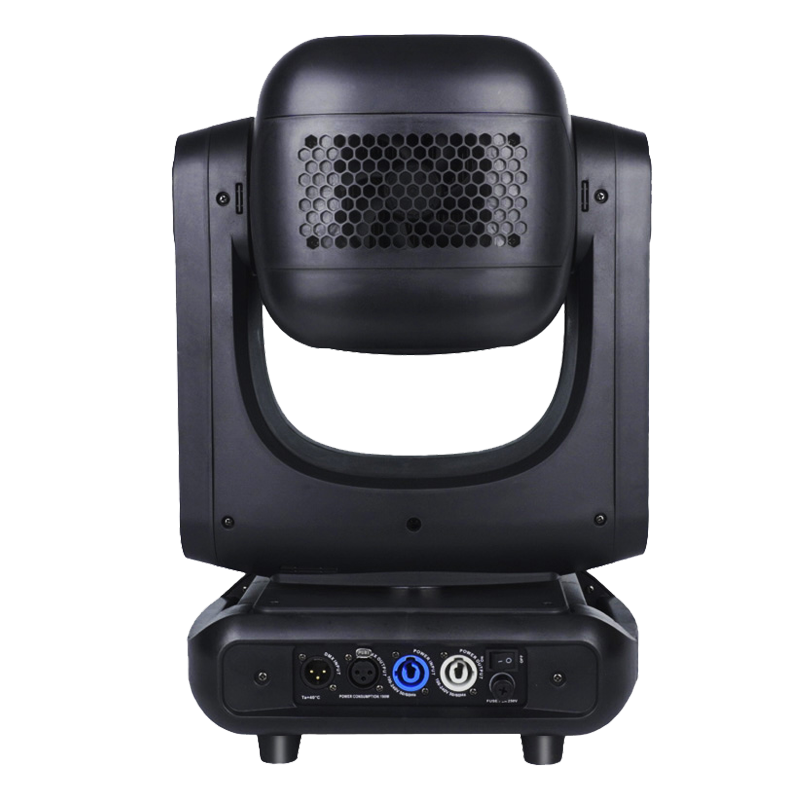

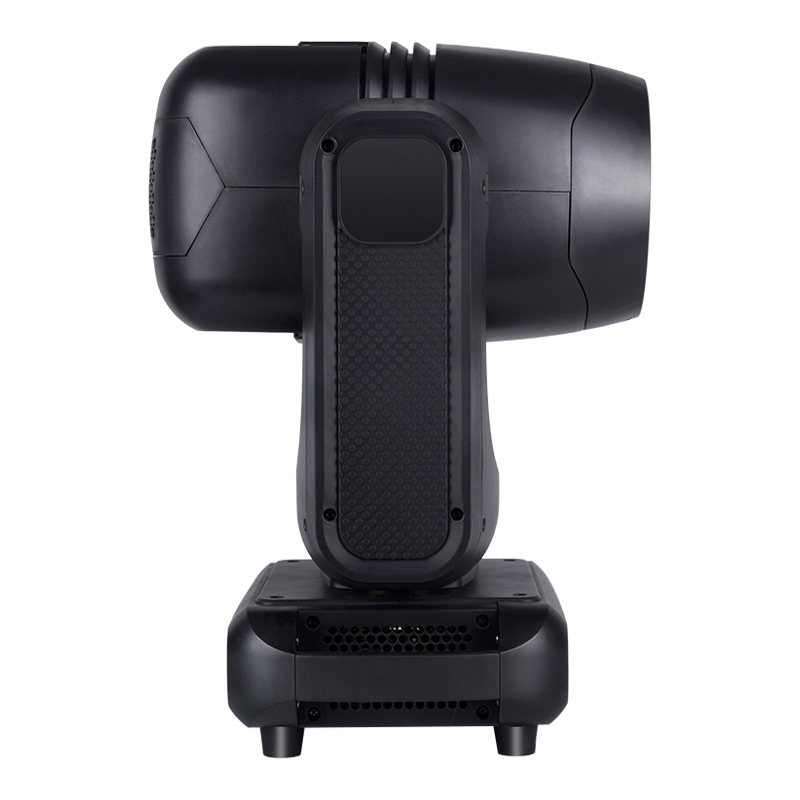

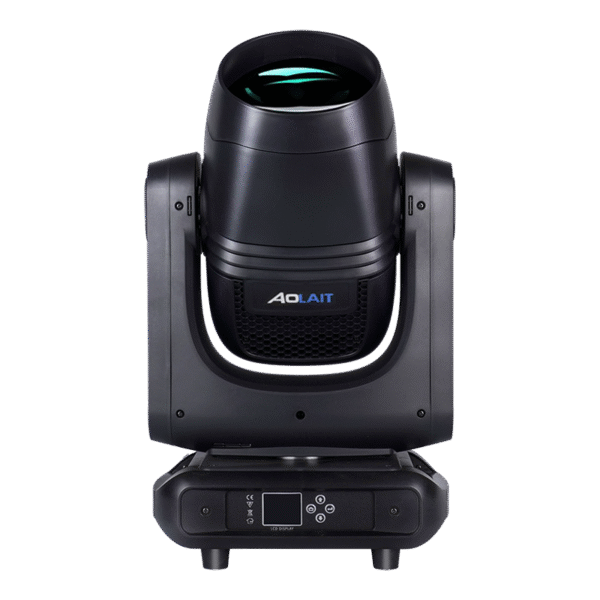

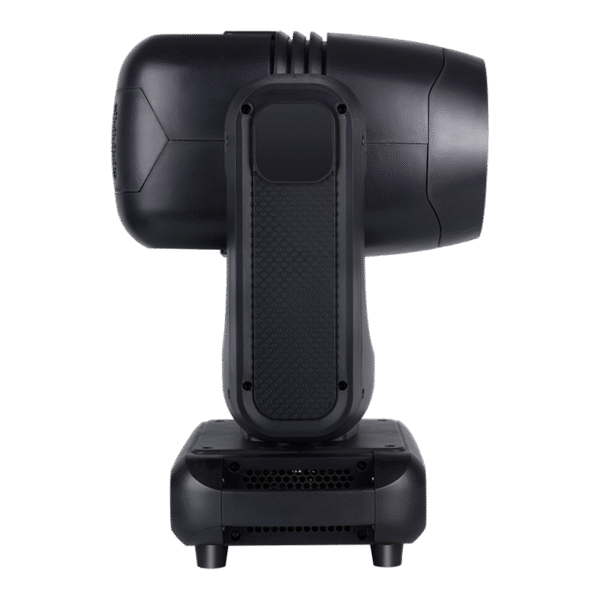

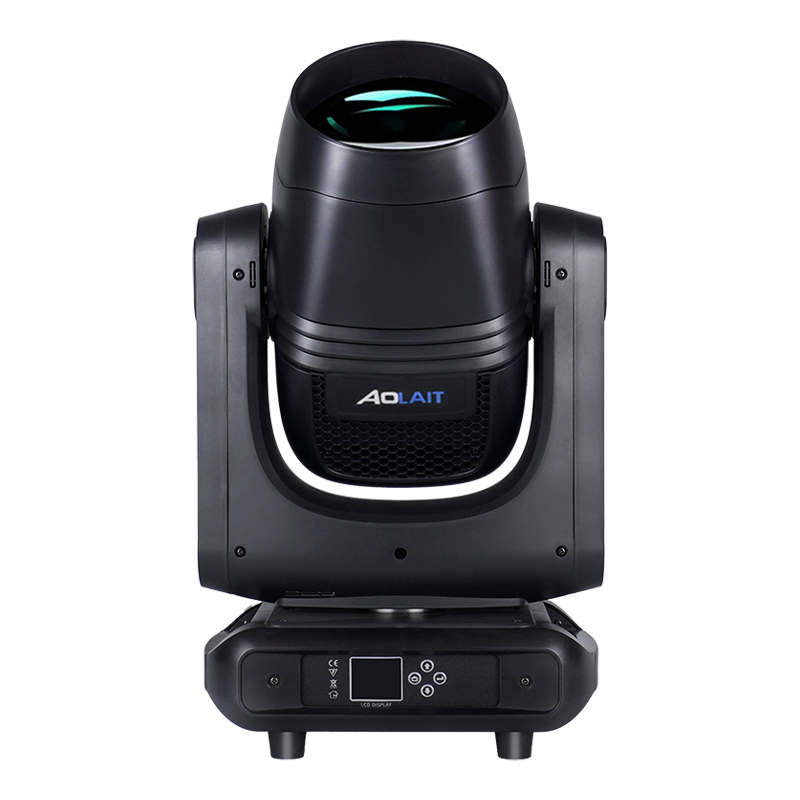

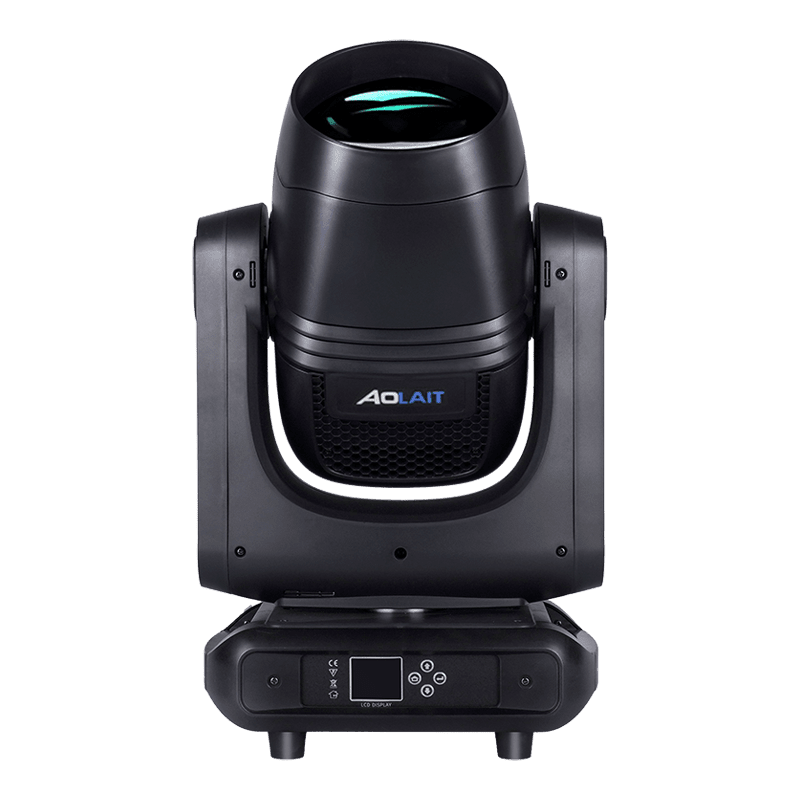

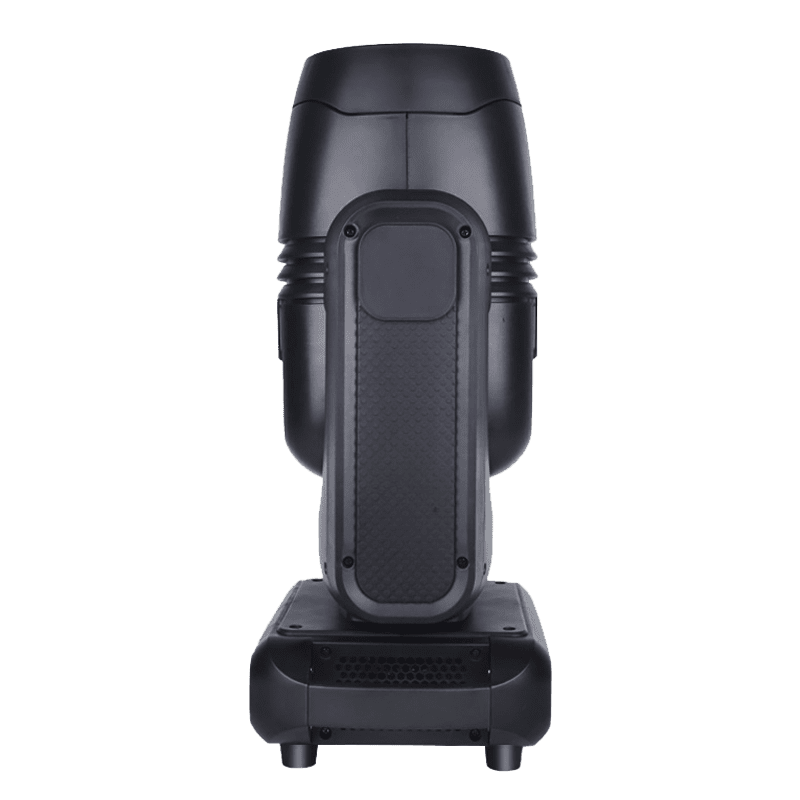

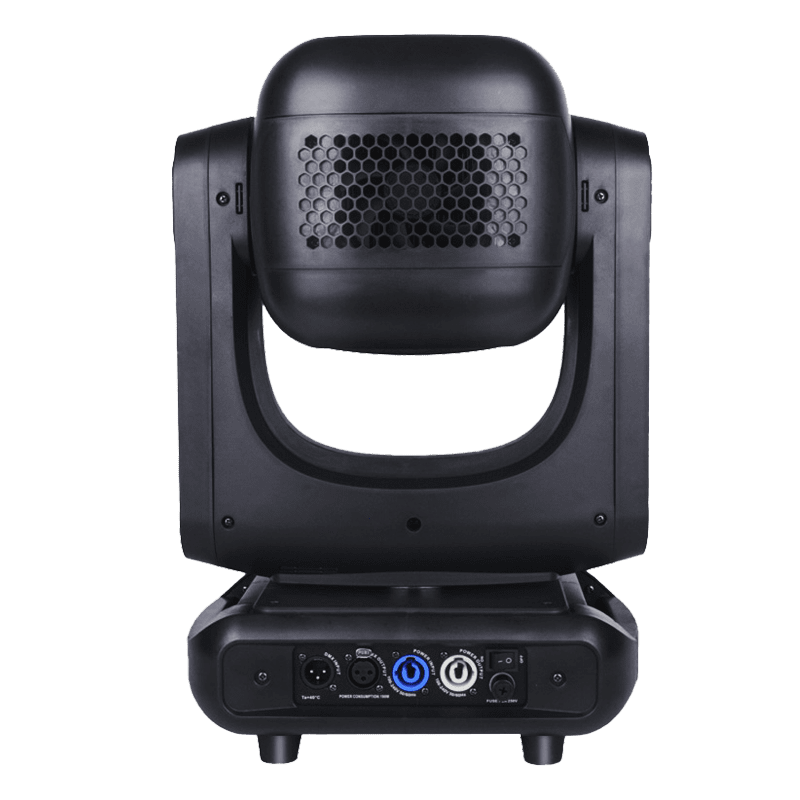

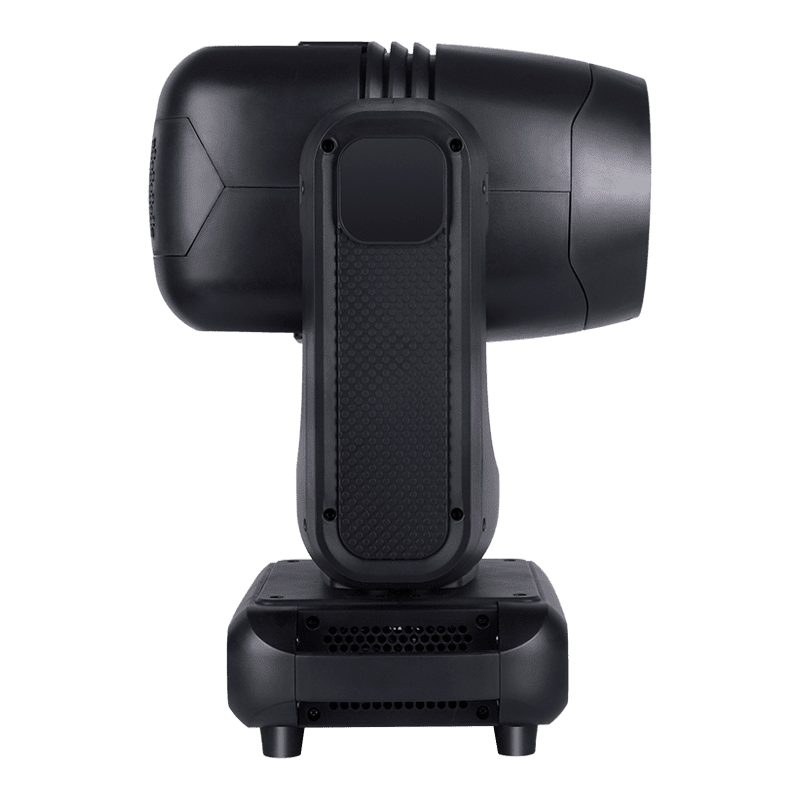

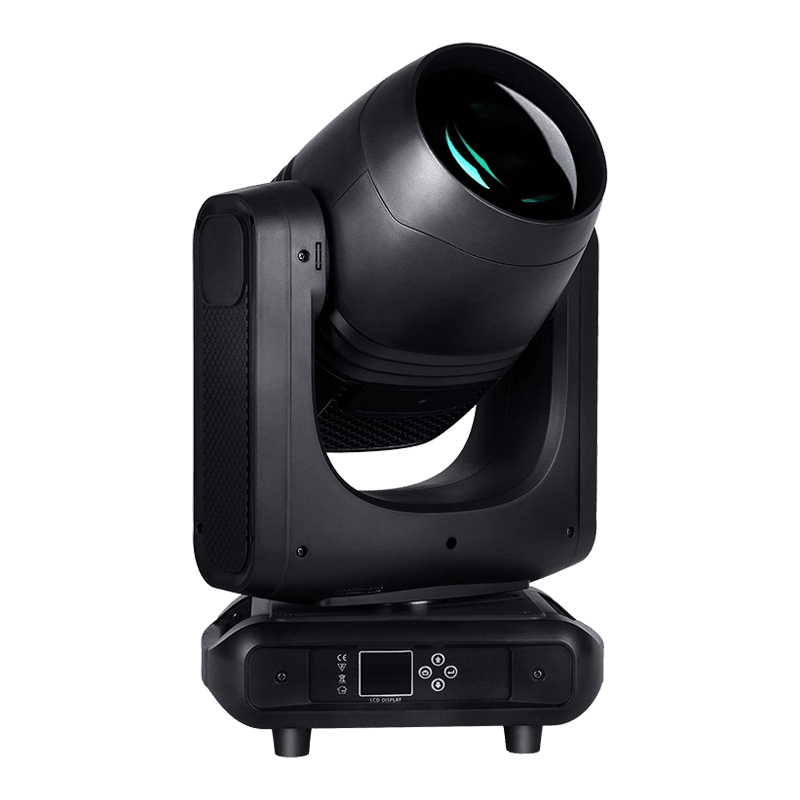

AL250LB is a 250W LED Beam Moving Head light,high-intensity beams, vivid colors, energy-efficient, ideal for professional stages and events.

GET A QUOTE
USER MANUAL

Technical Specifications

Function Highlights

Application Scenarios

Packaging Options

Product Details:

🛠️ Technical Specifications

Specification Value
Light Source 1x White LED Engine (7500K)
Power Rating 250W
Beam Angle 2° Ultra Narrow
Optical System Ø160mm High-Precision Front Lens
Focus Motorized Focus Lens
Color Wheel 14 Colors + Open
Gobo Wheel 17 Fixed Gobos + Open
Prism Dual Rotating Prisms (8-facet + 12-facet)
Frost Gradual Frost Filter
Dimming 16-bit Electronic Dimmer (4 Curves)
Strobe Electronic, up to 25 flashes/second
Pan/Tilt Movement 16-bit Resolution with 3-Phase Step Motors
Control Protocols DMX512 / RDM
DMX Channels 24 Channels
Operating Modes DMX, Master-Slave
Dimensions (L×W×H) 315 × 338 × 469 mm
Net Weight 14.1 kg
Gross Weight 15 kg (approx.)

💡 Function Highlights

    • Ultra Sharp 2° Beam
      Delivers penetrating beam effects ideal for large venues and aerial displays.

    • Advanced Dual Prisms
      Layered prism effects using 8-facet and 12-facet rotating wheels for dynamic visuals.

    • 17 Gobos + 14 Colors
      Create crisp patterns and vibrant scenes with interchangeable color and gobo wheels.

    • Smooth Dimming Control
      16-bit dimming with selectable dimming curves for seamless transitions and fades.

    • Motorized Precision Focus
      Adjust beam clarity and throw distance with electronic focus control.

    • High-Speed Pan/Tilt
      Equipped with 3-phase motors for fast, fluid, and precise movement on stage.

    • RDM & DMX Ready
      Supports USITT-standard DMX512 and Remote Device Management (RDM) for easy addressing and feedback.

🎯 Application Scenarios

The 250W LED Beam Moving Head by Aolait features a razor-sharp 2° beam, dual rotating prisms (8-facet & 12-facet), 14-color wheel, 17 gobos, and a powerful 7500K LED engine. Ideal for concerts, clubs, and live productions needing intense visual impact.

Concert & Arena Lighting
Create breathtaking beam effects across long distances with ultra-narrow projection.

Nightclubs & Live DJ Shows
Enhance atmosphere with quick movement, gobo effects, and intense color beams.

Theater Productions
Use focused lighting and precise positioning to create dramatic and immersive scenes.

Event Lighting Rentals
A versatile and lightweight fixture ideal for quick setup and high-impact visuals.

Permanent Installations
Perfect for stage trusses, dance floors, or architectural lighting needing sharp beam precision.

📦 Packaging Options

Carton 1 in 1: 55x44x43 G.W. 17KG
