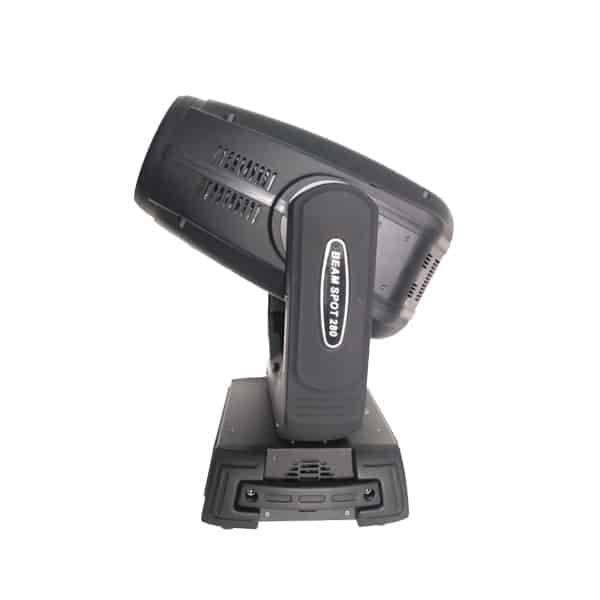

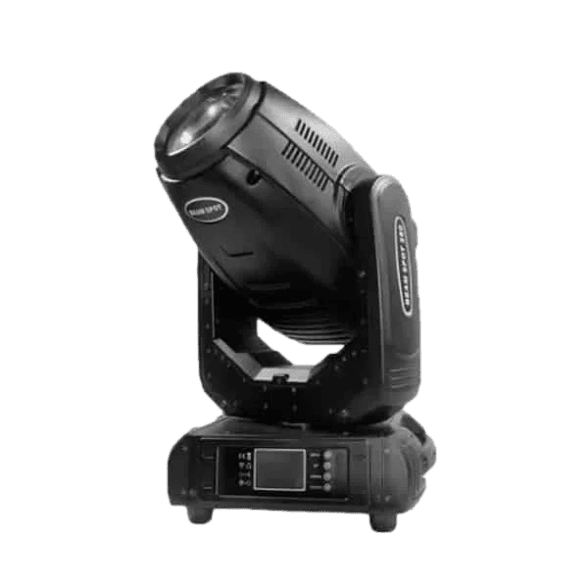

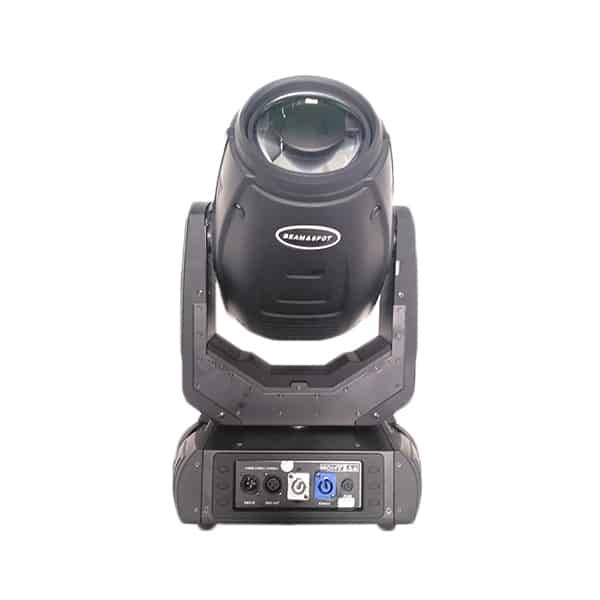

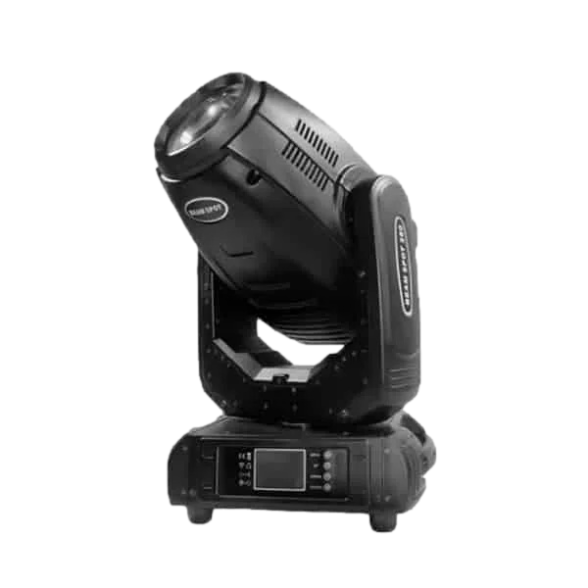

280W Beam Spot Wash Moving Head

Model
AL280RX

The AL280RX is a professional 280W hybrid moving head that delivers beam, spot, and wash effects in one unit. Powered by Osram, built for performance.

Product Details:

🛠️ Technical Specifications

Specification Value
Voltage AC100–240V, 50/60Hz
Power Consumption 420W
Light Source Philips 280W Lamp
Lifespan 50,000 Hours
Color Temperature 8000K
Color Wheel 1 Wheel with 13 Color Chips
Fixed Gobo Wheel 14 Gobos + Open
Rotating Gobo Wheel 9 Gobos + Open
Prisms 8-Facet & 6-Facet, Bi-directional Rotation
Beam Angle 3.8° to 25°
Dimmer 0–100% Mechanical + Free Dimming
Pan/Tilt Pan 540°, Tilt 270° (Speed Adjustable)
Control Protocol DMX512
DMX Channel Modes 16CH / 24CH
Effects Strobe Macro, Overheat Protection
IP Rating IP20 (Indoor Use)
Dimensions 523 × 337 × 570 mm
Net Weight 20 kg

💡 Function Highlights

  • 3-in-1 Versatility: Combines Beam (tight 3.8°), Spot (crisp projection), and Wash (soft edge) in one fixture.

  • High-Performance Light Engine: Equipped with a powerful Philips 280W lamp and 8000K output for vivid beams and gobos.

  • Dual Gobo Wheels: Includes fixed and rotating gobos for endless morphing patterns and logo projection.

  • Dual Rotating Prisms: 8-facet and 6-facet prisms create rich aerial effects with forward and reverse rotation.

  • Advanced Dimming & Strobe: Supports both mechanical and free dimming, plus macro strobe functions.

  • Flexible Movement: High-speed and smooth pan (540°) and tilt (270°) with adjustable speed for precise positioning.

  • Reliable & Durable: Overheat protection and optimized airflow system for long-term reliability.

🎯 Application Scenarios

Aolait AL280RX is a professional 3-in-1 hybrid moving head light that combines beam, spot, and wash functions in one compact fixture. Featuring an Philips 280W lamp, dual gobo wheels, dual rotating prisms, and DMX512 control, it delivers stunning effects for concerts, churches, clubs, and stage productions.

  • Concerts & Touring Events: Sharp beams and aerial effects enhance stage dynamics.

  • Worship Spaces: Versatile color and gobo projection for immersive church lighting.

  • Nightclubs & DJs: Prism rotation and macro strobe elevate dancefloor experiences.

  • Theater Productions: Dual gobo wheels for textured projection and spotlighting.

  • Corporate Events & Weddings: Elegant beam and wash effects for large venues and celebrations.
