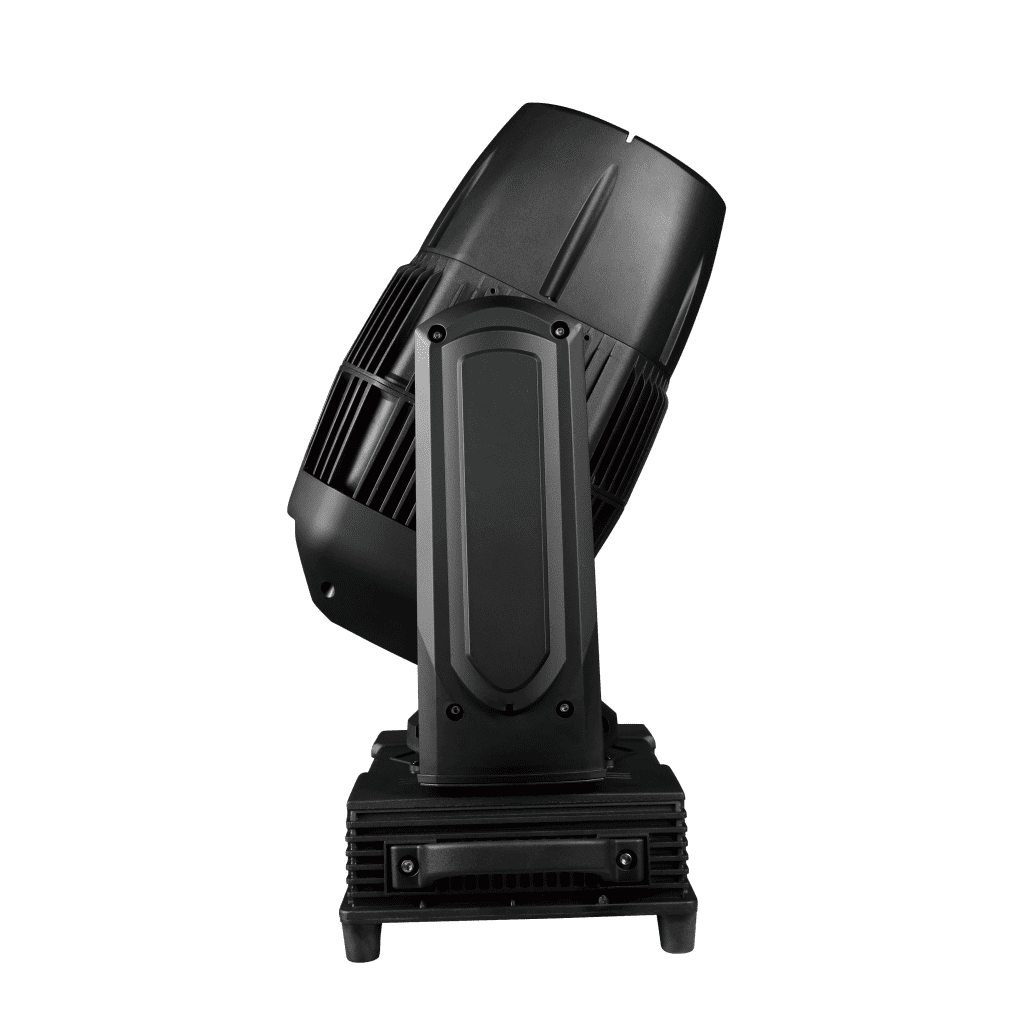

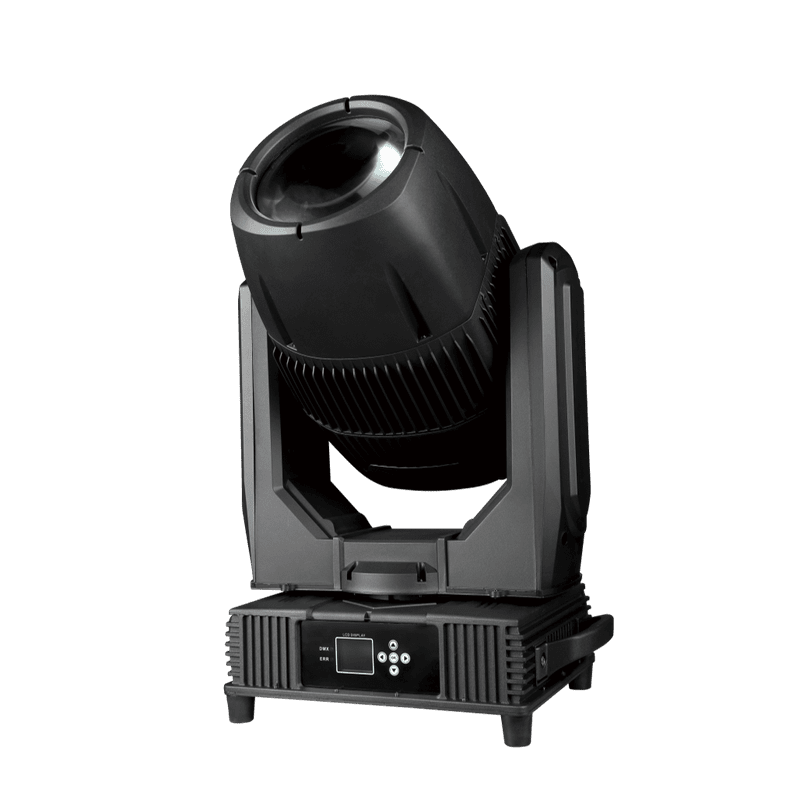

The AL420BP is a rugged 420W beam moving head with IP66 waterproof design, powerful prism effects, and sharp 1.9°–3° beam, perfect for outdoor events and stage shows.
| Specification | Value |
|---|---|
| Model | AL420BP |
| Light Source | 420W Discharge |
| Color Temperature | 8000K |
| Beam Angle | 1.9° – 3° |
| Lens | Glass Optical Lens |
| Total Power | 800W |
| Waterproof Rating | IP66 |
| Control Protocol | DMX512 |
| Pan / Tilt | 540° Horizontal / 270° Vertical |
| Color Wheel | 14 colors + white, bidirectional rainbow effect |
| Gobo Wheel | 17 fixed gobos + white |
| Prism | 8-facet prism + 8+16-facet dual prism, bidirectional rotating |
| Atomization | 1 Frost Filter |
| Dimming | 0–100% |
| Strobe | 1–13 flashes/second |
| Focus | Electronic focus |
| Display | LCD with sensitive buttons |
| Housing | Patented full PV + fiber plastic shell |
| Mounting | Hanging bracket included |
| Net Weight | 25 kg |
| Dimensions | 430 × 260 × 630 mm |
Outdoor IP66 Rated: Fully waterproof and dustproof for safe, long-lasting use in harsh environments.
Narrow Beam Effects: Precision beam from 1.9° to 3°, ideal for aerial FX and beam cutting.
Dual Prism System: Use 8-facet or 8+16 prisms independently or combined with bidirectional rotation.
Advanced Color Wheel: 14 vibrant colors + white with rainbow effect for dynamic transitions.
Fixed Gobos: 17 crisp, fixed gobos to create mid-air textures and surface projections.
Electronic Focus: Smooth and accurate focusing at any throw distance.
Compact and Rugged: Impact-resistant, patent-designed fiber-reinforced plastic shell for outdoor use.
The AL420BP is a powerful 420W outdoor beam moving head light, designed for high-impact shows in any weather. With a narrow 1.9°–3° beam angle, IP66-rated waterproof construction, multiple prisms, and stunning color effects, it’s ideal for outdoor concerts, theme parks, and architectural lighting.
Outdoor Festivals & Live Events
Project razor-sharp beams that cut through long distances in open-air venues.
Theme Parks & Landmarks
Create architectural lighting shows with rotating gobos, prisms, and weatherproof operation.
Stadium & Arena Events
Reliable beam fixture for intense mid-air effects during sports and concerts.
Touring & Production Rentals
Heavy-duty housing and lightweight build make it ideal for mobile outdoor setups.
Church Events & Worship Concerts
Deliver inspiring visuals with powerful, rain-safe performance.
