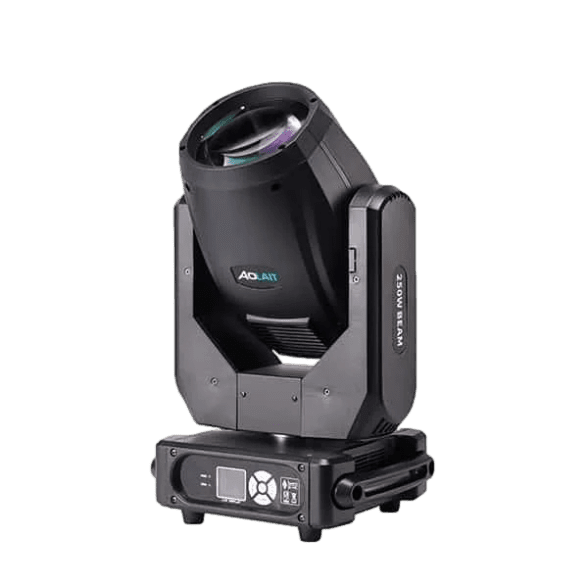

The AOLAIT AL250B is a 250W lamp beam moving head for indoor aerial beams, moving gobo patterns and rotating prism effects. It combines a PHILIPS lamp, a fixed gobo wheel and two rotating prisms in a fixture suited to club, event and rental rigs that need a dedicated beam effect.
Looking for an LED alternative? Explore the AL250LB LED beam moving head.
| Item | AL250B configuration |
|---|---|
| Light source / fixture consumption | PHILIPS 250W lamp / 300W |
| Colour system | 14 colours + open; six-colour plate |
| Gobos | 13 fixed gobos + open |
| Prisms | Two rotating prisms: 8-facet and honeycomb |
| Other effects | Gradual frost; strobe |
| Control | DMX512; 16 channels |
| Movement | 540° pan, 270° tilt; 8/16-bit resolution |
| Supply | AC 100–240V, 50/60Hz |
| Protection / use | IP20; dry indoor locations |
| Dimensions / net weight | 233 × 295 × 500 mm / 16 kg |
The fixed gobo wheel gives you a selection of patterns, while the 8-facet and honeycomb prisms provide different multi-beam textures. Use movement and colour changes for stage accents and dance-floor effects. Gradual frost softens the output when the cue needs a less defined edge.
For aerial effects, include the venue’s haze policy and ambient light in your selection. For a pattern on a surface, give us the projection distance and required image size. Ask for a demonstration at comparable settings before selecting the fixture for a particular throw or visual effect.
The AL250B uses a replaceable lamp. Plan service access and include the replacement-lamp reference in your order requirements. Ask for the lamp replacement procedure and a spare-lamp option for your fleet.
To compare lamp and LED beam output, request measurements at the same distance and beam setting with matching colour and effect conditions. Use those results alongside the required beam size, maintenance plan and console setup.
Patch the AL250B with its own 16-channel fixture profile. Base electrical planning on fixture consumption and the proposed circuit arrangement, rather than on lamp wattage alone. Have a qualified installer check mounting hardware, secondary safety attachments and clearance throughout the head’s movement.
Use this IP20 model in dry indoor locations. Keep ventilation clear and provide access for servicing after the fixture has cooled. Confirm the mounting arrangement, operating limits and accessories against the instructions supplied with your order.
Read the Beam optics and light-source guide for help choosing a beam effect, or compare other models in the Lamp Moving Head range.
No. AL250B is the lamp beam model on this page. AL250LB is an LED beam model with its own optics, effects and control configuration. Use the full model number when requesting a quote or console profile.
Use the AL250B channel chart to select or build the console profile. Its 16-channel configuration must match the functions in the fixture; a profile for a different model may control the wrong functions.
AL250B has an IP20 rating and requires a dry indoor environment. For an exposed outdoor rig, specify the weather conditions and ask for a suitable outdoor beam model.
Confirm the required effects, working distance, console profile, replacement-lamp reference and service access. Ask for the packing dimensions, mounting accessories and spare-parts options to be included in the quotation.
Send your quantity, venue, projection distance, control system and delivery country. Specify the AL250B lamp model and describe the prism or gobo effects you want to achieve.
| Specification | Value |
|---|---|
| Model | AL250B |
| Voltage | AC100-240V 50/60Hz |
| Power Consumption | 300W |
| Light Source | PHILIPS 250W Lamp |
| Lifespan | 1500 hours |
| Ballast | Electronic ballast |
| Color Plate | 1 Color wheel with 14 colors + open, 1 six-color plate |
| Gobo Plate | 1 Fixed gobo wheel with 13 gobos + open |
| Prism | Two rotating prisms: 8-facet and honeycomb |
| Frost | Gradual frost effect |
| Strobe | 0.5–14 flashes/sec, multiple effects |
| Optics | High-precision glass lens |
| Control Mode | Standard DMX512 |
| DMX Channels | 16CH |
| Display | LCD (Chinese/English optional) |
| Pan/Tilt Movement | Pan 540°, Tilt 270°, 8/16-bit resolution |
| IP Rating | IP20 |
| Product Dimensions | 233 x 295 x 500 mm |
| Net Weight | 16 kg |
PHILIPS 250W Lamp: Delivers intense, focused beams with crisp edges.
Double Rotating Prisms: Create layered and multidimensional beam effects.
Rich Color and Gobo Wheels: 14 vivid colors and 13 static gobos for diverse visuals.
Glass Optical Lens: Ensures high clarity and beam sharpness.
Compact and Tour-Ready: Ideal for fixed installations and mobile productions.
User-Friendly Interface: LCD menu with dual-language support.
The AL250B 250W Beam Moving Head Light features a powerful PHILIPS 250W lamp, dual rotating prisms, and sharp optics, delivering dynamic beam effects for concerts, clubs, and events. Built with electronic ballast and a professional DMX control system, it’s a cost-effective yet high-performance fixture ideal for stage and touring applications.
Live Concerts & Touring Stages: Strong beam projection and aerial effects that cut through haze.
Nightclubs & DJ Events: Energetic prism effects for dance floors and party scenes.
Theater & Drama Productions: Highlight stage areas or create dynamic transitions.
Church & Worship Services: Enhance the spiritual atmosphere with moving beam visuals.
Weddings & Corporate Events: Add professional lighting accents and programmable shows.
Rental Companies: Reliable choice with long-lasting optics and minimal maintenance.
