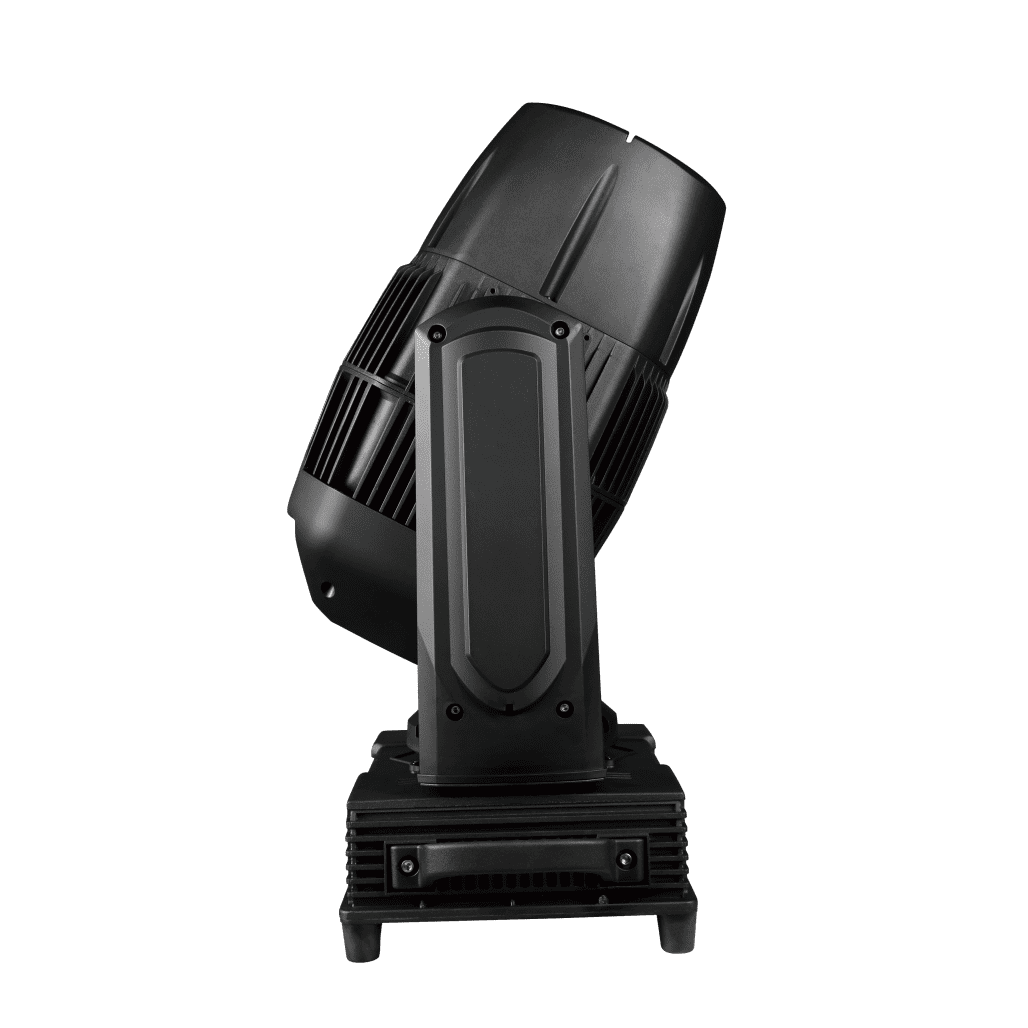

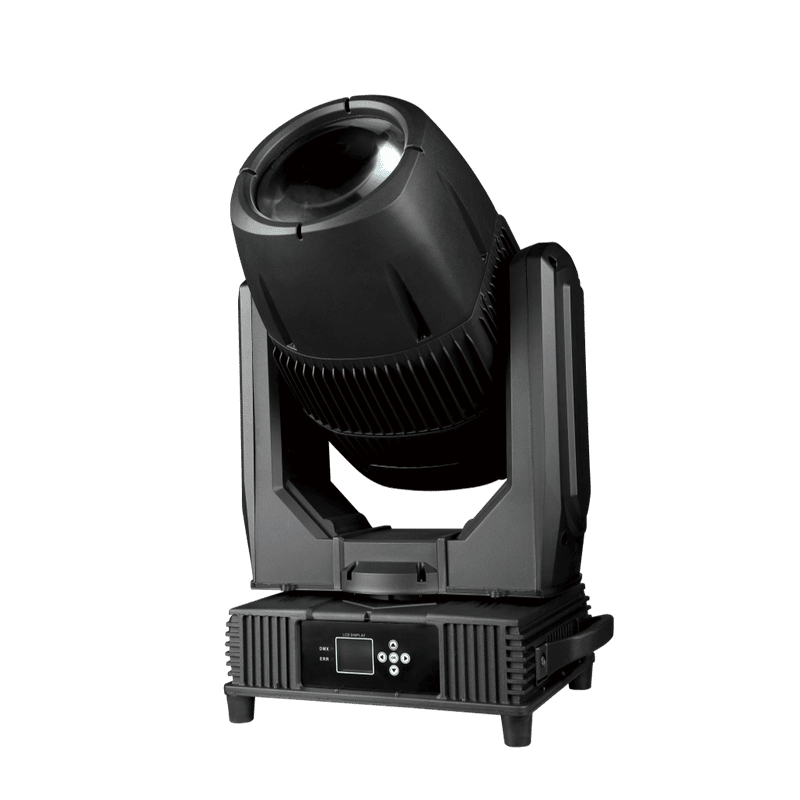

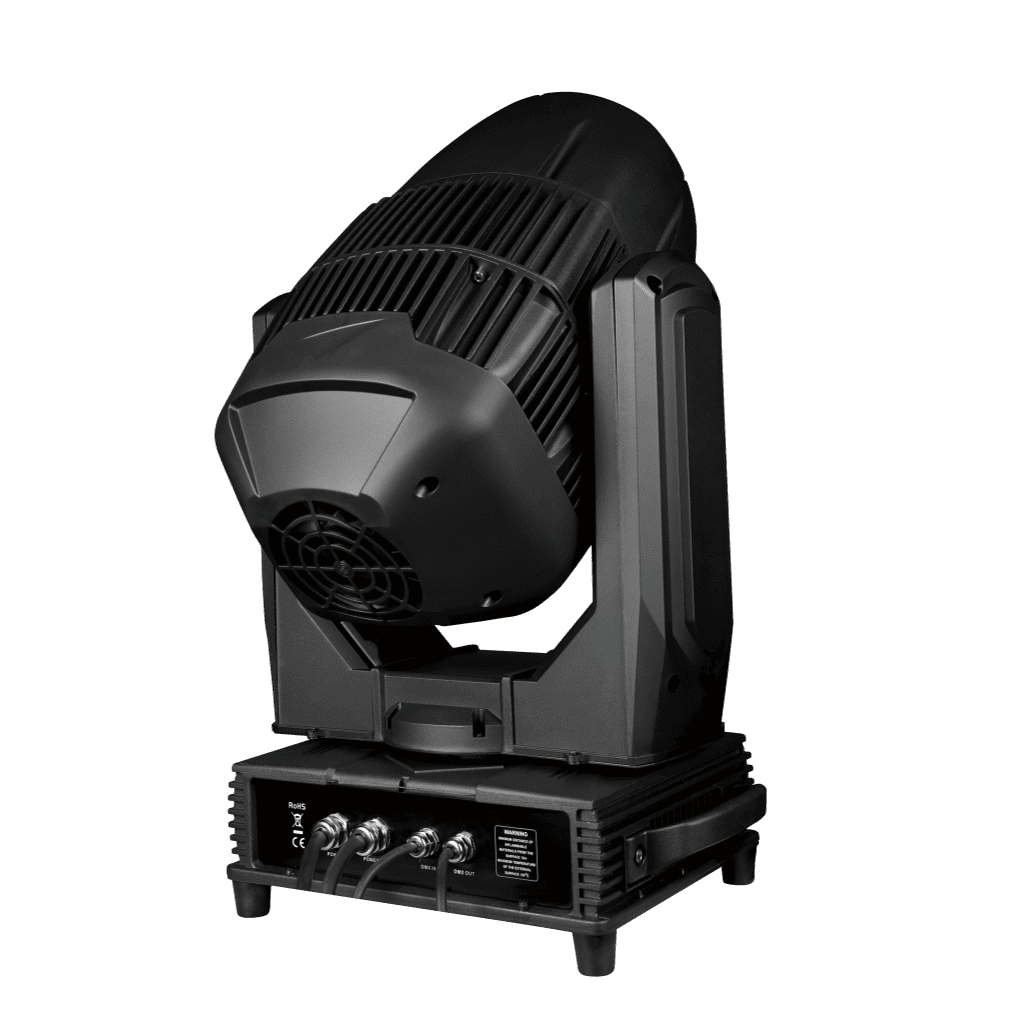

The AL420BX from Aolait is a weatherproof 420W moving head with beam, spot, and wash functionality, dual gobos, electronic zoom and focus, perfect for demanding outdoor applications.
| Specification | Value |
|---|---|
| Model | AL420BX |
| Light Source | 420W High-Output Module |
| Color Temperature | 8000K |
| Beam Angle | 2° – 35° |
| Lens | High-precision Glass Optical Lens |
| Total Power | 650W |
| Waterproof Rating | IP66 |
| Control Protocol | DMX512 |
| DMX Channels | 17 / 21 CH |
| Pan / Tilt | 540° Horizontal / 270° Vertical |
| Color Wheel | 11 colors + white |
| Static Gobo Wheel | 14 fixed gobos + open |
| Rotating Gobo Wheel | 9 rotating gobos + open |
| Prism | 8-facet prism |
| Atomization | 1 frost filter |
| Dimming | 0–100% linear |
| Strobe | 1–13 flashes/second |
| Focus | Electronic focus |
| Display | LCD with sensitive touch buttons |
| Housing | PV + Cast Aluminum, patented waterproof design |
| Mounting | Hanging bracket included |
| Net Weight | 26 kg |
| Dimensions | 430 × 260 × 630 mm |
3-in-1 Hybrid Fixture: Beam, spot, and wash in one unit with wide zoom range and multi-function effects.
IP66-Rated Housing: Designed for permanent or touring outdoor use with extreme weather resistance.
Dual Gobo Wheels: Combines fixed and rotating gobos for advanced pattern layering and effects.
Smooth Dimmer & Focus: 0–100% linear dimming with sharp electronic focus across all zoom levels.
Wide Zoom Angle: Narrow 2° beam for aerial FX or 35° wash for coverage and soft looks.
Glass Lens System: Crystal-clear optical lens ensures sharp, high-intensity projection.
The AL420BX is a hybrid 3-in-1 beam, spot, and wash moving head with 420W output and IP66-rated waterproof protection. Designed for demanding outdoor environments, it features a full glass optical lens, dual gobo wheels, electronic focus, and wide zoom from 2° to 35°.
Outdoor Concerts & Festivals
Built to deliver full beam/spot/wash flexibility under rain or shine.
Architectural & Landscape Lighting
Use rotating gobos and wide zoom to project logos or textures on buildings or terrain.
Theme Parks & Event Venues
Permanent installs benefit from IP66-rated reliability and versatile light modes.
Theater & Touring Shows
A true all-in-one fixture ideal for complex scenes and synchronized programming.
Weddings, Churches, & Corporate Events
Switch between sharp beams and soft color wash for elegant transitions in high-end productions.
