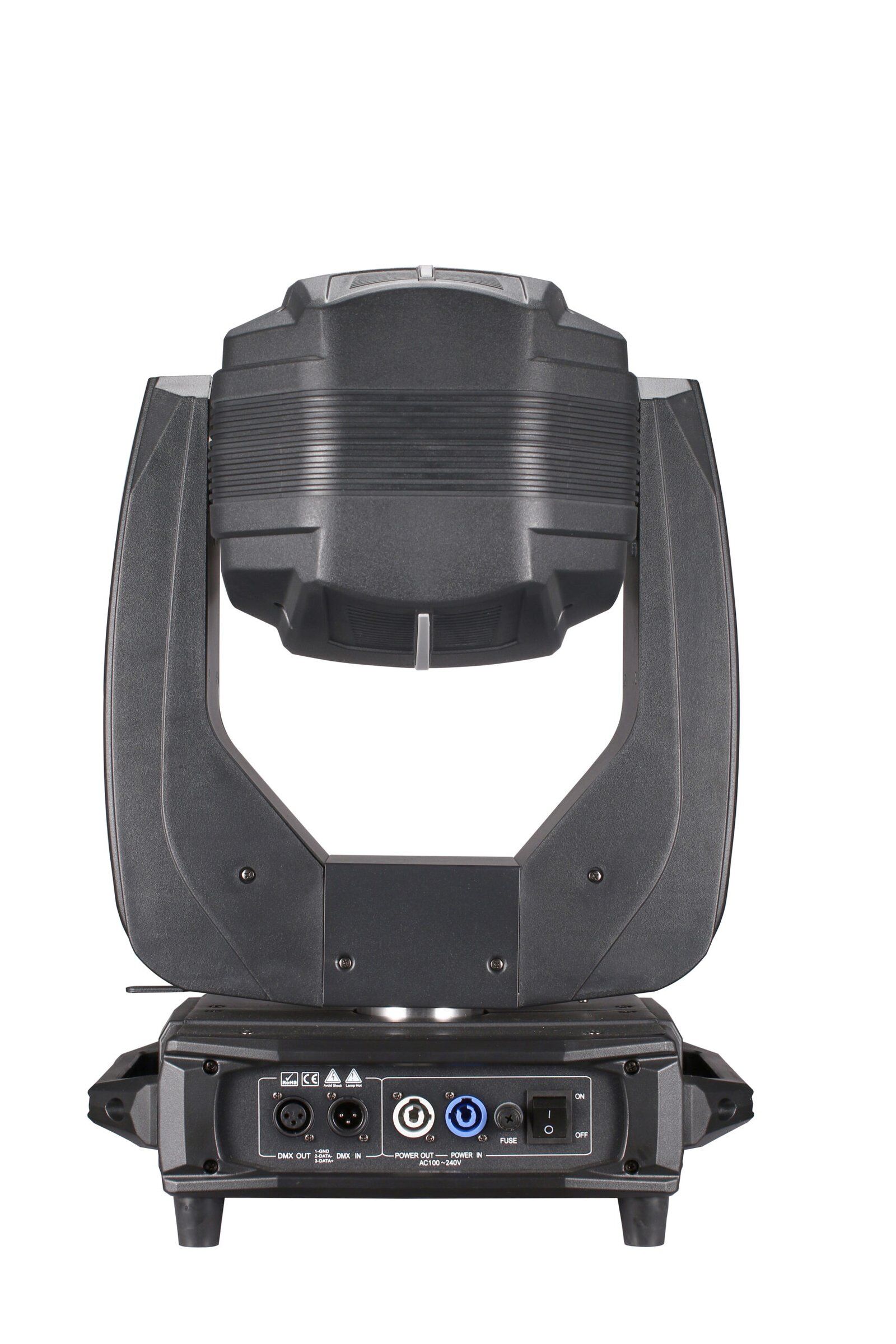

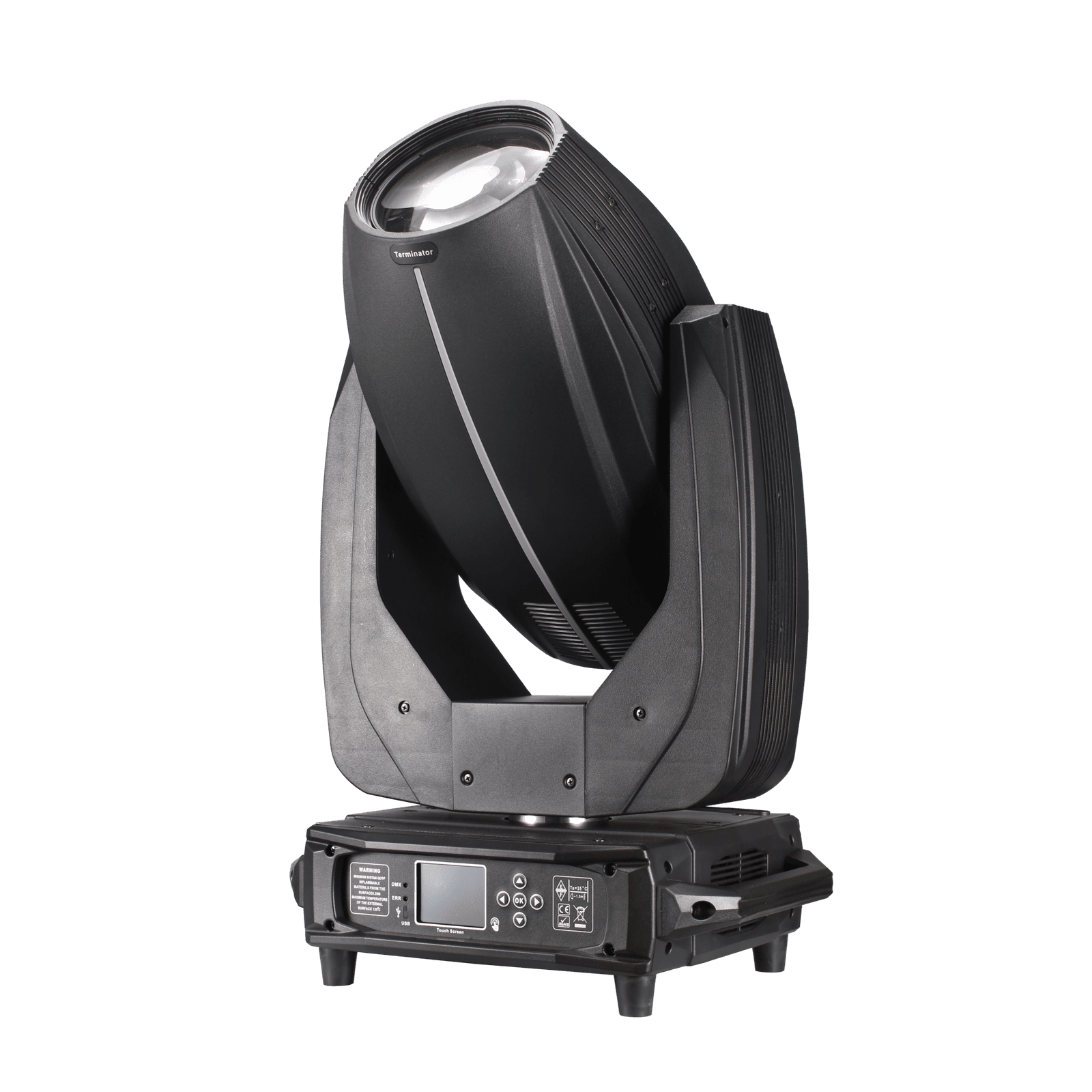

he AL480RX is a 480W Beam Spot Wash CMY moving head with Panasonic lamp, advanced gobos, CMY color mixing, dual color wheels, and double stacked prisms.
| Specification | Value |
|---|---|
| Model | AL480RX |
| Power Supply | AC220V |
| Frequency | 50Hz |
| Total Power | 610W |
| Fuse | 7A |
| Ballast | 380V Electronic Ballast |
| Light Source | Panasonic Lamp |
| Bulb Power | 481W |
| Color Temperature | 7800K |
| Lifespan | 1500 Hours |
| CTO | Linear CTO: 2700K–7800K |
| Motor Quantity | 15 Silent Motors + XY 3-phase Motors |
| Dimming | 0–100% Smooth Linear |
| CMY Mixing | Linear CMY Color Mixing |
| Fixed Color Disc 1 | White + 5 Colors |
| Fixed Color Disc 2 | White + 5 Colors |
| Atomization | 1 Independent Frost Filter |
| Static Gobo Wheel | 4 White Spots + 8 Gobos |
| Dynamic Gobo Wheel | White + Aperture + 3 Patterns + 3 FX Gobos |
| Rotating Gobo Wheel | White + 7 Glass Gobos |
| Prisms | 8-facet & 16-facet, stackable (up to 24), independent rotation |
| Control Channels | 24CH |
| Control Signal | DMX512 Standard |
| Housing Material | High-temp Resistant Plastic |
| IP Rating | IP20 |
| Fixture Size | 395 × 293 × 700 mm |
| Net Weight | 20.8 kg |
Panasonic 481W Lamp: Offers brilliant beam intensity with high light efficiency.
Double Color Wheels + CMY: Full color flexibility with linear CMY and two fixed discs.
Advanced Gobo System: Static, dynamic, and rotating gobos for layered aerials and textures.
Dual Prisms: Stackable prisms with bi-directional, independent rotation for creative FX.
Linear CTO Adjustment: Seamless warm-to-cool transitions from 2700K to 7800K.
Silent Operation: 15 noise-reducing motors, ideal for indoor performance venues.
The AL550RX is a high-performance 3-in-1 Beam Spot Wash moving head light powered by the PHILIPS MSD Silver 480W LL lamp. With a zoom range from 1.6° beam to 44° wash, dual rotating prisms, full CMY mixing, and sharp aerial gobos, it’s designed for advanced stage applications requiring precision, creativity, and power.
Large Concerts & Touring Shows: High-output beam cuts through ambient light and haze.
Theater & Drama Productions: Creative gobo layering, smooth color fades, and quiet motors.
Worship & Church Events: Frosted wash and accurate dimming for mood and focus lighting.
Luxury Weddings & Corporate Shows: Elegant prism effects and stacked gobos for visual drama.
Nightclubs & Festivals: Dual prism stacks and multi-pattern gobos enhance light shows.
Rental Companies: Efficient lamp performance with durable and versatile housing.
Carton 1 in 1 :53x45x65cm GW:26KG
Flight case 2 in 1:79.x46x89cm GW:75KG
