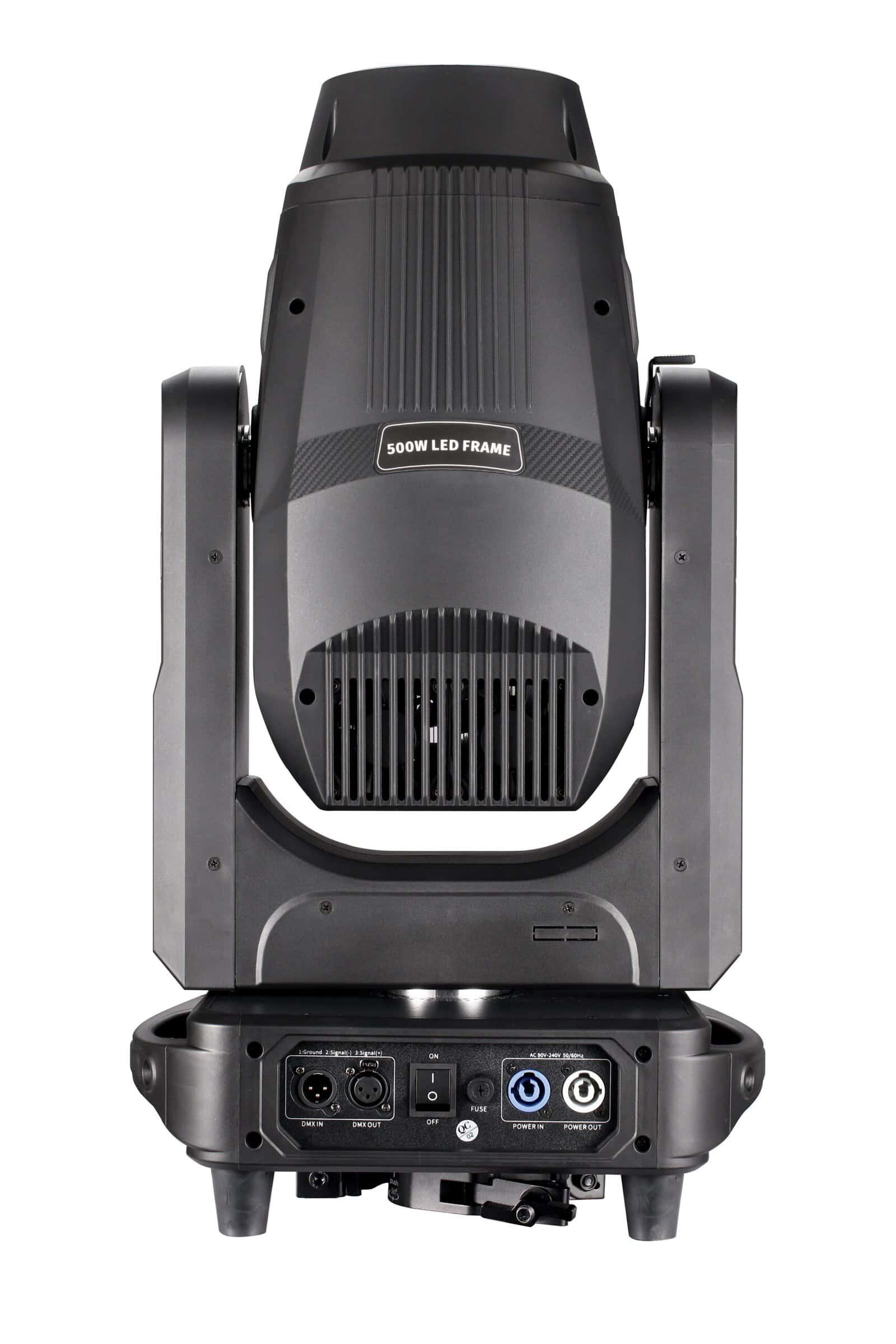

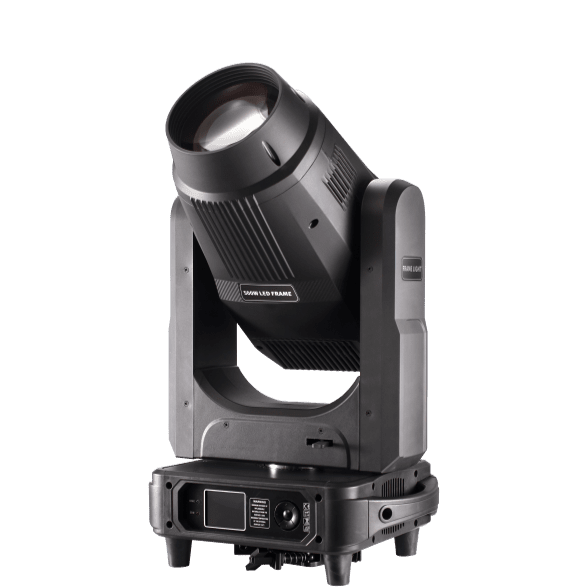

AL500LSF is a new generation led hybrid moving head light. It’s a combination of Beam Spot Wash, CMY and Profile Moving head. With patented framing moudule which can rotate +/-90°, it can cut any triangle or square shapes.
| Specification | Value |
|---|---|
| Product Model | AL500LSF |
| Input Voltage | AC100–240V, 50/60Hz |
| Rated Power | 600W |
| LED Source | 1 x 450W High-Efficiency White LED |
| LED Lifespan | 20,000 hours |
| Pan/Tilt Range | 540° / 270° (16-bit precision) |
| Zoom Range | 6°–48° motorized |
| Dimming | 0–100% linear |
| Color Wheel | 6 colors + white with half-color effects |
| Color Mixing | Linear CMY color mixing system |
| Framing System | 4 rotatable shutter blades (±90°) |
| Frost | 1 independent frost filter |
| Channel Mode | 26 channels (DMX512 compatible) |
| Working Temperature | -20°C to 40°C |
| Protection Rating | IP20 (indoor use) |
| Net Weight | 23 kg |
| Dimensions (L x W x H) | 38 × 27 × 67 cm |
All-in-One Profile Design: Combines Beam, Spot, Wash, and Framing in a single moving head fixture.
450W LED Engine: Delivers intense brightness, long life, and high color fidelity.
CMY Linear Color Mixing: Smooth transitions for creating rich, saturated colors.
Motorized Zoom (6–48°): Covers both narrow beams and wide washes effortlessly.
Advanced Framing Shutters: 4 individual blades for precise shape cutting and projection.
Soft Frost Effect: Achieves natural wash transitions with excellent diffusion.
Professional DMX Control: 26CH mode with precision pan/tilt for smooth movement.
The AL500LSF is a powerful 500W LED Beam Spot Wash Moving Head Profile Light, engineered for professional stage applications. It features a CMY color mixing system, advanced framing shutters, smooth linear dimming, and a wide 6–48° motorized zoom. With sharp beam output, high color rendering, and durable build, it’s perfect for concerts, theaters, churches, and events demanding precision and flexibility.
Theater & Performing Arts: Shape and texture your stage with advanced framing and color mixing.
Live Concerts: Dynamic beam and spot effects synchronized with audio and motion.
Worship Venues: Smooth washes and soft color effects suitable for stage sermons and live streaming.
TV Studios & Filming: Silent operation with precision lighting control for interviews or sets.
Corporate Events: Versatile lighting fixture for award shows, launches, and keynote stages.
