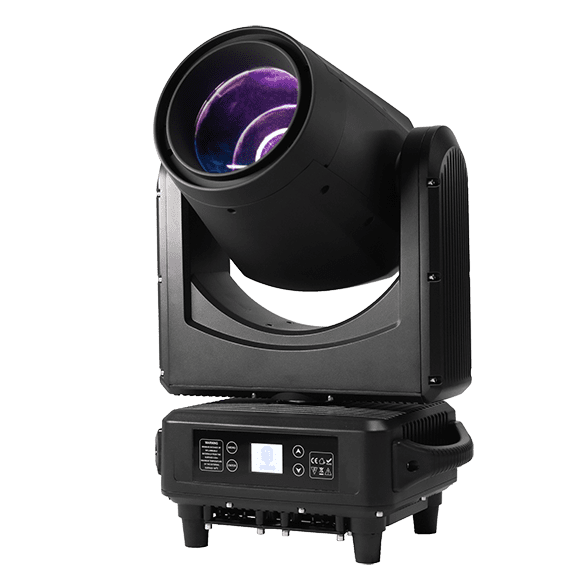

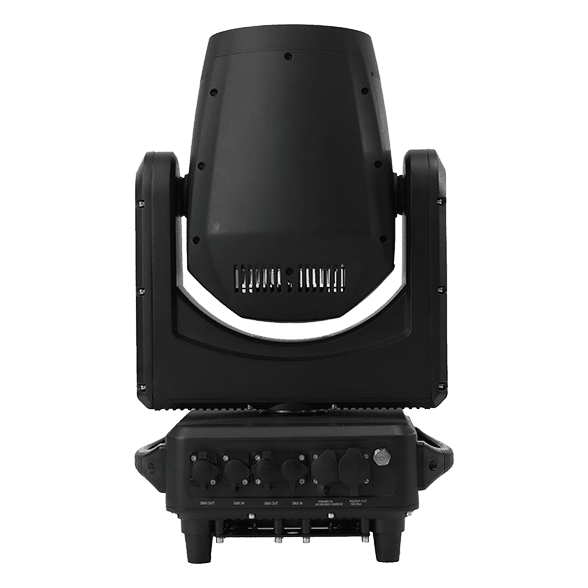

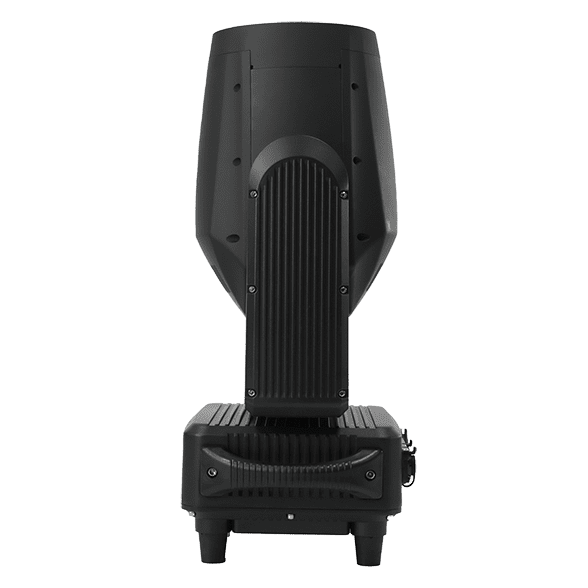

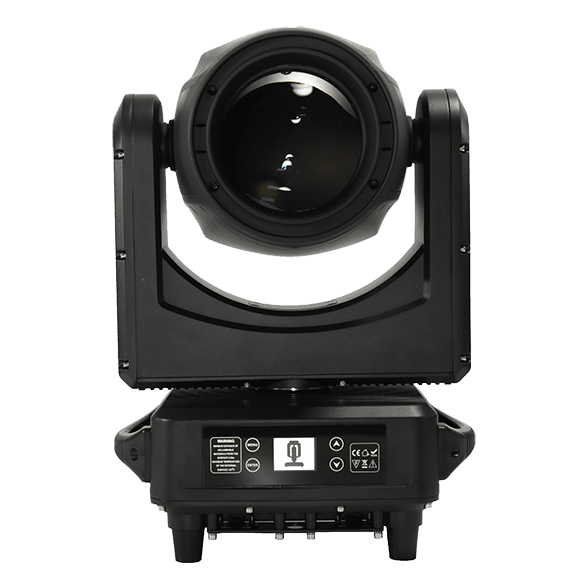

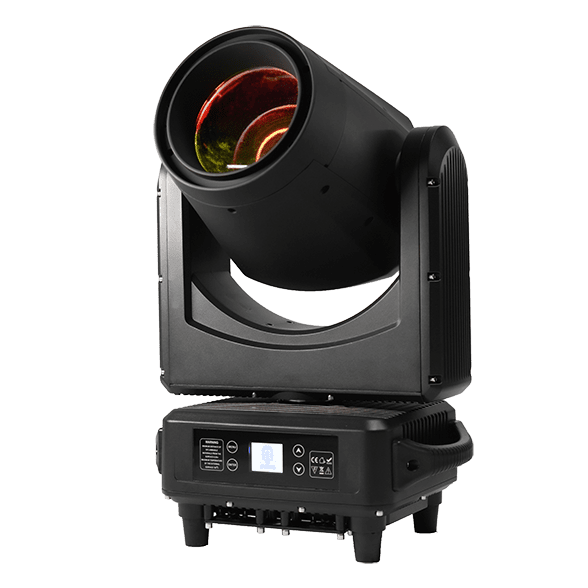

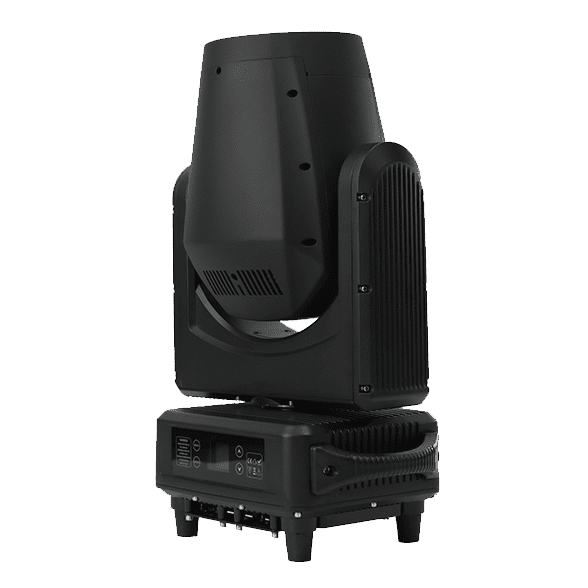

50W Mini Laser Beam Moving Head Light IP65

Category Led Beam Moving Head

Model

ALP50B

ALP50B is a mini 50W laser-style beam moving head with IP65 rating, 1° beam angle, rotating prisms, and rich gobo/color effects — ideal for outdoor and mobile lighting.

Technical Specifications

Function Highlights

Application Scenarios

Packaging Options

Product Details:

🛠️ Technical Specifications

Specification	Value
Model	ALP50B
Voltage	AC100–240V, 50/60Hz
Power Consumption	85W
Light Source	50W High-Brightness Module
Color Temperature	7500K
LED Lifetime	12,000 Hours
Pan / Tilt Movement	Pan: 540°, Tilt: Auto Error Correction (XY)
Color Wheel	1 Wheel with 13 Bi-directional Color Filters + Open + 1 Six-Color Filter
Static Gobo Wheel	1 Wheel with 19 Gobos + Open
Beam Angle	1°
Prism System	4 Rotating Prisms: 8-facet, 3 Linear, 18-facet, 42-facet — overlapping, shifting, bi-directional rotation
Dimming	0–100% Linear Dimming
Strobe	Electronic, 1–25Hz or Pulse Adjustable
Control Protocols	DMX512, RDM, Automatic Thermal Protection Circuit
DMX Channels	16 Channels
Software Features	Upgradeable via DMX, Reset Lamp Source Time & Runtime
Display	1.8” LCD Screen with Auto Screen Lock (15 seconds standby)
Protection Rating	IP65 (Outdoor Rated)
Fixture Size	344 × 227 × 545 mm

💡 Function Highlights

IP65 Weatherproof Build: Designed to operate in rain, dust, or high humidity — perfect for outdoor installations or mobile gigs.

High-Power 50W Laser-Like Beam: Extremely narrow 1° beam delivers razor-sharp aerial effects with high brightness and contrast.

Advanced Prism System: Create stunning layered beam looks using 4 rotating prisms — overlap, shift, or counter-rotate for creative FX.

Gobo & Color Versatility: Includes 19 static gobos, a 13-color wheel, and a 6-color filter for broad visual design.

Auto Correction + Thermal Safety: XY error correction and automatic overheat protection ensure reliability even during intensive use.

DMX + RDM Control: Full 16-channel DMX support and RDM-ready for remote diagnostics and configuration.

🎯 Application Scenarios

Mobile DJs & Events: Small size, high output — perfect for DJs, clubs, and event halls.

Outdoor Light Shows: With its IP65 housing, it’s ready for open-air installations or rooftop FX.

Architectural Accent Lighting: Highlight structures or facades with precision color and beam projection.

Rental Companies: Lightweight and road-ready — durable enough for high-turnover environments.

Theme Parks & Installations: Use as a visual accent for pathways, signage, or aerial show elements.

📦 Packaging Options

Carton: 570x420x440mm，19.5kgs
