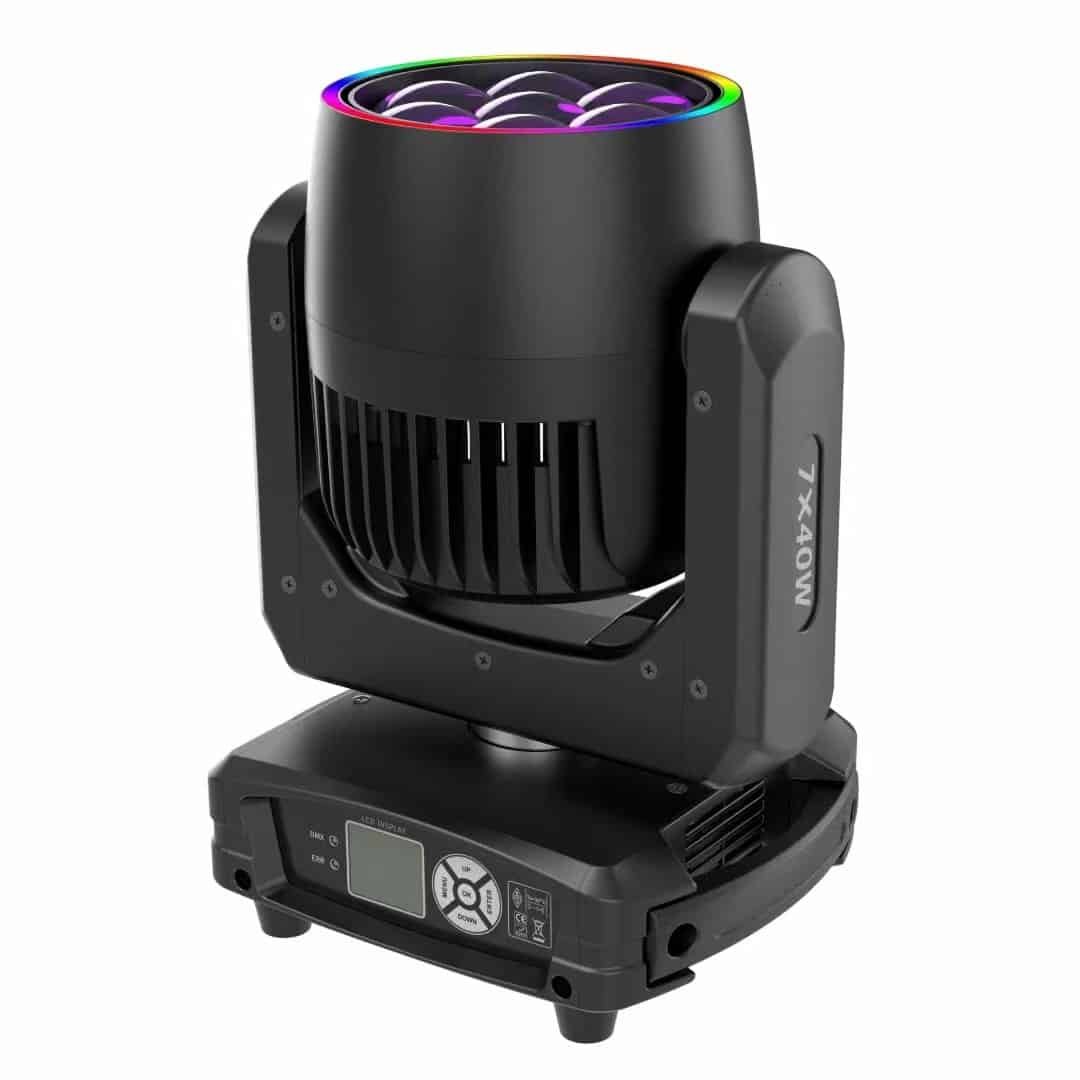

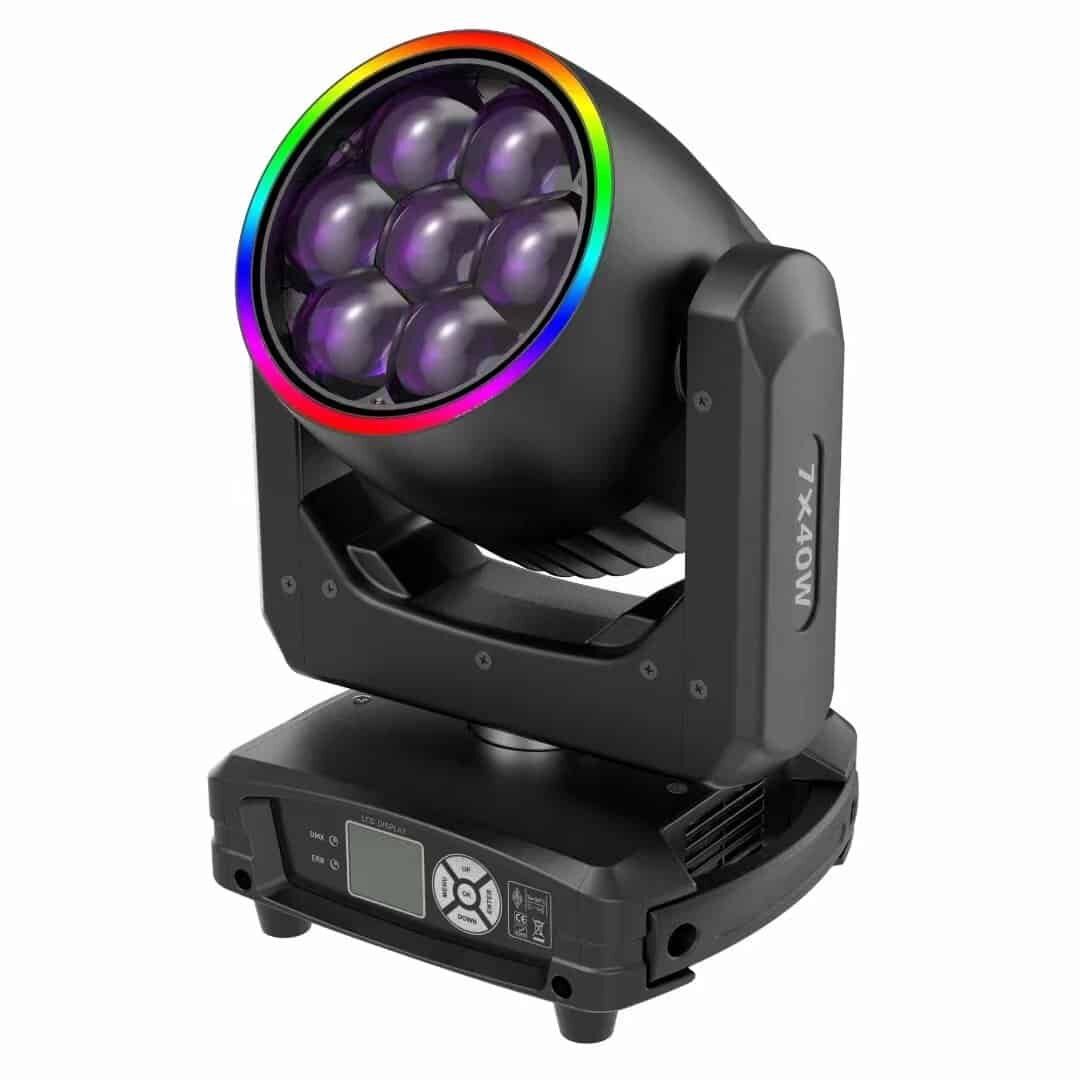

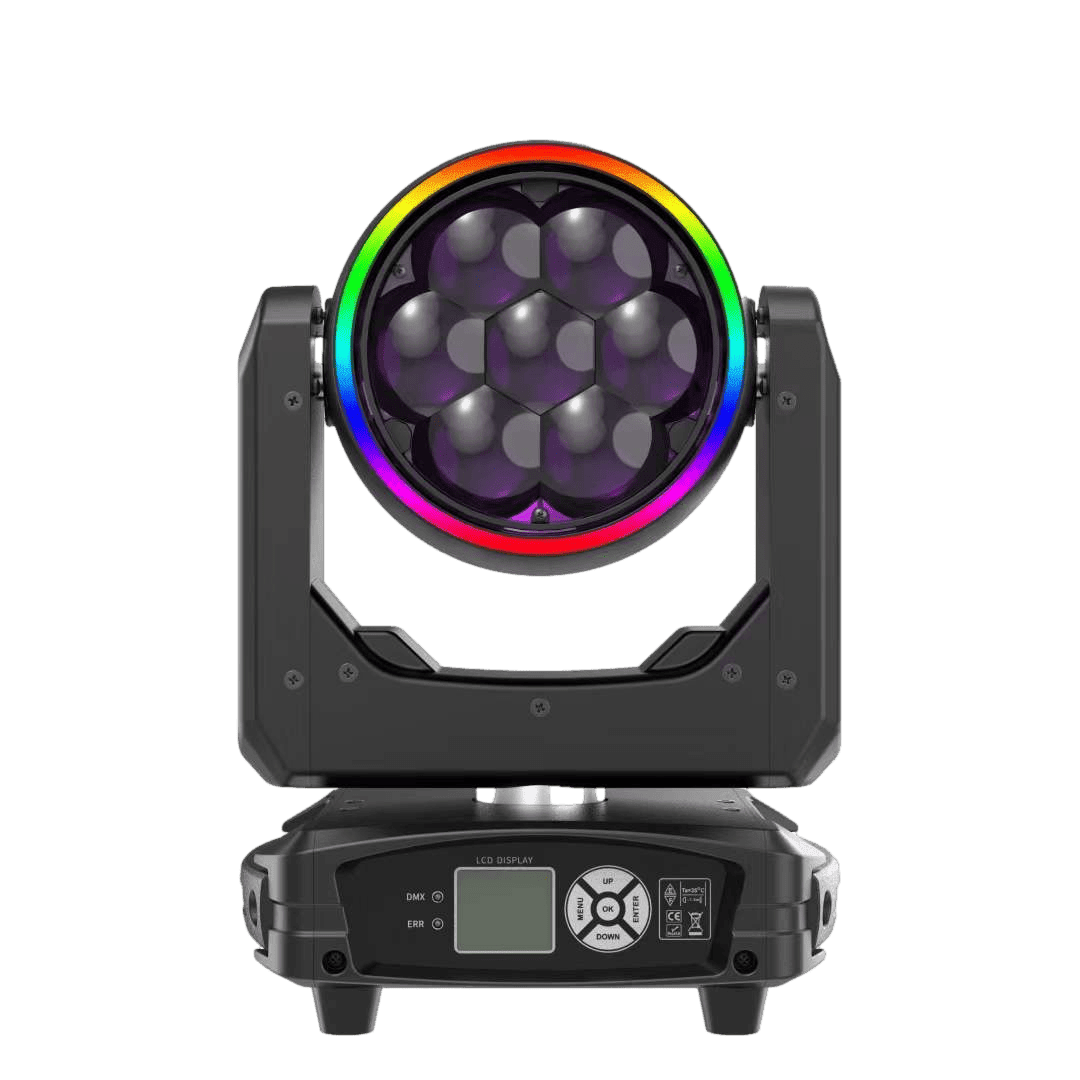

The AL0740WZ is a 7x40W LED wash moving head light designed for dynamic stage effects, pixel control, and zoom versatility. Ideal for churches, concerts, and events.
| Specification | Value |
|---|---|
| Model | AL0740WZ |
| Voltage | AC 100–240V, 50/60Hz |
| Power Consumption | 300W |
| LED Source | 7x 40W RGBW 4-in-1 LEDs |
| Beam Angle (Zoom) | 3°–60° linear motorized zoom |
| Dimmer | 0–100% smooth dimming |
| Control Protocols | DMX512 / Master-Slave |
| DMX Channels | 18CH/29CH/41CH/57CH |
| Pan Movement | 540°, 16-bit resolution |
| Tilt Movement | 270°, 16-bit resolution |
| Auto Correction | Pan & Tilt auto-correction |
| Display | LCD display |
| Pixel Control | Individual LED & ring control |
| Built-in Effects | Macro graphic effects, free mapping support |
| Connections | PowerCON in/out, 3-pin & 5-pin signal in/out |
| IP Rating | IP20 (indoor use only) |

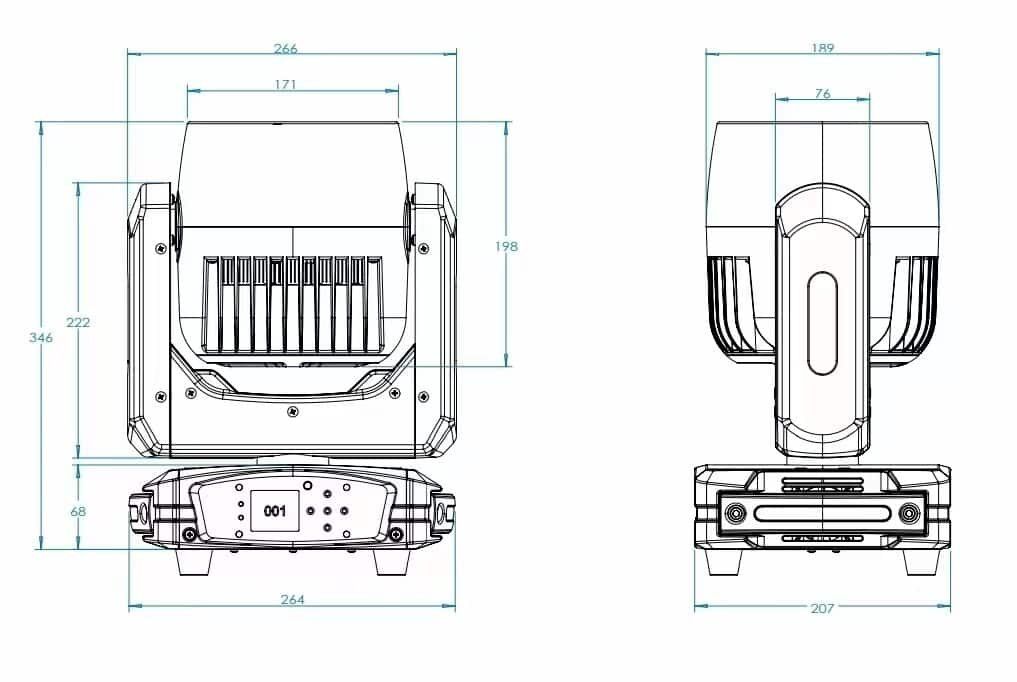

| Size | 266 × 258 × 207 mm |
| Net Weight | 6.5 kg |
High-Powered RGBW Output: Brilliant color mixing from 7x40W 4-in-1 LEDs.
Wide Zoom Range: Linear motorized zoom from 4° narrow beam to 60° wide wash.
Pixel and Ring Control: Individually map each LED and control ring effects for unique visuals.
Built-In Graphic Effects: Create dynamic shows without external programming.
Precision Pan/Tilt Movement: Smooth 540°/270° range with 16-bit resolution and auto-correction.
DMX Compatibility: Easily integrates with standard DMX consoles and master-slave systems.
The AL0740WZ is a powerful 7x40W RGBW LED Wash Moving Head Light, featuring a wide 3°–60° motorized zoom, pixel and ring control, built-in macro effects, and DMX compatibility. Ideal for professional stage, church, concert, and event lighting environments.
Concerts & Touring Stages: Delivers immersive wash and beam effects with creative flexibility.
Church Lighting: Perfect for subtle atmospheres or expressive lighting during services.
Theaters & TV Studios: Offers soft background washes and scene transitions with precision control.
Weddings & Corporate Events: Ideal for mood lighting, dance floor effects, and decor highlights.
Nightclubs & Entertainment Venues: Dynamic patterns and zoom effects enhance the music experience.
Carton 1 in 1: 46x30x38cm GW:8kgs
Flight case 4 in1: 71x50x57cm GW:60kgs
