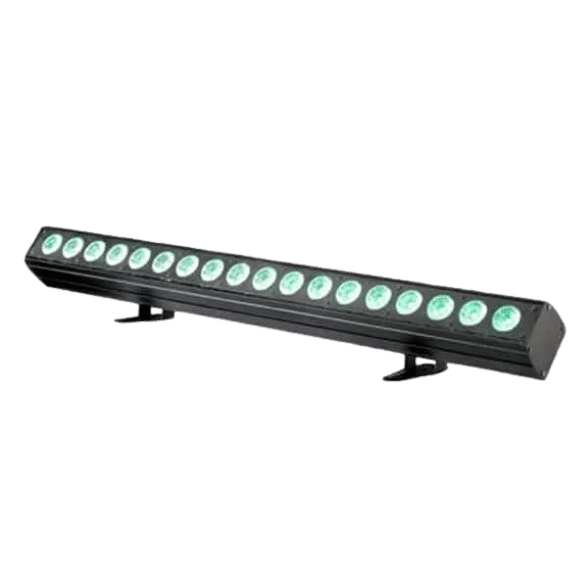

18x15W Led Wall Washer Pixel IP20 Indoor

Perfect for stage backdrops, architectural lighting, event decoration, and pixel mapping. High-power indoor LED wall washer with pixel control and DMX precision.

• 🛠️ Technical Specifications

  Specification	Value
  Rated Power	300W
  Voltage	AC100–240V, 50/60Hz
  LED Type	18x 15W 4-in-1 RGBW High-Brightness LEDs
  Beam Angle	Optional 25° / 40°
  Dimming	0–100% Smooth Dimming (PWM at 1KHz)
  Control Protocols	DMX512 / Master-Slave
  Channel Modes	CH6, CH9, CH29, CH77
  Pixel Control	Single Point, Single LED Control
  Electric Strength	1.5KV
  Working Temperature	-20°C to 40°C
  Protection Rating	IP20 (Indoor Use Only)
  Housing Material	Aluminum Alloy with Black Powder Coating
  Dimensions	1000 × 88 × 170 mm
  Net Weight	5.5 kg
  Carton Size (4 pcs)	106 × 28 × 41 cm – G.W. 24kg

💡Function Highlights

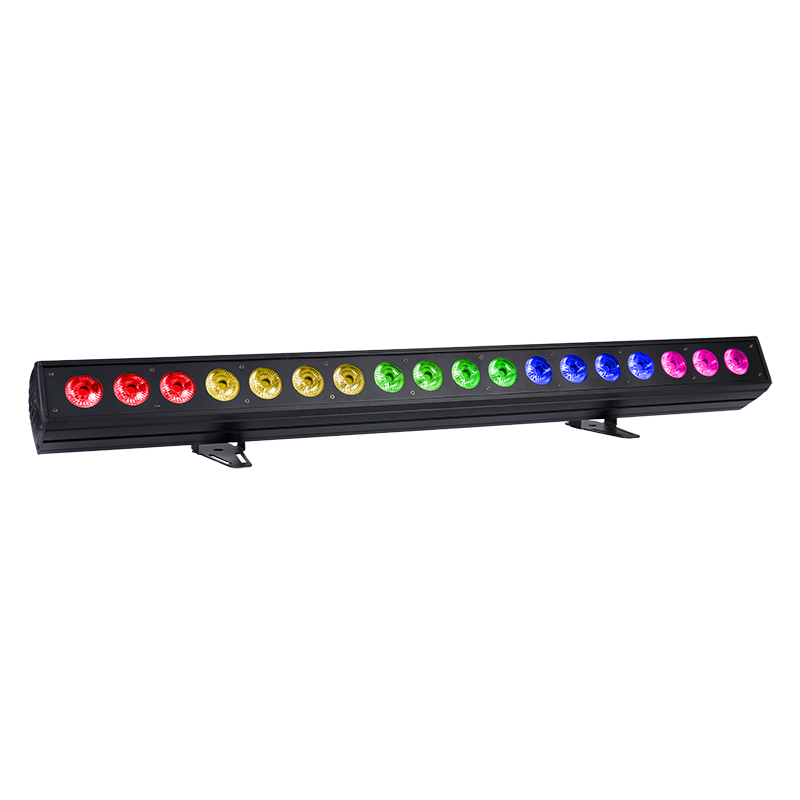

• High-Performance RGBW Output:
  Equipped with 18PCS 15W 4-in-1 RGBW LEDs, this fixture delivers stunning brightness and smooth color mixing.

• Pixel-by-Pixel Control:
  Each LED is individually controllable, allowing advanced pixel mapping, dynamic chases, and gradient effects.

• Multiple Beam Angles:
  Optional 25° or 40° beam angles for focused or wide coverage.

• Advanced DMX Compatibility:
  Choose from 6/9/29/77 DMX channels, compatible with standard DMX512 protocol and master-slave operation.

• Professional Dimming:
  Smooth 1KHz PWM dimming frequency, perfect for camera applications and silent operation.

• Robust and Compact:
  Indoor-rated IP20 aluminum body, optimized for permanent installs or mobile setups.

• Temperature Resilient:
  Reliable performance across -20℃ to 40℃ ambient temperature range.

🎯 Application Scenarios

• Stage Wash Lighting:
  Create immersive stage atmospheres with pixel-driven effects.

• Theater & Studio Backdrops:
  Consistent and soft color wash for stage walls and curtains.

• Event & Wedding Decor:
  Line walls and trusses for ambient wash or rhythm-synced color flow.

• Nightclubs & Bars:
  Add dynamic linear effects on walls, DJ booths, or dance floors.

• Architectural Accent:
  Highlight vertical surfaces, hallways, or indoor structures.

📦 Packaging Options

• Standard Package:
  4 units per carton
  Carton Size: 106×28×41 cm
  Gross Weight: 24 kg
