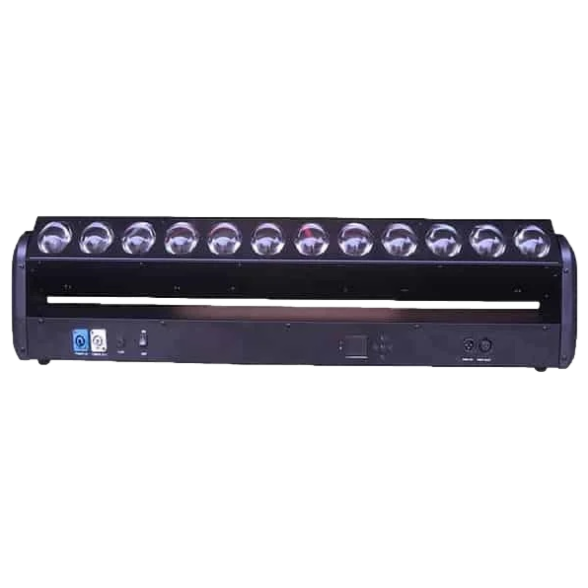

AL3012B equips 12PCS high brightness 30W LEDs, each Led pixel controller.
Thanks for 12PCS high-quality 30W Led, it’s long lifespan, a pretty strong beam effect, and RGBW infinite color mixing.
And it also built-in macro effect, with the newest design light body, a good choice for the fixed institution of entertainment venue.
| Specification | Value |
|---|---|
| Model | AL3012B |
| Voltage | AC110-240V, 50/60Hz |
| Power Consumption | 450W |
| LED Source | 12× 30W RGBW 4-in-1 LEDs |
| Beam Angle | 3° |
| Lifespan | 50,000 Hours |
| Pixel Control | Individual LED pixel control |
| Strobe | 0–20 Hz |
| Dimmer | 0–100% Linear Dimmer |
| Control Protocol | DMX-512 |
| DMX Channels | 13 / 53 CH |
| Control Modes | DMX, Auto, Sound Active |
| Cooling System | High-efficiency fan cooling |
| Dimensions | 930 × 175 × 87 mm |
| Net Weight | 7.9 kg |
Pixel Mapping: 12 individually controlled RGBW LEDs for advanced programming and dynamic effects.
Ultra-Narrow Beam: 3° beam angle for tight aerial effects and precise lines of light.
Dual Control Flexibility: Supports both basic 13CH mode and full pixel-mapped 53CH mode.
Fast Pan & Tilt Motion: Smooth, precise movement ideal for synchronized shows and visual tracking.
Strobe Effects: High-speed strobing up to 20Hz with pulse and random functions.
Sound-to-Light Mode: Auto-triggered light shows based on ambient music.
The AL3012B is a powerful 12x30W LED moving head dot bar, designed for creative lighting designers who demand sharp beams, pixel control, and versatile movement. Perfect for concerts, clubs, and professional stage productions, it delivers breathtaking linear effects and fast response in a compact form.
Concerts & Touring Events
Create dynamic beam chases, blinding strobe sweeps, or pixel effects across the stage.
Nightclubs & DJ Booths
Add a futuristic edge with pixel chases and beam waves synchronized to the beat.
Stage Productions & TV Shows
Versatile positioning and narrow beams make it a favorite for accent lighting and stage outlines.
Weddings & Corporate Events
Build architectural wall uplighting or timed lighting sequences to match event themes.
Rental & Production Companies
Lightweight and durable for fast setups and high turnover performance.
Carton 1 in 1: 1000×230×180mm GW:11kgs
