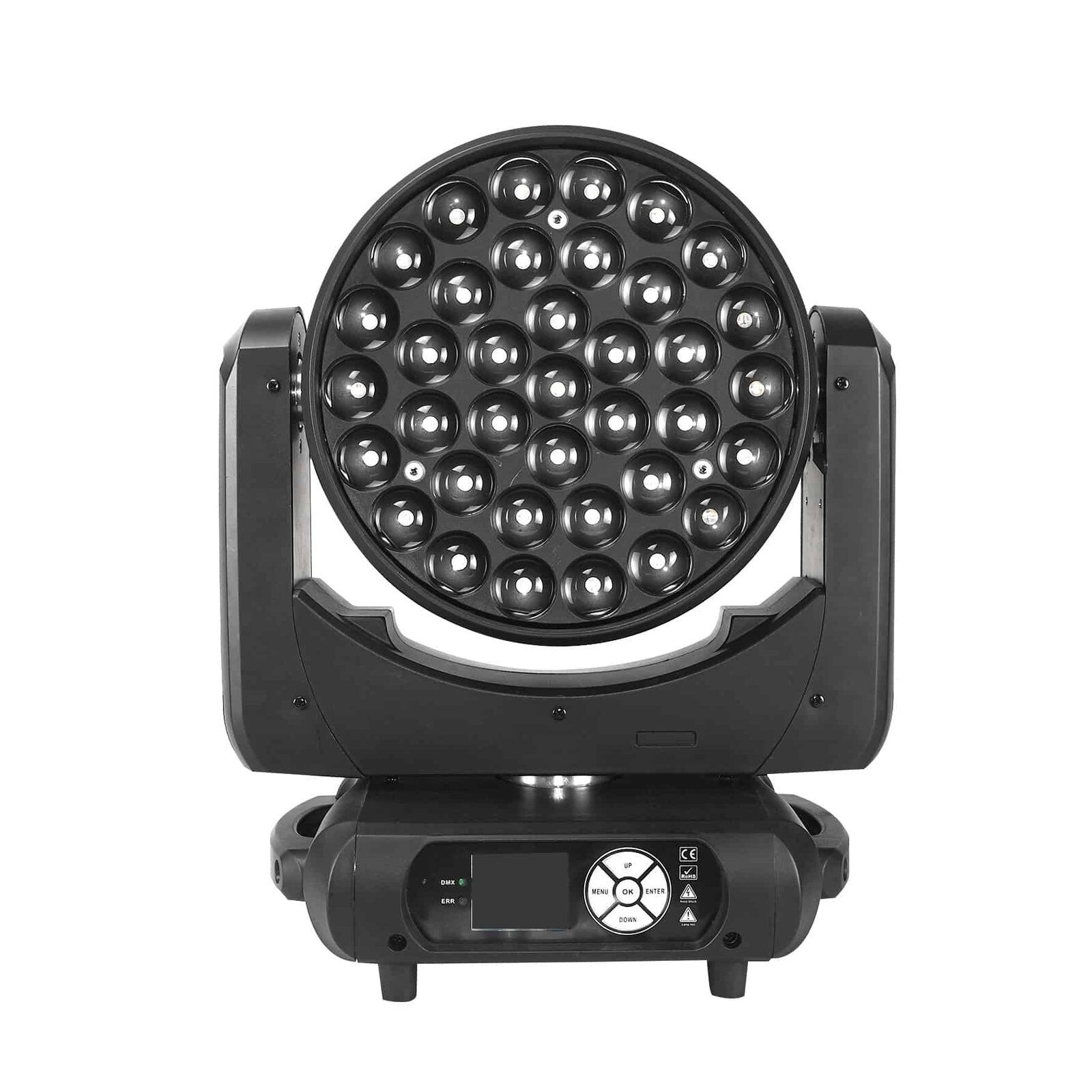

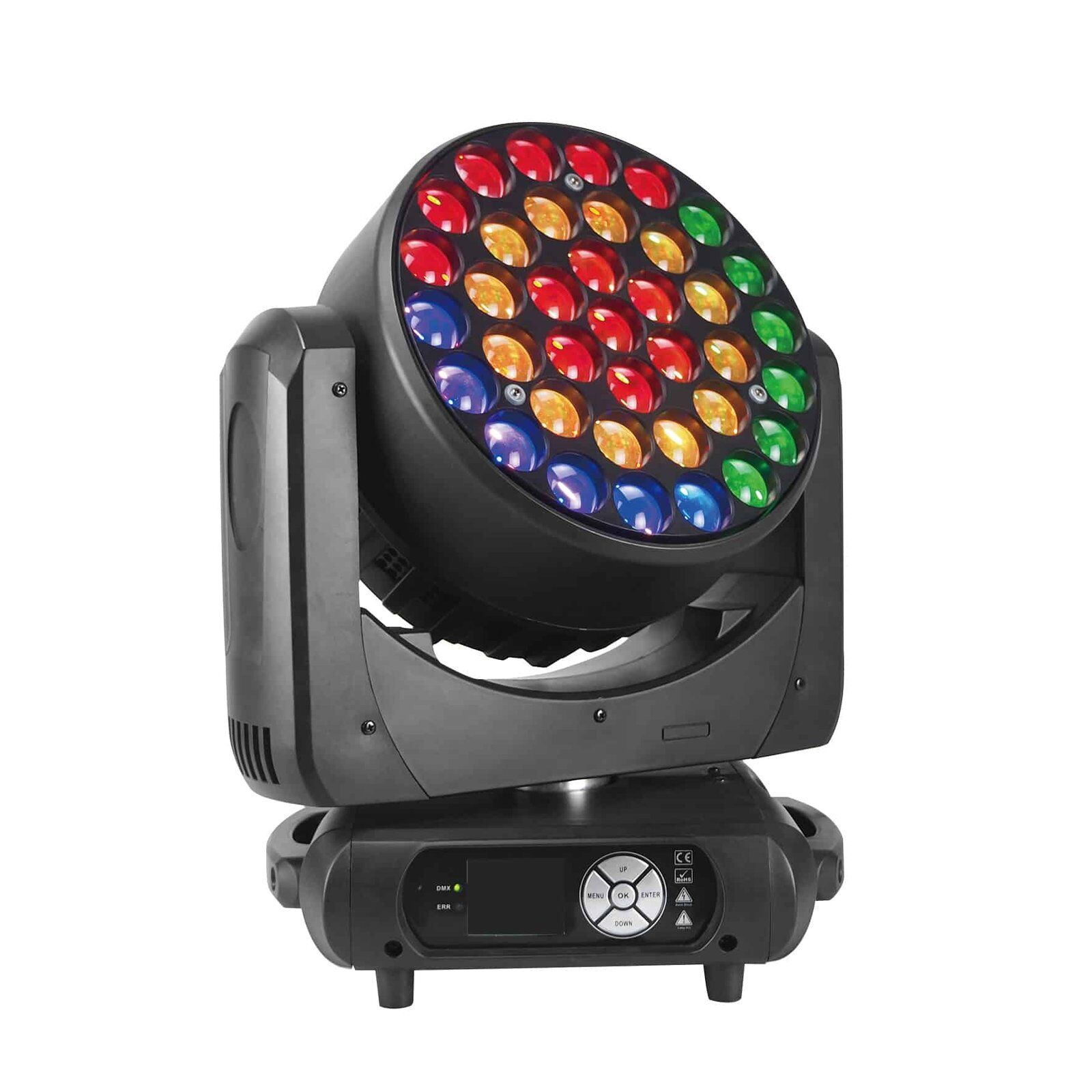

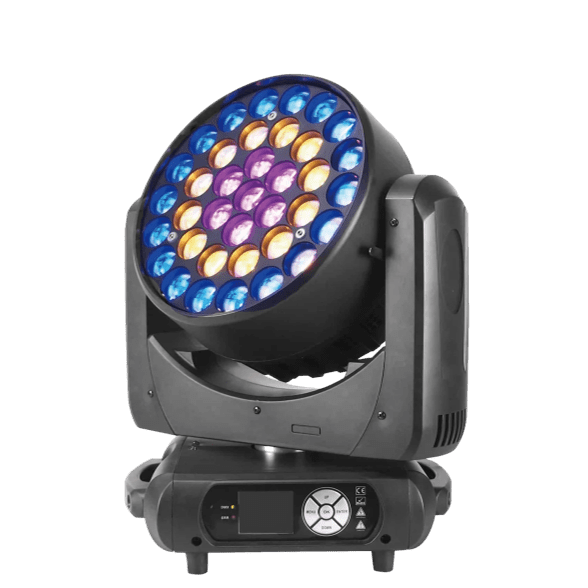

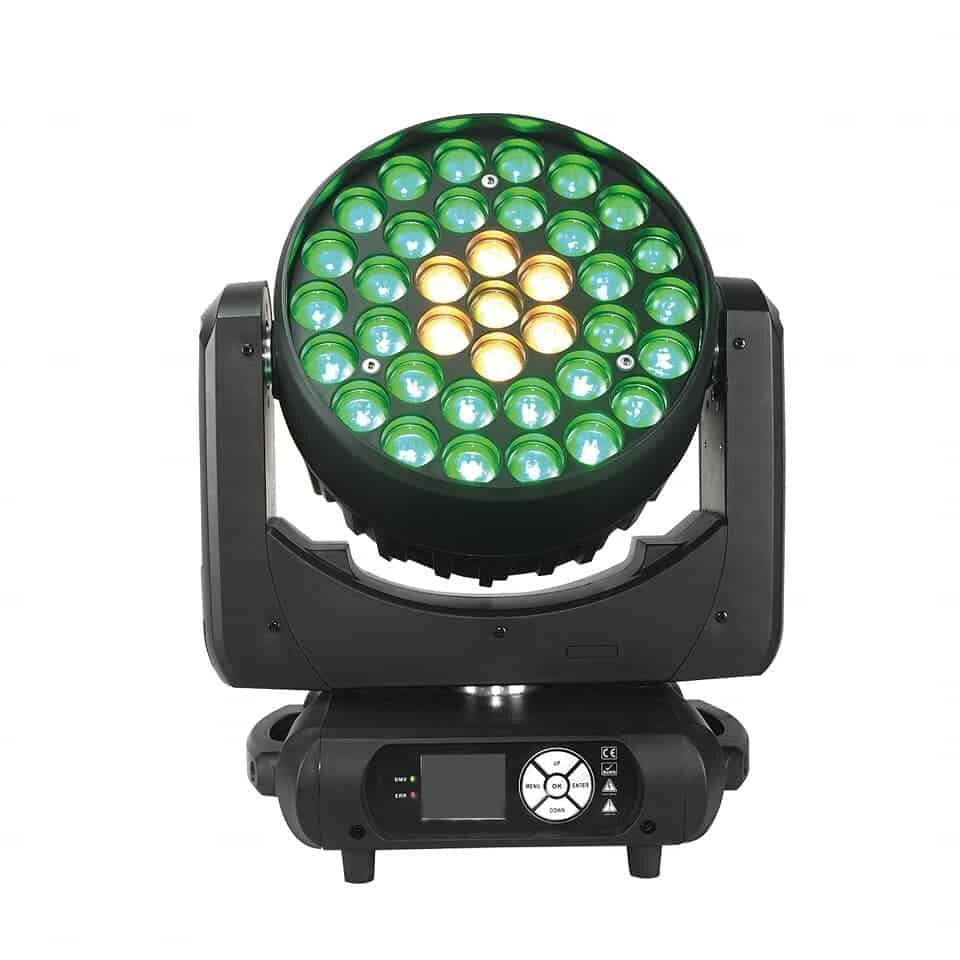

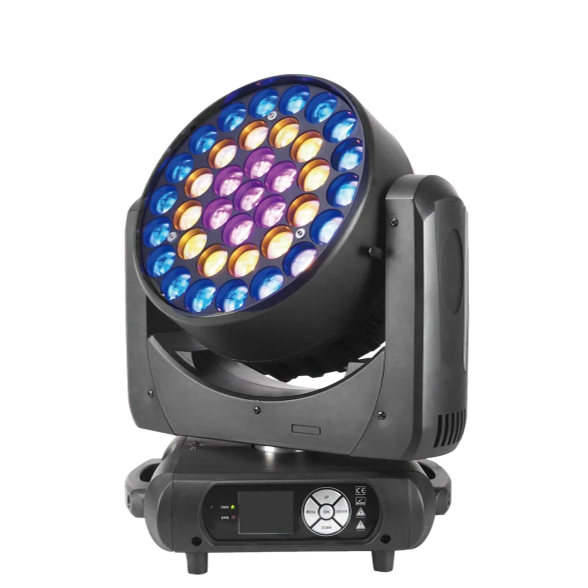

AL3715WZ is a powerful 37x15W RGBW LED moving head zoom light with advanced pixel ring effects and smooth motorized zoom, perfect for stage, event, and church lighting.
| Specification | Value |
|---|---|
| Model | AL3715WZ |
| Voltage | AC 100–240V, 50/60Hz |
| Power Consumption | 600W |
| LED Source | 37 x 15W RGBW 4-in-1 LEDs |
| Lifespan | 50,000 hours |
| Color Mix | RGBW |
| Zoom Range | 10°–50° Smooth Motorized Zoom |
| Control Modes | DMX512 / Auto / Master-Slave |
| Channel Modes | 14 / 17 / 20 / 46/48 CH |
| Dimmer | 0–100% Linear Smooth Dimming |
| Strobe | Variable Strobe Effects |
| Ring Control | Yes, with Built-in Macro Graphics |
| Pan/Tilt Range | 540° / 270° (16-bit) |
| Motor Type | 3-Phase Stepping Motor |
| Signal Connectors | 3-pin & 5-pin XLR In/Out |
| Power Connectors | PowerCon In & Out |
| IP Rating | IP20 (Indoor Use Only) |
| Dimensions | 324 x 203 x 390 mm |
| Net Weight | 15.8 kg |
High-Intensity RGBW Output: 37pcs of 15W RGBW LEDs deliver vibrant and even color mixing.
Motorized Zoom (10°–50°): Wide beam range from narrow punch to smooth washes.
Pixel Ring Control: Create stunning eye candy with programmable ring effects.
Advanced Movement: 540° pan and 270° tilt with 16-bit precision and 3-phase motors ensure smooth operation.
Versatile Control: DMX, auto, and master-slave modes with multi-channel options.
Creative Effects: Built-in macros, variable strobe, and dynamic dimming curves.
Aolait AL3715WZ is a powerful 37x15W RGBW LED Moving Head Zoom Light designed for versatile stage applications. With precision zoom from 10° to 50°, full pixel ring control, and dynamic built-in macros, it delivers vivid washes and eye-catching effects for concerts, events, and venues of all sizes.
Concert Stages & Touring: Dynamic wash and mid-air ring effects enhance live music performances.
TV Studios & Theaters: Precise zoom and silent motorized movement suit broadcast environments.
Corporate Events & Exhibitions: Colorful ambient lighting for stage wash and branding visuals.
Worship & Churches: Smooth dimming and preset effects for worship atmosphere transitions.
Clubs & DJ Venues: Eye-catching motion and pixel ring visuals on dance floors.
