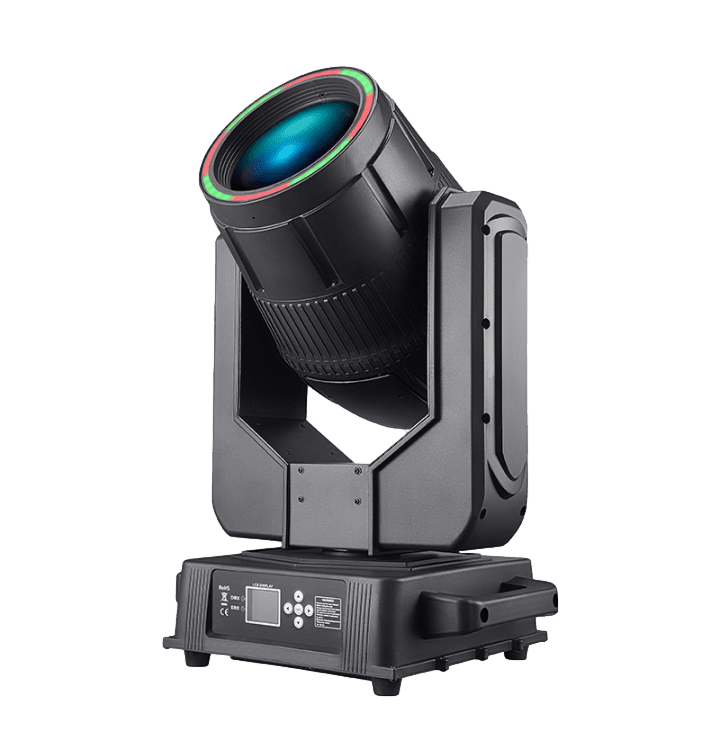

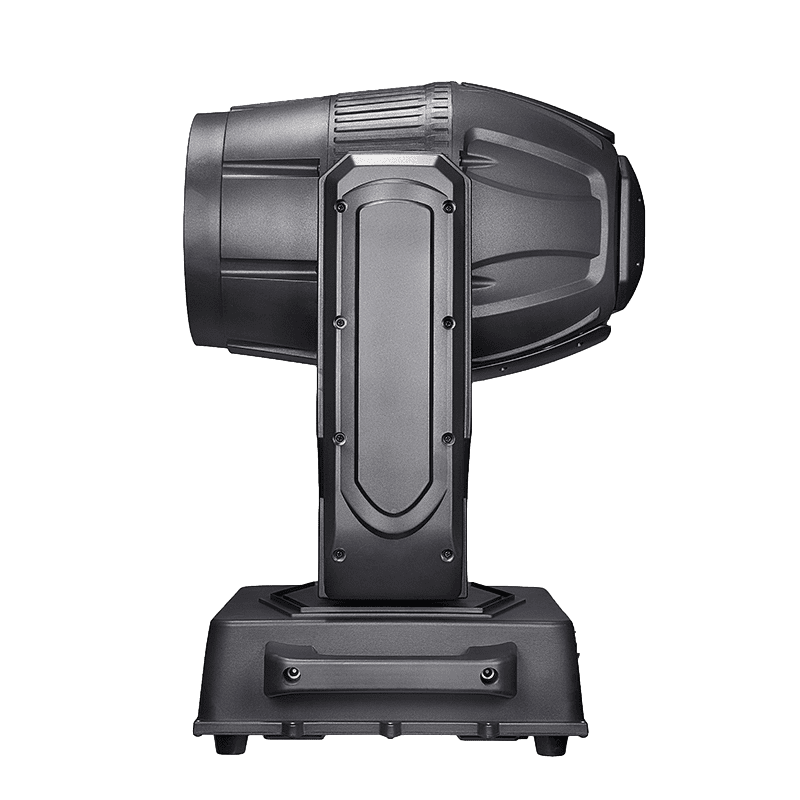

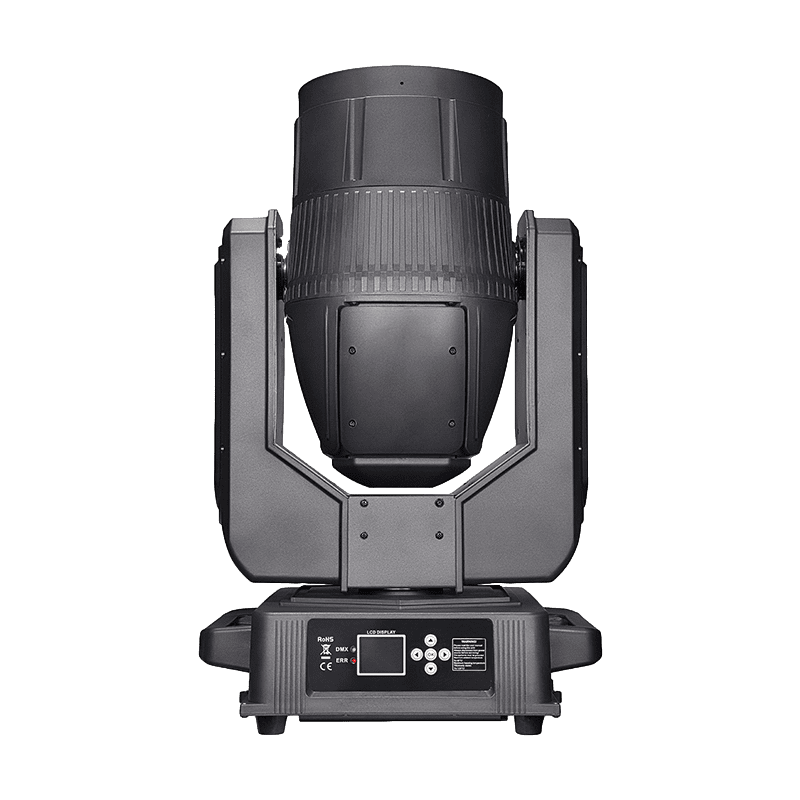

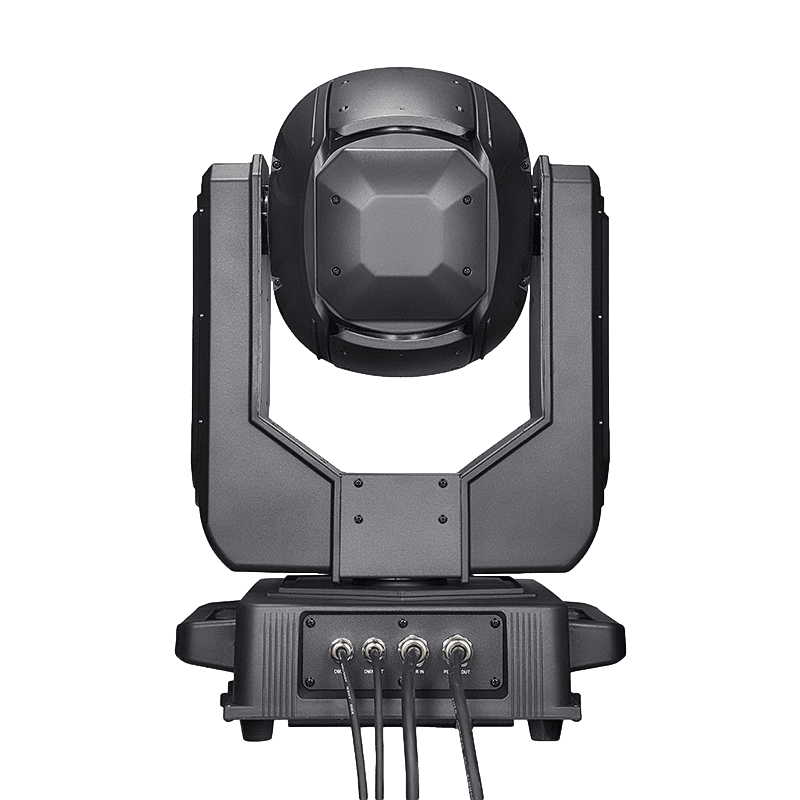

380W Mini Beam Moving Head IP65 Waterperoof

Model
AL380MBP

The AL380MBP is a compact 380W beam moving head with IP55 protection, dual rotating prisms, fixed gobos, RGB ring, and sharp 1.9° beam – optimized for mobile outdoor and club use.

Product Details:

🛠️ Technical Specifications



Specification Value
Model AL380MBP
Light Source OSRAM 371W(Optional 230W AL230MBP/350W AL350MBP)
Color Temperature 8000K
Beam Angle 1.9° – 3°
Ring LEDs 36 pcs RGB SMD5050
Lens Glass Optical Lens
Total Power 600W
Waterproof Rating IP55
Control Protocol DMX512
Pan / Tilt 540° Horizontal / 270° Vertical
Color Wheel 14 colors + white, with bidirectional rainbow effect
Gobo Wheel 17 fixed gobos + white
Prism 8-facet prism + 8+16 dual prism with rotation
Atomization 1 Frost Filter
Dimming 0–100%
Strobe 1–13 flashes/second
Focus Electronic focus
Display LCD with sensitive buttons
Housing Patented PV + fiber plastic shell
Mounting Hanging bracket included
Net Weight 20 kg
Dimensions 360 × 310 × 600 mm



💡 Function Highlights

  • Compact & Durable: Smaller body with rugged housing, designed for mobile or space-constrained setups.

  • Brilliant RGB Ring: 36 RGB SMDs around the lens for stunning eye-candy effects and ambient fills.

  • Powerful Beam Punch: Sharp 1.9°–3° beam angle from an OSRAM 371W lamp – great for mid-to-large venues.

  • Dual Prism Effects: Layer or split with 8-facet and 8+16-facet rotating prisms.

  • Outdoor-Ready: IP55 protection offers reliable operation in moderate outdoor conditions.

  • Visual Control: Full color wheel, fixed gobos, strobe, dimmer, and electronic focus for precision programming.

🎯 Application Scenarios

The AL380MBP is a compact yet powerful 380W mini beam moving head, equipped with OSRAM 371W lamp and a vibrant RGB ring. Its IP55-rated waterproof housing, dual prisms, and electronic focus make it ideal for both indoor and outdoor stages, clubs, and mobile events.

  • Small to Mid-Sized Outdoor Events
    Ideal for compact stages, rooftop parties, and pop-up events requiring weather-resistant lights.

  • DJ & Club Lighting
    Built-in ring LEDs and prism effects bring color and movement to dance floors and DJ booths.

  • Mobile Production & Rentals
    Lightweight, durable, and IP55-protected – ready for touring or rental inventory.

  • Churches & Worship Settings
    Visual performance and soft rainbow/ring effects suitable for inspiring atmospheres.

  • Live Concerts & Theme Parks
    Strong beam and gobo performance without needing a full-sized fixture.
