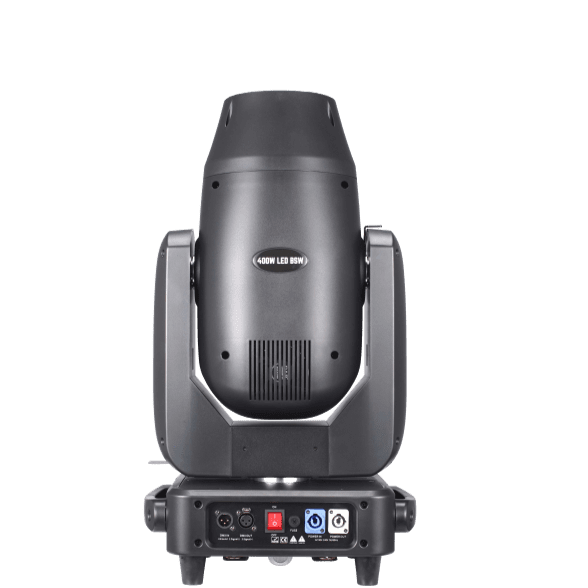

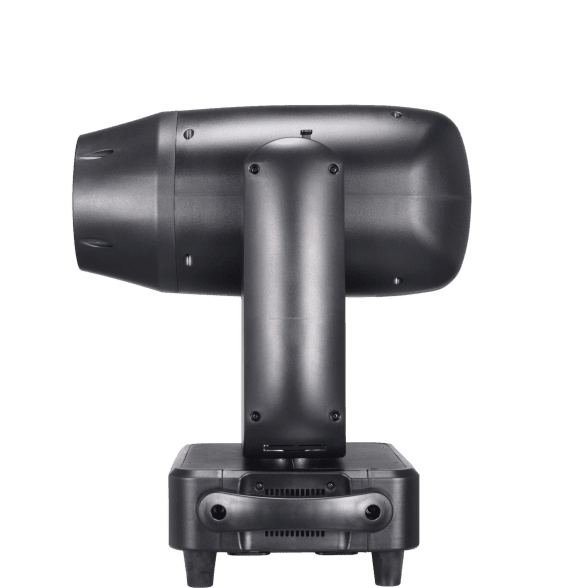

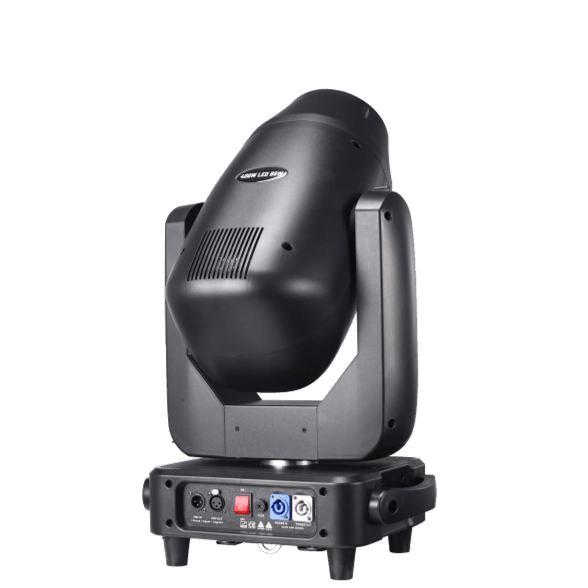

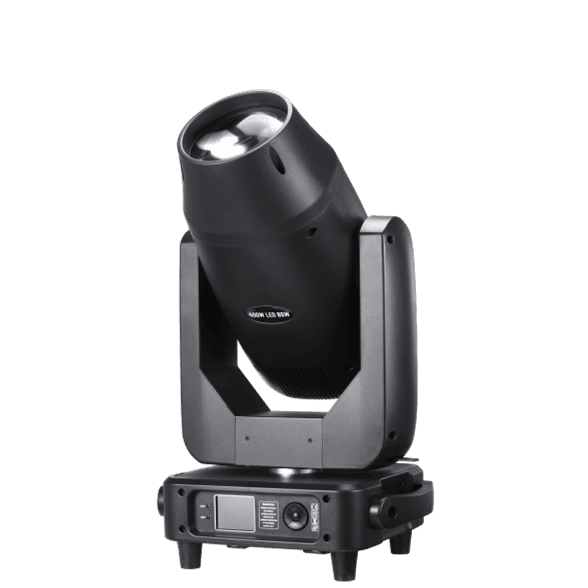

400W LED Beam Spot Wash Moving Head Light with CMY & CTO Color Mixing

400w led beam spot wash moving head
400w led beam spot wash moving head
400w led beam spot wash moving head
400w led beam spot wash moving head
Category Tags , , , , , , ,
Model
AL400LS

AL400LS is a powerful hybrid output for dynamic stage shows, events, and architectural lighting. Energy-efficient design with precise beam control, vivid colors, and smooth movements. Professional-grade durability for touring productions.

GET A QUOTE
USER MANUAL

Technical Specifications

Function Highlights

Application Scenarios

Packaging Options

Product Details:

🛠️ Technical Specifications

Specification Value
Rated Power 430W
Voltage AC110V–240V, 50/60Hz
Light Source 400W Imported LED Module
Color Temperature 8000K
CRI >95
Light Source Lifespan 50,000 hours
Dimming 0–100% Linear Dimming
Zoom (Spot) 4°–35°
Zoom (Wash) 10°–50°
Focus Linear Focus (4–50 meters)
Frost 1 Independent Filter – Soft, Natural Output
Strobe 0–30Hz with Adjustable Speed + Macros
Color Wheel 8 Colors + Open (Half-color Function)
Color Mixing CMY + CTO Linear Mixing
Fixed Gobos 12 Patterns + Open
Rotating Gobos 7 Glass Patterns (Bi-directional Rotation)
Prism System 6-facet & 8-facet Prisms (Independent Control)
Pan/Tilt 540°/270° (16-bit, Error Correction)
Control Protocols DMX512, RDM, Master-Slave, Auto Run
Channel Modes 21 / 23 CH
Display LCD + Touch/Key Dual Operation
Cooling Axial Fan + Electronic Temperature Protection
Protection Rating IP20
Working Temp Range -20°C to +40°C
Net Weight / Gross Weight 26kg

💡 Function Highlights

  • 3-in-1 Lighting Flexibility: Beam (tight aerial effects), Spot (crisp pattern projections), and Wash (soft fills) in one fixture.

  • Advanced CMY + CTO Color System: Linear color mixing for rich gradients and accurate white balance.

  • Dual Prisms & Gobos: Offers immersive mid-air effects and customizable textures.

  • High-Precision Movement: 16-bit pan/tilt with electronic error correction ensures smooth motion.

  • Strobe & Macros: Achieve high-speed flashing and built-in dynamic scenes.

  • Touch + Button Control: Intuitive and flexible user interface with LCD screen.

  • RDM & Software Upgrade Support: Easily manage, configure, and update fixtures remotely.

  • Overheat Protection: Automatic shutdown and real-time electronic monitoring for enhanced safety.

🎯 Application Scenarios

A powerful all-in-one 400W LED moving head with Beam, Spot, and Wash functions. Featuring high CRI, CMY linear color mixing, dual prisms, and advanced DMX control with RDM support. Ideal for professional stages, churches, concerts, and event productions.

  • Live Concerts & Tours: Deliver sharp beams and dynamic aerial FX on large stages.

  • Theater & Drama Lighting: Ideal for precise spotlighting and immersive scenery changes.

  • Weddings & High-End Events: Soft wash fills, colorful effects, and low noise output.

  • Church & Worship Services: Vibrant yet dignified lighting for worship and special programs.

  • TV & Broadcast Studios: Flicker-free, high CRI output for camera-perfect visuals.

  • Clubs & DJ Performances: Synchronized patterns and macro effects for energetic shows.

📦 Packaging Options

Carton 1 in 1: 61x53x46cm G W： 28kgs
