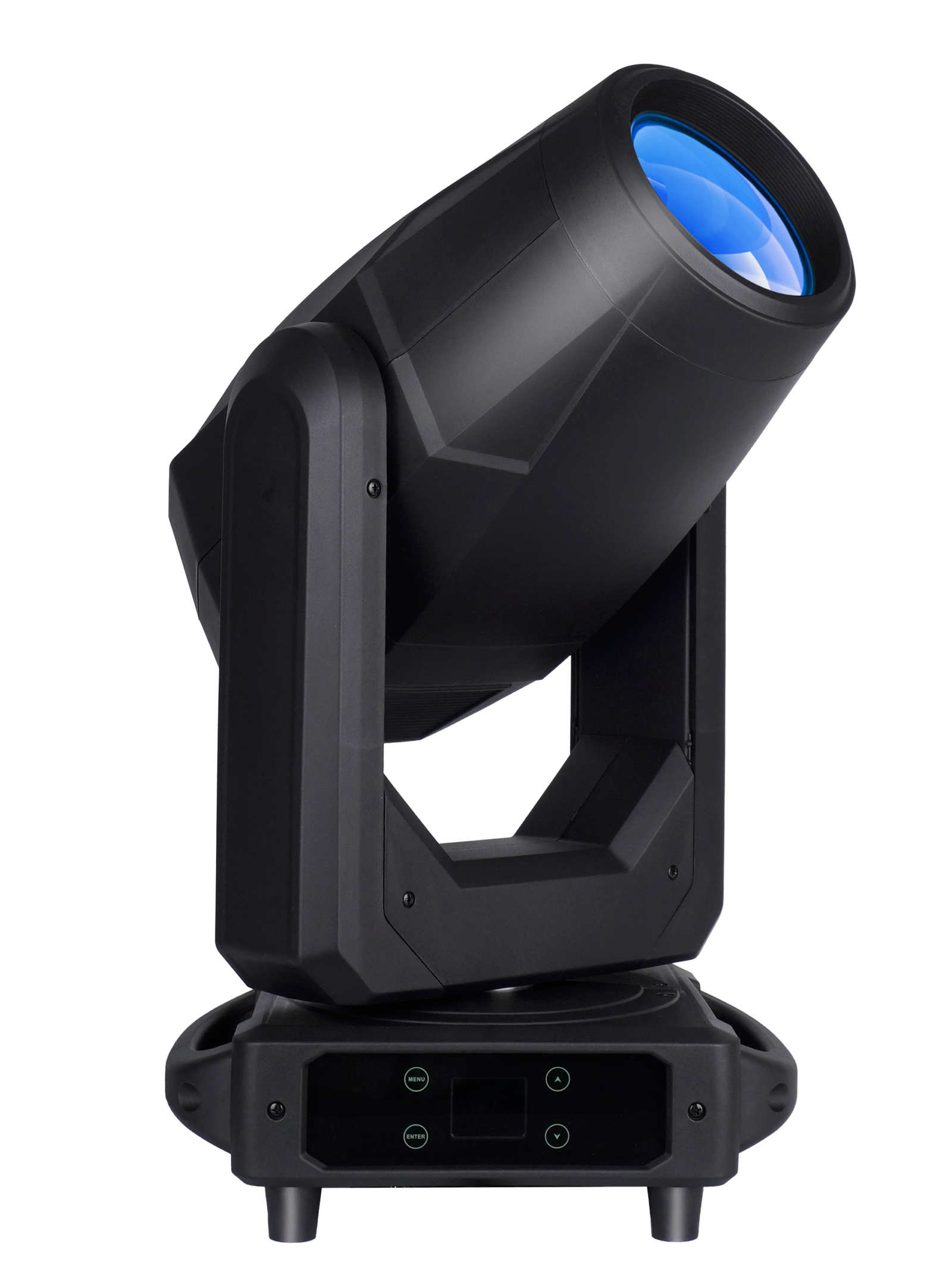

400W LED Beam Spot Wash CMY Moving Head – ALE400RX

The ALE400RX is an LED Beam Spot Wash hybrid for rigs that need narrow aerial beams, focused gobo projection and wider wash coverage from one moving head. Its published product data lists a 400W white LED module, CMY colour mixing and a 2°–40° optical range.

Verified optical and effect functions

• Colour: linear CMY mixing plus a fixed colour wheel with 11 colours.
• Gobos: one fixed wheel with 11 gobos and one rotating wheel with 7 gobos.
• Beam effects: rotatable 3-facet and 5-facet prisms, motorized focus and frost.
• Optics: 2°–40° range with a 138 mm lens, as listed on the product data.

This model is documented as a Beam Spot Wash hybrid. The available ALE400RX information does not list a framing-shutter system. If the project needs controlled four-sided beam shaping, compare the Profile and Framing Moving Head range.

Where the ALE400RX fits

Use the narrow end of the range for visible aerial effects in suitable haze and the wider end for broader stage coverage. Final selection still depends on throw distance, target field, ambient light and measurement conditions; source wattage alone does not establish output at the target.

Compare the ALE400RX with other Beam Spot Wash hybrid moving heads. For a quotation, send the venue size, throw distance, required beam and gobo effects, indoor or outdoor conditions, control system and quantity.
