Beam / Spot / Wash
A beam spot wash moving head combines three effect families in one fixture: narrow aerial beams, focused gobo or pattern projection, and wider wash coverage. Compare each 3-in-1 hybrid by its real zoom ranges, gobos, colour system and control functions before matching it to your cue list and venue.
Tell us your application, quantity and delivery country. We’ll help compare suitable models and prepare a quotation.

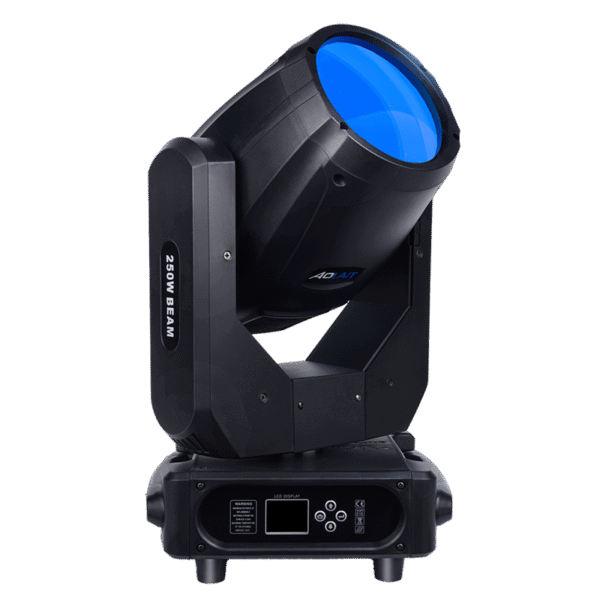

AL250RX
A 3-in-1 fixture with colour-wheel effects, gobos and separate beam and spot ranges.

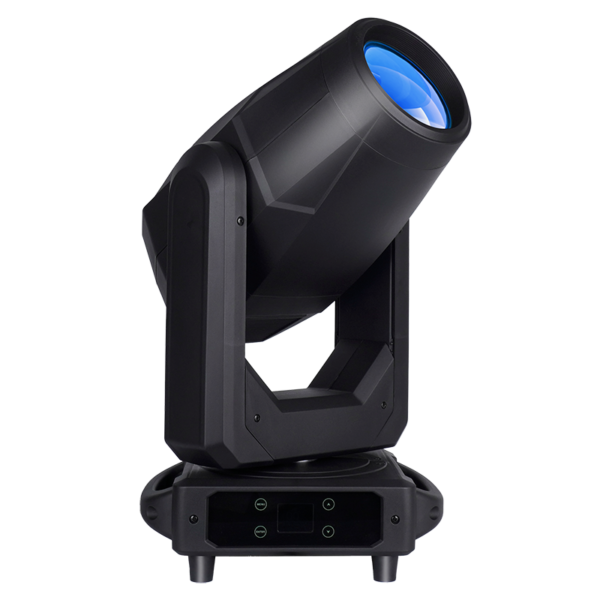

ALE400RX
Add CMY colour mixing and a broad optical range to beam, spot and wash cues.

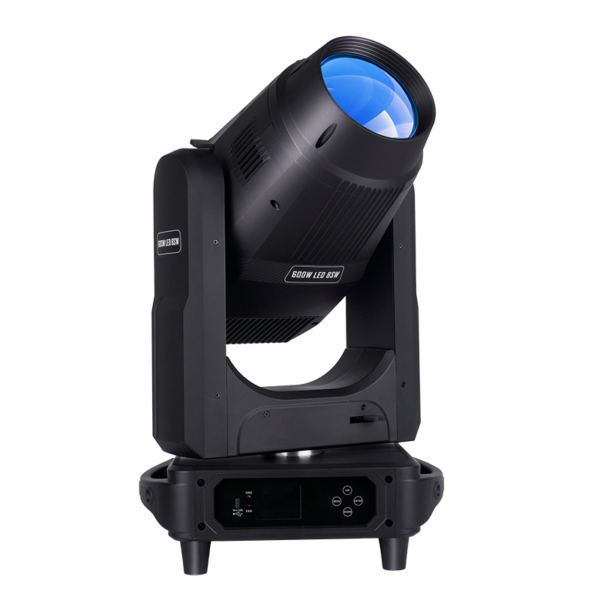

ALE600BSW
An LED option for projects that need colour mixing, white-light adjustment and layered effects.
| Fixture | LED source | Optical range | Colour system | Effects to compare |
|---|---|---|---|---|
| 250W LED 3-in-1 | 250W white LED | Beam 6°–26°; spot 10°–37° | 7 colours + open | Fixed/rotating gobos; 3-facet prism; frost |
| 400W LED BSW CMY | 400W white LED | 2°–40° zoom | CMY + colour wheel | Fixed/rotating gobos; 3/5-facet prisms; frost |
| 600W LED BSW CMY | 600W LED module | 3.5°–50° zoom | CMY + CTO + colour wheel | Dual gobo wheels and dual prisms |
Compare the optical range and effects against your cue list. Source wattage alone does not describe the light level at your stage.
Need an outdoor hybrid? Review the 600W IP66 LED Beam Spot Wash. For a lamp option, see the 280W Beam Spot Wash Hybrid Moving Head.
A standard Beam Spot Wash hybrid can create aerial beams, projected gobos and softer wash looks, but the BSW or 3-in-1 name does not mean it has framing shutters. Choose a Profile or Framing moving head when the brief requires controlled four-sided shapes, scenic masking or precise light placement.
| Application | Functions to confirm | Category to review |
|---|---|---|
| Aerial effects and pattern projection | Beam and spot ranges, motorized focus, fixed and rotating gobos, prism | Beam Spot Wash 3-in-1 hybrid |
| Colour-rich rental or event cues | CMY or colour wheel, zoom range, frost, repeatable DMX modes | CMY BSW hybrid |
| Outdoor exposed use | Published IP rating, installation limits, optical range and control | IP-rated hybrid model |
| Shaped key areas or scenic masking | Framing blades, module rotation, zoom, focus and colour control | Profile / Framing moving head |
Confirm the photometric test distance and beam angle when comparing output. Source wattage alone is not a measure of stage illuminance or throw distance.
Start with AL250RX for colour-wheel and gobo cues, ALE400RX when variable CMY colour mixing is important, or ALE600BSW when the brief also calls for CTO and its wider published zoom range. Send the throw distance and target size before deciding on output. For exposed outdoor use, review the IP66 model linked above; for shaped acting areas or screen masking, choose a verified framing model.
These are AOLAIT’s model demonstrations. Video exposure, haze and camera settings affect the appearance; use illuminance data at a stated distance and angle to assess your actual throw. Include any missing photometric data or current manual you need in the enquiry.
Choose the colour system and gobo effects that recur across your jobs. Compare lens range, fixture size and control modes before planning the rig.
Use gobos for scenery and patterned projection, with frost and wash effects for softer scenes. Check the required focus and zoom at your actual throw.
Combine aerial beam looks with gobo and colour changes. Include logo projection requirements and console details in your enquiry.
BSW means beam, spot and wash. A hybrid fixture combines these functions, with the exact optical range, colour system and effects depending on the model.
A colour wheel provides a set of colours and transition effects. CMY adds variable subtractive colour mixing; CTO is useful when the fixture offers white-light colour-temperature adjustment. Choose the system that matches your programmed looks.
Do not assume an outdoor rating from the hybrid designation. For exposed outdoor use, compare a specifically rated fixture such as the 600W IP66 LED Beam Spot Wash and confirm the installation conditions.
Your enquiry gives us the basis to recommend suitable models, quote for your quantity, confirm packaging choices and calculate transport options for your delivery country. A model number is optional: write “model undecided” if you need selection help.
Tell us if you need a sample before a larger order. Sample availability and cost, spare-parts support, warranty terms and production lead time need confirmation for the selected model and quantity. Include your required arrival date so production and transport can be checked together.
Include in your message: application or project type; quantity or sample request; delivery country; required arrival date. If known, add throw distance, target size and indoor or outdoor conditions.
